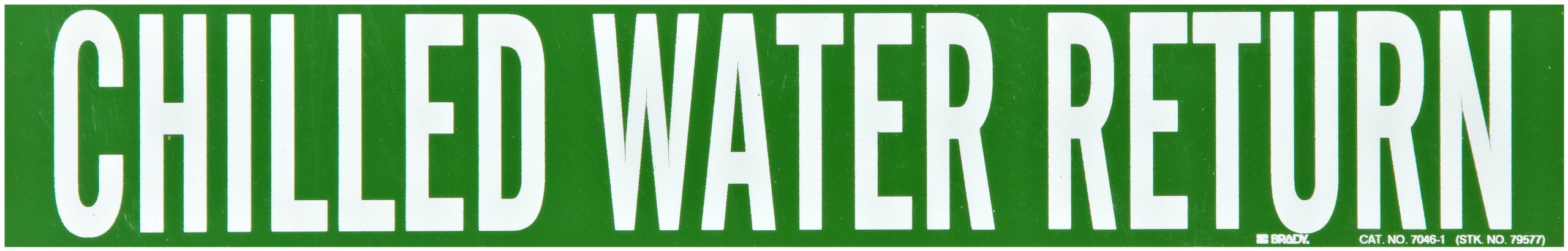

Brady 7046-1 2-1/4" Height, 14" Width, B-946 High Performance Vinyl, White On Green Color Self-Sticking Vinyl Pipe Marker, Legend "Chilled Water Return"

Be the first to review this item


Specifications for this item
Number of Items
Overall Height
2-1/4  inches
Overall Width
14  inches
Material Type
Outside Diameter
2-1/2 - 7-7/8  inches
Part Number
Temperature Range
-40/82  Degrees Celsius
Brand Name
Marking Color
Manufacturer Series Number
LowerTemperature Range
-18  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Mar 30? Order in-stock items in the next 1 day 11 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
  • Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction
  • Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
  • Markers meet the requirements of the ASME (ANSI) A13.1 standard for the identification of piping system contents when used with directional flow arrow tape
  • Average outdoor durability is 8-10 years (average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color)

Package Details

Shipping Weight: 0.05 pounds
Package Size: 15.4 x 3 x 0.1 inches

Product Description

Brady 79577/7046-1 self-sticking vinyl pipe markers legend is "CHILLED WATER RETURN" with white on green color, product size is 2-1/4" height, 14" width. Character height is 2". Outside pipe diameter is 2-1/2" to 7-7/8". Brady B-946 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product, It's used for pipemarkers, arrow tape, numbers and letters, vehicle placards, pedestal markers, warning panels and safety signs. Vinyl film substrate, Standard material colors are white, red, yellow, green, blue and orange. Standard legend colors are black, blue, red, green, white, yellow, orange and magenta. Properties of adhesive are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (average) 80 ounce/inch (87.5 N/100mm), Ultimate Dwell to stainless steel (72 hours) (average) 85 ounce/inch (93 N/100mm), 15 minute dwell to polypropylene (average) 60 ounce/inch (65 N/100mm), ultimate dwell to polypropylene (72 hours) (average) 69 ounce/inch (75 N/100mm), 5 minute dwell to powder coated metal (average)-60 ounce/inch (65 N/100mm), ultimate dwell to powder coated metal (72 hours) (average)-75 ounce/inch (82 N/100mm). CS 10 wheels, 250g Weight and legend withstands up to 350 cycles abrasion resistance (method 5306 of U.S. federal test method Standard no. 191A), 60 degree 50 gardner units. Minimum application temperature is -18 degree celsius. Service temperature is -40 degree celsius to 82 degree celsius.
