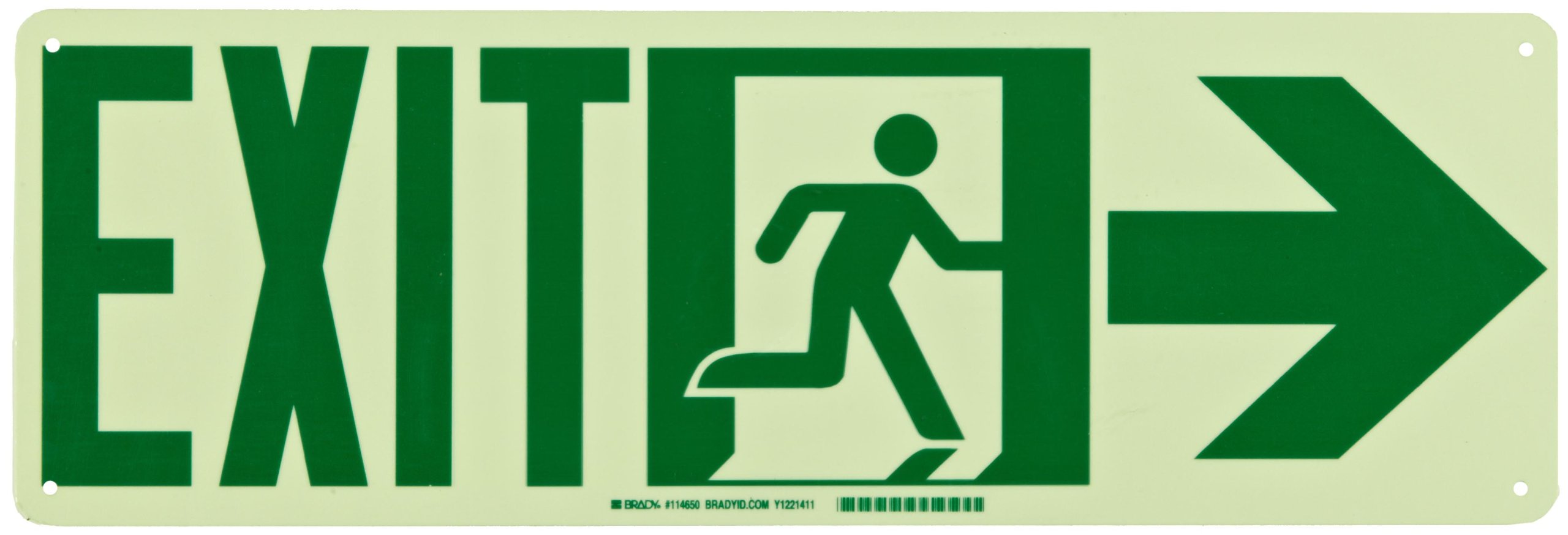

Brady 114651 BradyGlo 7" Height, 21" Width, B-986 High Intensity Aluminum, Green And Phosphorescent Color Egress Sign, Legend "Exit With Running Man - Arrow Right"

Be the first to review this item

ASIN B003XU7UPC

Product Specifications
Part Number
114651
Material Type
Aluminum
Number of Items
1
EAN
0754473176952
Manufacturer Series Number
114651
Overall Height
7  inches
Overall Width
21  inches
Temperature Range
-40/175  Degrees Fahrenheit
UPC
754473176952
Specification for this product family (See all  products)
Color Name
Green/Phosphorescent
UNSPSC Code
55121704
Size Name
7" H x 21" W
Brand Name
Brady

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 7 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Brady B-985 BradyGlo material is a glow-in-the-dark (photoluminescent) safety guidance sign
  • Brady B-986 is a non-toxic, non-radioactive, explosion safe (does not generate energy to induce explosions), material allowing for sanitary disposal
  • These exit signs offer directional guidance to exits or exit passageways
  • Use the appropriate arrows to indicate direction of travel to intermediate doors, corridors, or stairwell exits where the fastest egress direction is unclear
  • Bradyglo photoluminescent signs provide a bright, long-lasting afterglow during a lights-out evacuation; maximum charge is achieved in two hours with 2 foot-candles of bright white light

Package Details

Shipping Weight: 0.9 pounds
Package Size: 20.4 x 6.9 x 0.4 inches

Product Description

Brady B-986 bradyglo metal sign material is used for exit and directional signs, identification of fire alarms and extinguishers, stairwell identification sign and directional systems for escape or evacuations routes. In accordance with ASTM 2030-99: recommended uses of photoluminescent safety markings. 1 Foot candles (11lux) of fluorescent illumination for 60 minutes, and the minimum luminance shall be 30 milicandelas per square meter at 10 minutes and 5 milicandelas per square meter after 90 minutes. Exit enclosures where photoluminescent exit path markings are installed shall be provided with the minimum means of egress illumination, for at least 60 minutes prior to periods when the building is occupied. Substrate type is photoluminescent polyester film on aluminum. Standard legend colors are black, green and red. Relevant Standards are meets or exceeds the following standards are IBC 2009, IFC 2009, NFPA 101-2009, NFPA 170-2009, ASTM E2073, UL 1994. Abrasion Resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A):CS-10 Wheels, 250 gram weight. Legend withstands up to 250 cycles CS-17 Wheels, 1000g wts. Substrate withstands up to 4000 cycles. Gloss (ASTM D523) is 60 - 116 degree gloss units. Average of expected service life of printed legend is 5 years, Not recommended for outdoor application. Legend is "EXIT (WITH RUNNING MAN - ARROW RIGHT)". Measures 21" Width by 7" Height, color is green and Phosphorescent.
