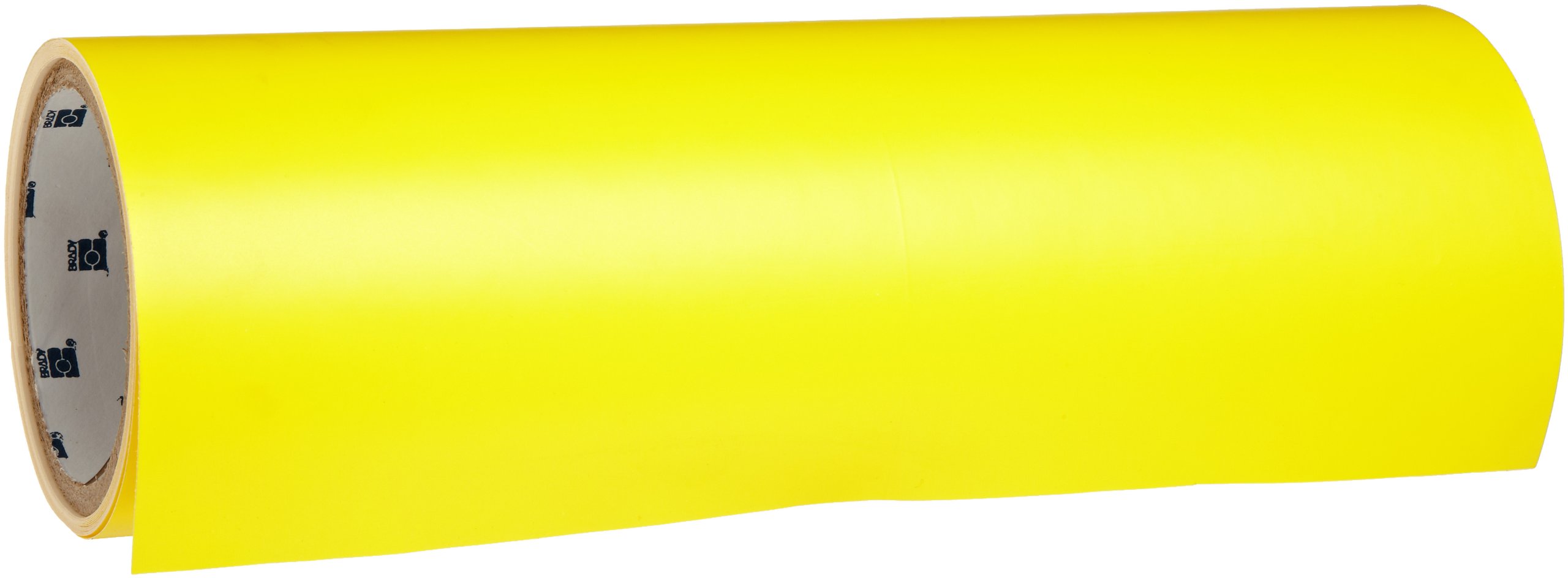

Brady 113247 12' Length, 12" Width B-933 Vinyl Yellow Shadow Vinyl Rolls

Be the first to review this item

ASIN B003XU7U16

Specifications for this item
Number of Items
1
Overall Height
12  inches
Overall Width
12  inches
Material Type
Flexible Vinyl Film with Pressure Sensitive Adhesive (B-933)
Part Number
113247
Temperature Range
-40/93  Degrees Celsius
UPC
754473176228
Brand Name
Brady
Size Name
12" x 12"
EAN
0754473176228
UNSPSC Code
55121704
Overall Length
12  feet
LowerTemperature Range
10  Degrees Celsius

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • This workbench marking supply allows you to quickly and easily create tool shadows to exact size and shape
  • Simply place the tool or object over the vinyl, trace the outline, cut and apply to workplace surface
  • Brady B-933 is a flexible film with a pressure sensitive acrylic adhesive used for quik-align numbers and letters, instalign numbers and letters and floor marking dots
  • Average outdoor durability is 2-4 years (Average expected outdoor life of product will depend on user definition of failure and climatic conditions)

Package Details

Shipping Weight: 1.25 pounds
Package Size: 12.7 x 4.6 x 4.1 inches

Product Description

Brady 113247 12" yellow shadow vinyl rolls, B-933 vinyl, measures 12' length by 12" width. Adhesive type is pressure sensitive acrylic. Substrate type is vinyl film. Standard material colors are white, black, yellow. Tensile strength (PSTC-31) is 14 lb/in. (250 N/100 millimeters). Elongation (PSTC-31) is 120 percent. Adhesive properties are adhesion to steel (PSTC-1), 15 minute dwell (average) - 55 oz/in. (60 N/100 millimeters), ultimate dwell (72 hours) (average) - 100 oz/in. (109 N/100 millimeters), tack (ASTM D 2979) (average) - 400 g (4 N), drop shear (PSTC-7) (average) - 24 hours. Abrasion resistance (method 5306 of U.S. federal test method standard number 191A) is CS-17 wheels, 1000 g weights, substrate withstood up to 4000 cycles. Gloss is 6 gardner units.
