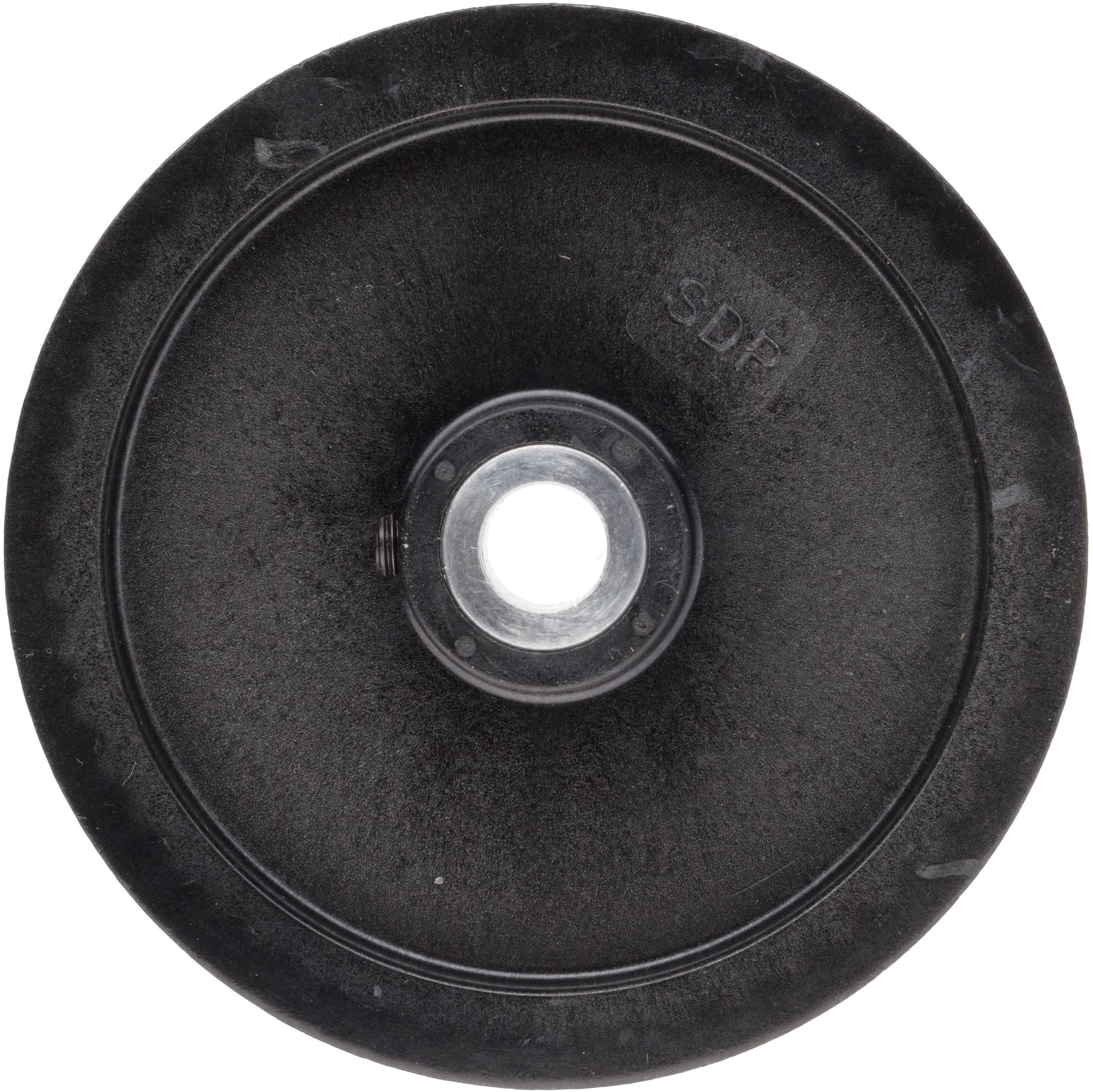

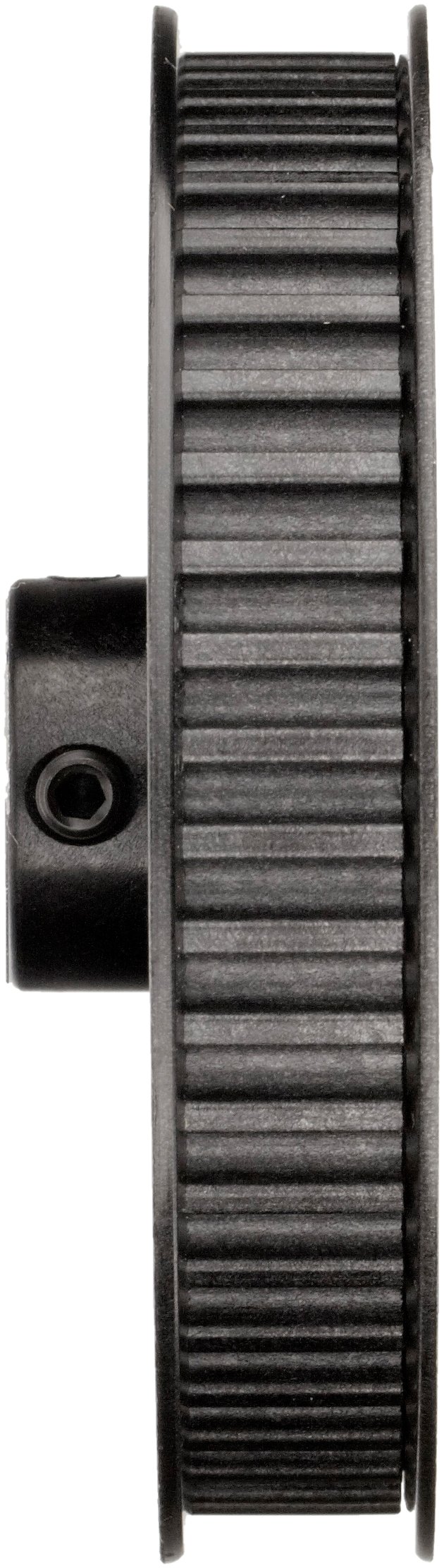

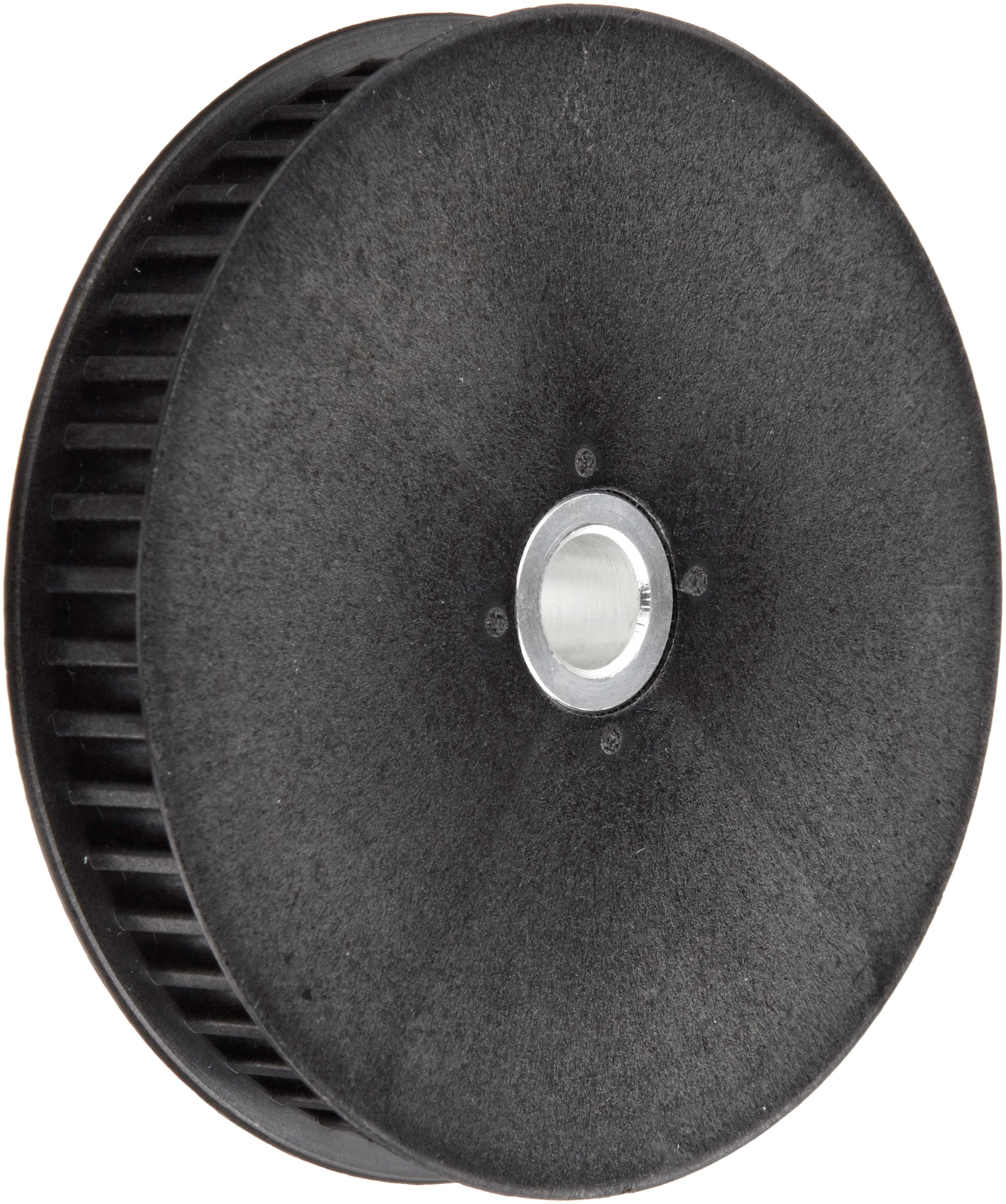

Boston Gear Timing Pulley, 9 mm Wide Belts, 0.375" Bore Diameter, Lexan with Aluminum Insert

Be the first to review this item

Product Specifications
UNSPSC Code
26111807
Brand Name
Boston Gear

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 2 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 35 Next 15 »
Outside diameter Item pitch string Size name Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 35 Next 15 »
0.895 inches 5 millimeters 0.813" Overall Length, 15 Grooves PLB5015DF095/16 B004NYA4UK yes $14.41 Buy Options
0.910 inches 3 millimeters 0.813" Overall Length, 25 Grooves PLB3025DF093/8 B004NYA4BE yes $16.24 Buy Options
0.910 inches 3 millimeters 0.813" Overall Length, 25 Grooves PLB3025SF093/8 B004NYA4C8 yes $15.33 Buy Options
0.958 inches 5 millimeters 0.813" Overall Length, 16 Grooves PLB5017DF091/4 B004NYA4VO yes $15.17 Buy Options
1.020 inches 5 millimeters 0.813" Overall Length, 17 Grooves PLB5017SF091/4 B004NYA4WI yes $4.40 Buy Options
1.020 inches 5 millimeters 0.813" Overall Length, 17 Grooves PLB5018DF091/4 B004NYA4XC yes $14.88 Buy Options
1.023 inches 3 millimeters 0.813" Overall Length, 28 Grooves PLB3028DF093/8 B004NYA4DC yes $17.97 Buy Options
1.023 inches 3 millimeters 0.813" Overall Length, 28 Grooves PLB3028SF093/8 B004NYA4E6 yes $15.79 Buy Options
1.083 inches 5 millimeters 0.813" Overall Length, 18 Grooves PLB5018SF091/4 B004NYA4Y6 yes $13.92 Buy Options
1.083 inches 5 millimeters 0.813" Overall Length, 18 Grooves PLB5019DF091/4 B004NYA504 yes $14.88 Buy Options
1.146 inches 5 millimeters 0.813" Overall Length, 19 Grooves PLB5019SF093/8 B004NYA2NE yes $13.73 Buy Options
1.173 inches 3 millimeters 0.813" Overall Length, 32 Grooves PLB3032DF093/8 B004NYA4FA yes $18.06 Buy Options
1.173 inches 3 millimeters 0.813" Overall Length, 32 Grooves PLB3032SF093/8 B004NYA4G4 yes $6.57 Buy Options
1.208 inches 5 millimeters 0.813" Overall Length, 20 Grooves PLB5020DF093/8 B004NYA2V6 yes $15.44 Buy Options
1.323 inches 3 millimeters 0.813" Overall Length, 36 Grooves PLB3036SF093/8 B004NYA4I2 yes $5.43 Buy Options
1.334 inches 5 millimeters 0.813" Overall Length, 22 Grooves PLB5022DF093/8 B004NYA2WA yes $15.91 Buy Options
1.474 inches 3 millimeters 0.813" Overall Length, 40 Grooves PLB3040DF093/8 B004NYA4IW yes $20.82 Buy Options
1.474 inches 3 millimeters 0.813" Overall Length, 40 Grooves PLB3040SF093/8 B004NYA4JQ yes $19.33 Buy Options
1.521 inches 5 millimeters 0.813" Overall Length, 25 Grooves PLB5025DF093/8 B004NYA2X4 yes $6.44 Buy Options
1.521 inches 5 millimeters 0.813" Overall Length, 25 Grooves PLB5025SF093/8 B004NYA2Q6 yes $15.36 Buy Options

Key Features

  • Grooved design for applications requiring synchronous rotation
  • Fiberglass-reinforced polycarbonate resin thermoplastic for light weight and low noise
  • For use with same-pitch curvilinear tooth belts
  • Stock bore with 0.375" diameter does not require use of a bushing

Product Description

This Boston Gear PLB series timing pulley has either a 3 mm or 5 mm pitch, and is suitable for use with 9 mm wide curvilinear tooth belts in power transmission applications that require synchronous rotation. This polycarbonate resin thermoplastic pulley has an aluminum insert with a 0.375" bore diameter and mounts to a drive shaft using setscrews. The fiberglass-reinforced polycarbonate resin thermoplastic provides light weight and low noise. Timing pulleys are a type of drive pulley and are used in a wide range of mechanical and electronic drives, including automotive and printing industries.

Pulley drive systems consist of two or more pulleys that connect with a belt to transmit mechanical power across greater distances than systems that use gears. Pulleys (sheaves) are available in different types: V-belt, timing, round, or flat. Pulleys must match the belts that connect them (timing pulleys with trapezoidal grooves require a belt with trapezoidal teeth) and engage either on the sides of the pulley flange (classical V-belts, narrow V-belts, or round belts), on the flat outer diameter of the pulley (flat belts), or in pulley grooves that match belt teeth (timing belts, synchronous belts, or curvilinear belts). Pulleys are made of various materials, including cast iron, steel, aluminum, polycarbonate resin thermoplastic, and nylon, and they can meet a broad range of requirements, including increased torque, resistance to wear, and light weight. Pulleys are used in drive designs in the automotive, appliance, agriculture, textile, printing, mining, and office equipment industries.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
