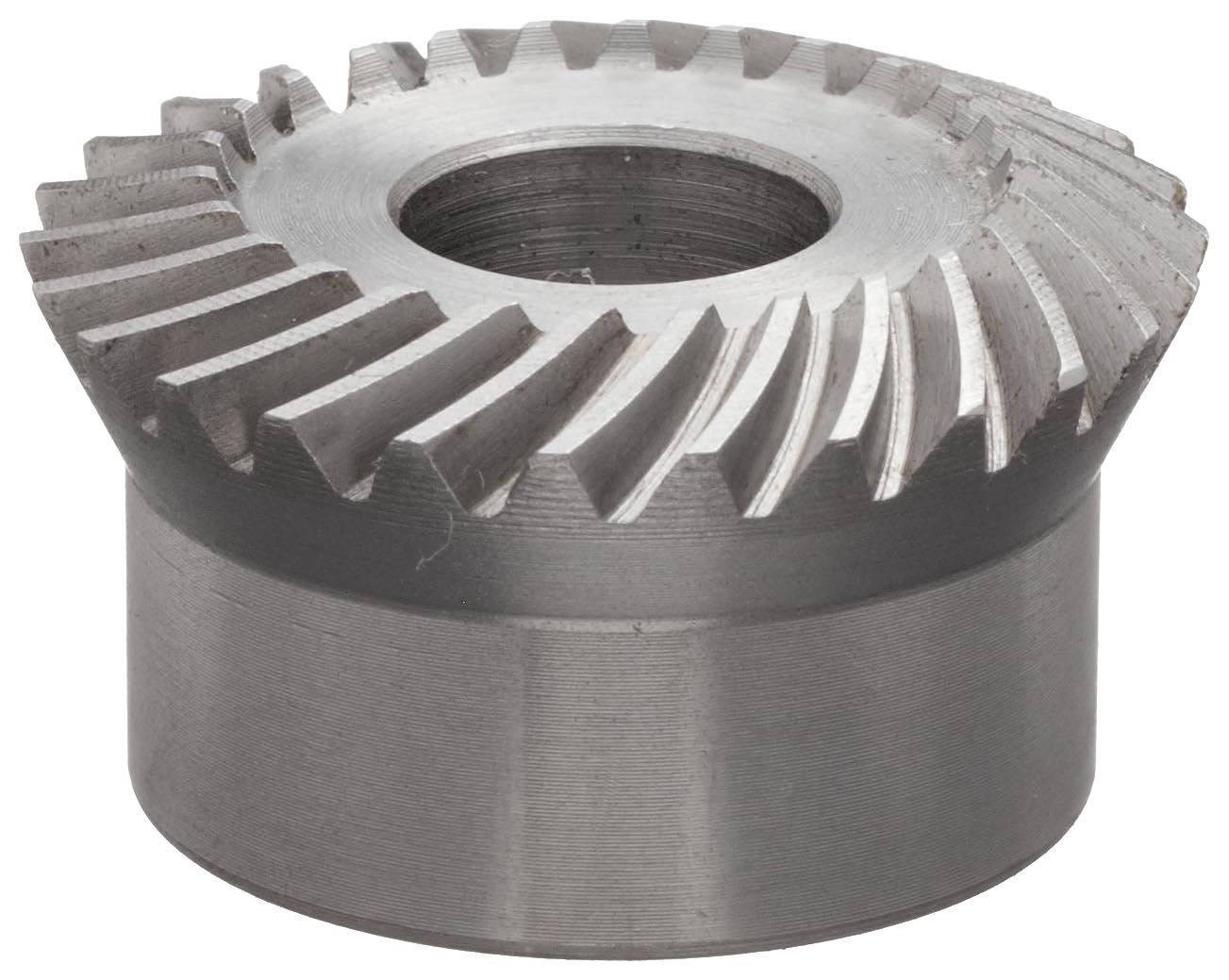

Boston Gear SS192-G Spiral Bevel Gear, 2:1 Ratio, 0.500" Bore, 19 Pitch, 26 Teeth, 35 Degree Spiral Angle, Steel

Be the first to review this item

ASIN B004N62QXG

Specifications for this item
Number of Items
1
Pitch
19;pitch
Bore Diameter
0.500  inches
Part Number
SS192G
Number of Teeth
26
Outside Diameter
0.730  inches
UPC
781711119341
Brand Name
Boston Gear
EAN
0781711119341
Hub Projection
0.420  inches
UNSPSC Code
31171708
Hub Diameter
1.120  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 11 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 26 teeth for use with SS192-P mating bevel gear in 2:1 gear ratio applications
  • Spiral bevel 90 degree mesh transmits mechanical power between perpendicular shafts
  • Spiral angle of 35 degrees better suits this spiral bevel gear for higher speed and larger torque applications than straight bevel gears
  • Low carbon steel (0.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
  • Unhardened teeth for applications where hardness and strength are not needed to transmit torque and motion

Package Details

Shipping Weight: 0.25 pounds
Package Size: 2.3 x 2 x 1.9 inches

Product Description

This Boston Gear SS192-G spiral bevel gear has a 19 diametral pitch, 26 steel teeth, and a 35 degree spiral angle to transmit torque between perpendicular shafts to provide rotational power to another part of a motorized system. This bevel gear is intended for use with an SS192-P bevel pinion gear for applications requiring a 2:1 gear ratio. It has a 0.500" bore diameter, is made of low carbon steel (0.2 percent carbon), and has unhardened teeth for applications where hardness and strength are not needed to transmit torque and motion. The 20 degree pressure angle provides a lower contact ratio between gears than a smaller pressure angle, resulting in higher load capacity. The 35 degree spiral angle makes this spiral bevel gear better suited for higher speed and larger torque applications than straight bevel gears. This gear is used only with its mating pinion gear because bevel gears can mesh only with gears that have the same pressure angle, spiral angle, and diametral pitch (that is, the number of teeth per inch). This Boston Gear spiral bevel gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Bevel gears have a blunt-end cone shape with teeth along the cone face and are used for transmitting torque and motion between perpendicular rotating shafts. A bevel gear's pressure angle, spiral angle, diametral pitch (also called DP or pitch), and its material are important factors to consider. A bevel gear is part of a set of two gears, and the gear ratio for the set is determined by the number of teeth on each gear. Gears come in several types for use in different power transmission configurations and for different applications, including spur gears (for rotating shafts parallel to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
