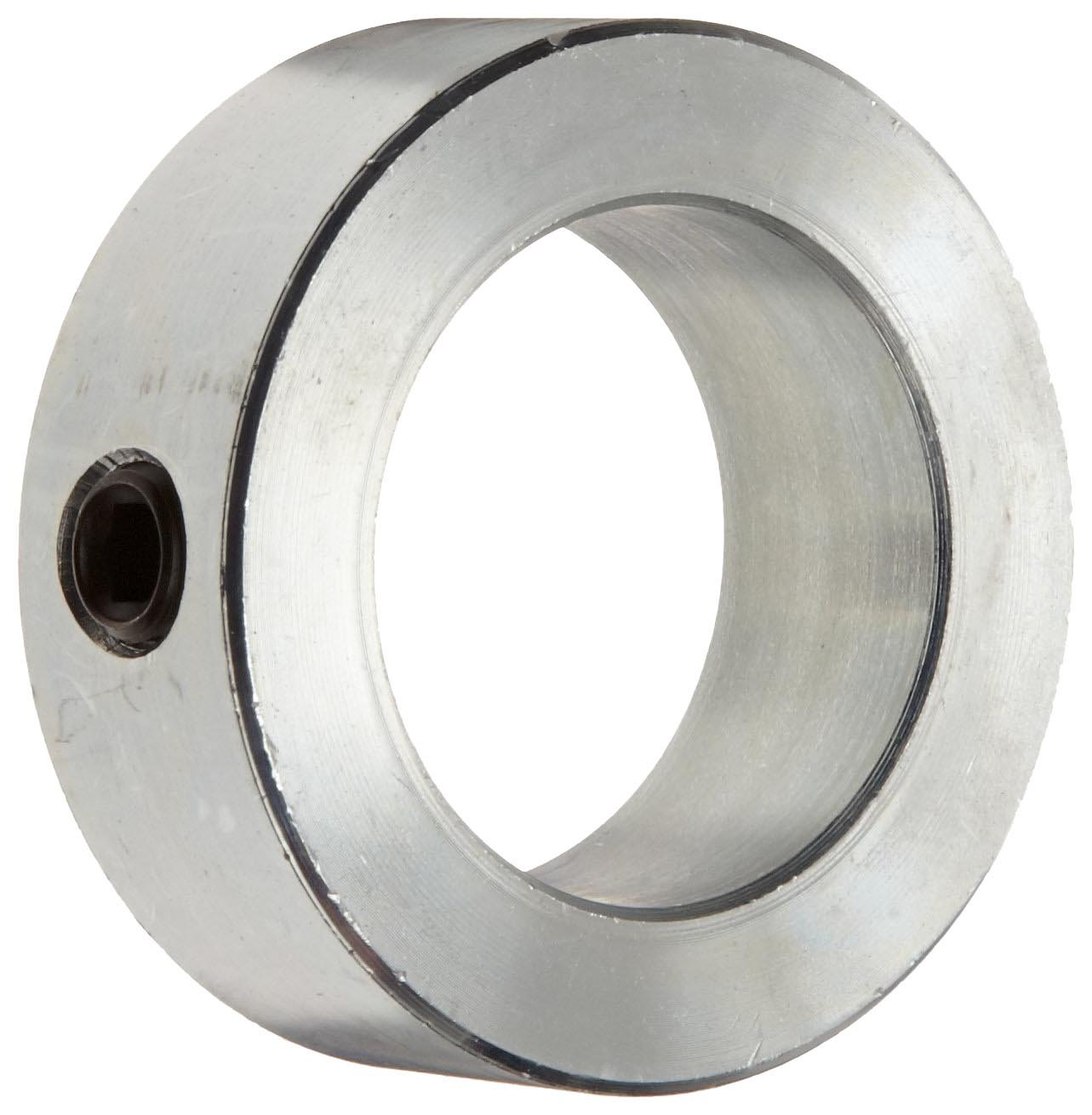

Boston Gear Setscrew Shaft Collar, Zinc-Plated Steel

Be the first to review this item

Product Specifications
Material Type
Alloy Steel
UNSPSC Code
31162811
Brand Name
Boston Gear

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 1 day 7 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 28 Next 8 »
Mfr Part # Bore Diameter Outside Diameter Collar Width Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 28 Next 8 »
SC106 1.063" 1.750" 0.625" 1 B004NYAOU0 yes $5.14 Buy Options
SC112 1.125" 1.750" 0.625" 1 B004NYAOUA yes $18.90 Buy Options
SC118 1.188" 2.000" 0.688" 1 B004NYAOUK yes $5.75 Buy Options
SC125 1.250" 2.000" 0.688" 1 B004NYAOUU yes $5.91 Buy Options
SC131 1.313" 2.125" 0.688" 1 B004NYAOV4 yes $6.74 Buy Options
SC137 1.375" 2.125" 0.750" 1 B004NYAOVE yes $6.85 Buy Options
SC143 1.438" 2.250" 0.750" 1 B004NYAOVY yes $7.25 Buy Options
SC150 1.500" 2.250" 0.750" 1 B004NYAOW8 yes $7.31 Buy Options
SC156 1.563" 2.500" 0.813" 1 B004NYAOWI yes $9.88 Buy Options
SC162 1.625" 2.500" 0.813" 1 B004NYAOWS yes $23.35 Buy Options
SC168 1.688" 2.500" 0.813" 1 B004NYAOX2 yes $10.30 Buy Options
SC175 1.750" 2.625" 0.875" 1 B004NYAOXC yes $13.11 Buy Options
SC181 1.813" 2.625" 0.875" 1 B004NYAOXM yes $31.42 Buy Options
SC187 1.875" 2.625" 0.875" 1 B004NYAOXW yes $13.61 Buy Options
SC193 1.938" 3.000" 0.875" 1 B004NYAOY6 yes $13.94 Buy Options
SC200 2.000" 3.000" 0.875" 1 B004NYAOYG yes $15.30 Buy Options
SC212 2.125" 3.000" 0.875" 1 B004NYAOYQ yes $16.55 Buy Options
SC218 2.188" 3.250" 0.938" 1 B004NYAOZ0 yes $17.65 Buy Options
SC225 2.250" 3.250" 0.938" 1 B004NYAOZK yes $35.90 Buy Options
SC231 2.313" 3.250" 0.938" 1 B004NYAOZU yes $18.14 Buy Options

Key Features

  • Setscrew shaft collar for applications supporting low axial loads and simple positioning
  • Effective on shafts made of softer material than the setscrew material
  • Steel for weldability and rust resistance with zinc plating for better resistance to corrosion than black oxide steel
  • Includes a hollow-point setscrew for securing the collar onto the shaft
  • Operating temperatures range from -35 to 176 degrees C (-32 to 350 degrees F)

Product Description

This Boston Gear setscrew shaft collar is made of zinc-plated steel. It is a setscrew-type shaft collar for applications supporting low axial loads and simple positioning. Setscrew collars have improved holding power when the shaft material is softer than the setscrew material. It is made of steel for weldability and rust resistance and is zinc plated for better resistance to corrosion than black oxide steel. This collar comes with a hollow-point setscrew for securing the collar onto the shaft. The operating temperatures for this collar range from -35 to 176 degrees C (-32 to 350 degrees F). This shaft collar is suitable for use in various applications, including in the automotive industry to situate components in automobile power steering assemblies, the manufacturing industry to locate components on a conveyor belt system, and the hobby craft industry to hold wheels on axles in remote control vehicles, among others.

Shaft collars are ring-shaped devices primarily used to secure components onto shafts. They also serve as locators, mechanical stops, and spacers between other components. The two basic types of shaft collars are clamping (or split) collars, which come in one- or two-piece designs, and setscrew collars. In both types, one or more screws hold the collars in place on the shaft. In setscrew collars, screws are tightened through the collar until they press directly against the shaft, and in clamping collars, screws are tightened to uniformly compress the collar around the shaft without impinging or marring it. Setscrew collars and one-piece clamping collars must be installed by sliding the collar over the end of the shaft, while two-piece clamping collars separate into two halves and can be installed between components on the shaft. Shaft collars are made from a wide range of materials including zinc-plated steel, aluminum, nylon, and neoprene. Found in nearly every type of machinery and industry, shaft collars are used in applications including gearbox assemblies, motor bases, machine tools, drive shafts, agricultural implements, medical equipment, and paper and steel mill equipment, among others.

Boston Gear manufactures power transmission products and components including enclosed and open gear drives, worm gear speed reducers, spur gears and racks, electric drives, plain sleeve and ball bearings, washers, and rod ends. The company, founded in 1877, and headquartered in Charlotte, NC, meets International Organization for Standardization (ISO) 9001:2008 quality assurance standards and is a member of the Power Transmission Distributors Association.
