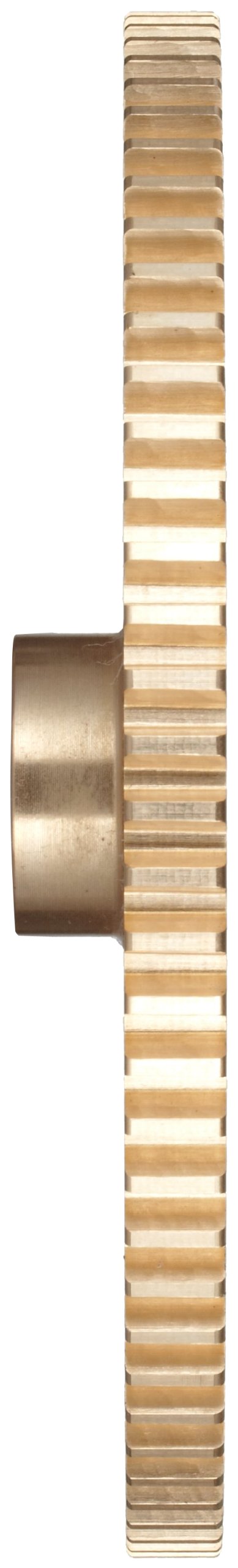

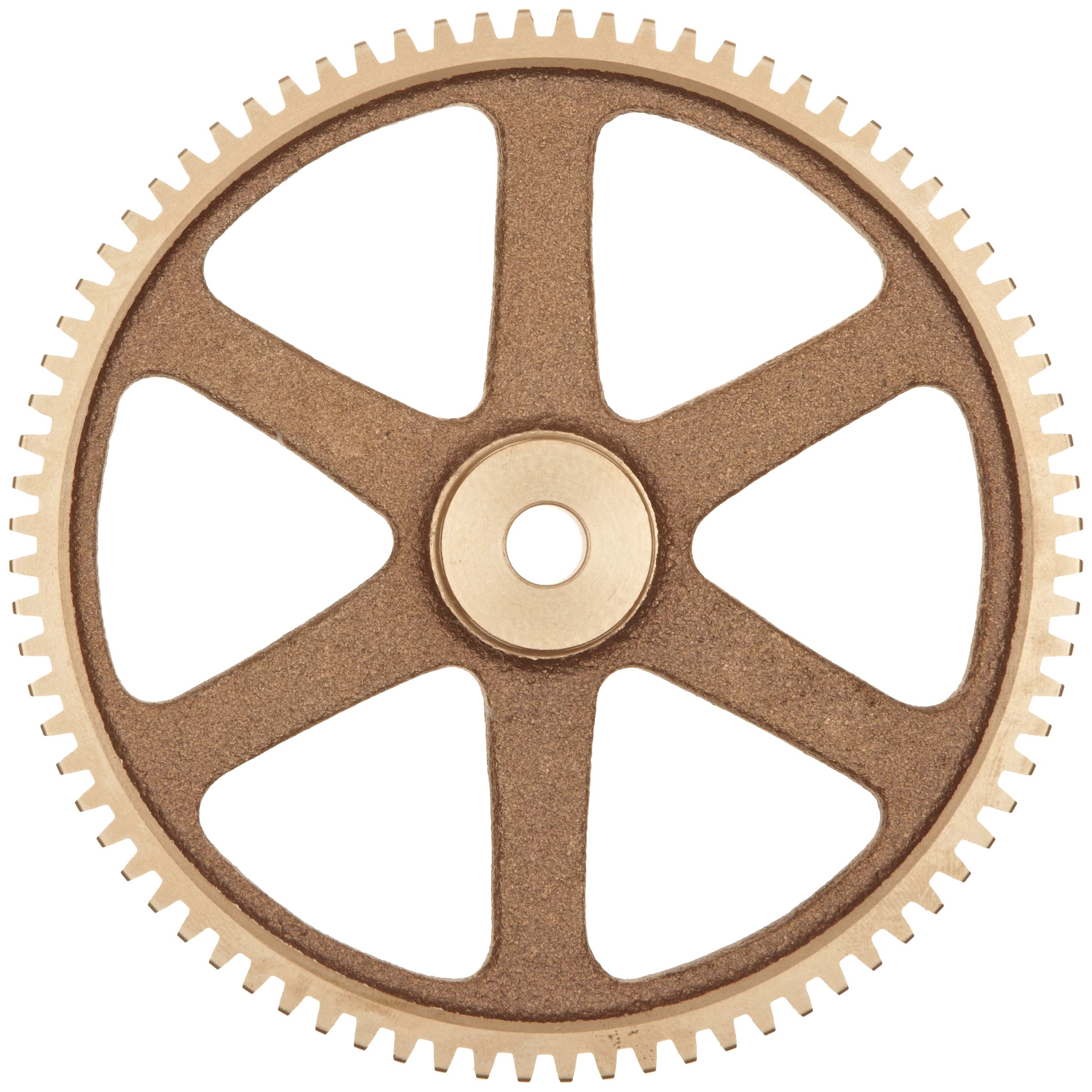

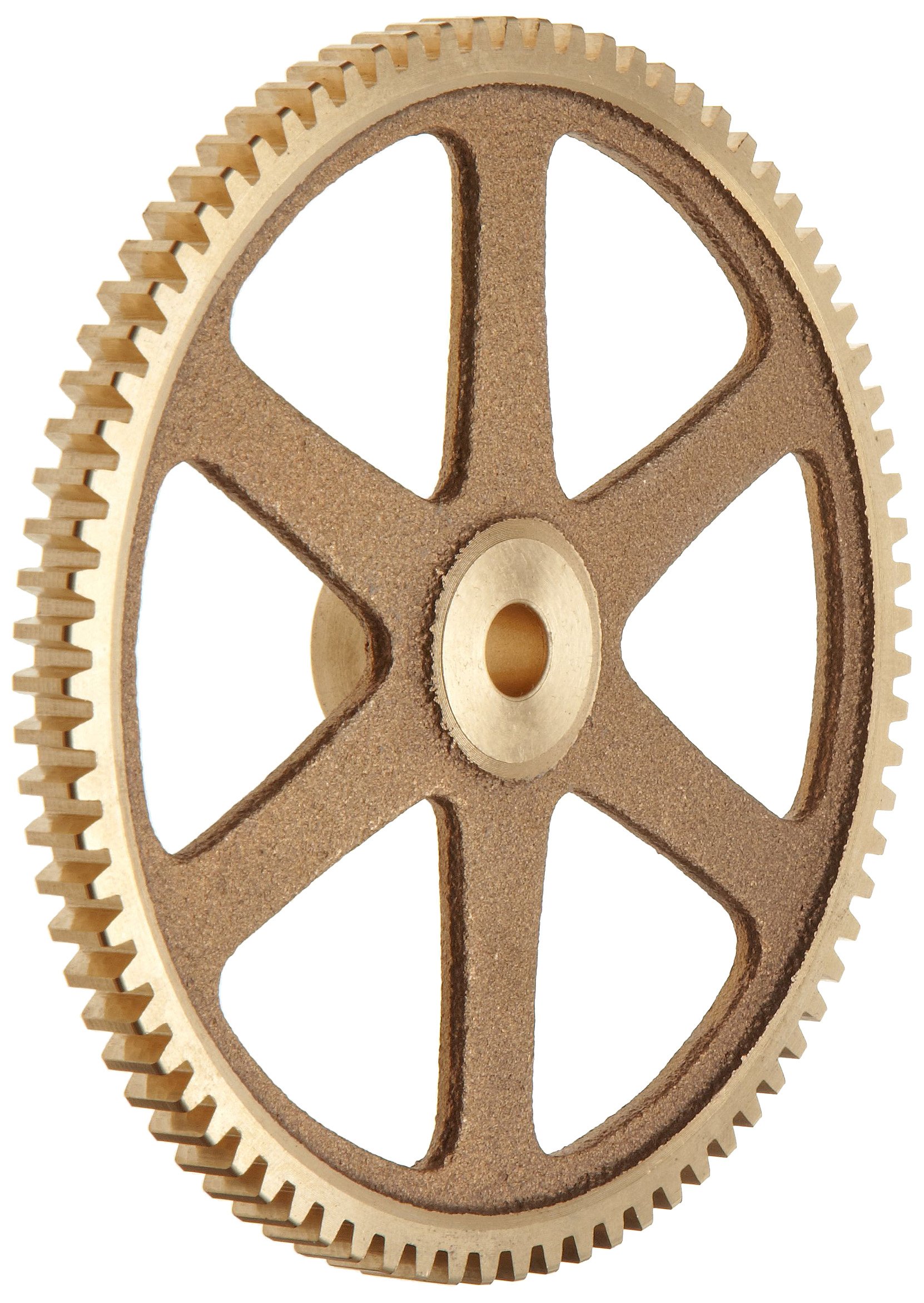

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Boston Gear Spur Gear, 14.5 Pressure Angle, Brass, Inch, 16 Pitch

Be the first to review this item

Product Specifications
Pitch
16
Bore Diameter Tolerance
+/-0.0005  inches
Material Type
Brass
UNSPSC Code
31171707
Brand Name
Boston Gear
Face Width
0.313  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Diameter Bore Diameter Number of Teeth ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-15 of 15
5.125" 0.375" 80 B004N63126 yes $89.66 Buy Options
4.125" 0.375" 64 B004N6311M yes $69.64 Buy Options
3.625" 0.375" 56 B004N6311C yes $61.12 Buy Options
3.125" 0.313" 48 B004N63112 yes $54.82 Buy Options
2.625" 0.313" 40 B004N6310I yes $46.10 Buy Options
2.125" 0.313" 32 B004N63108 Usually ships in 2 to 3 weeks $30.88 Buy Options
1.875" 0.313" 28 B004N630ZO yes $27.10 Buy Options
1.625" 0.313" 24 B004N630ZE yes $25.20 Buy Options
1.250" 0.250" 18 B004N630YU yes $20.03 Buy Options
1.125" 0.250" 16 B004N630YA yes $17.09 Buy Options
1.000" 0.250" 14 B004N630XQ yes $16.39 Buy Options
0.875" 0.250" 12 B004N630XG yes $14.99 Buy Options
0.75" 0.250" 10 B004N630X6 yes $15.78 Buy Options
0.688" 0.188" 9 B004N630WM yes $15.20 Buy Options
1.375" 0.250" 20 B004N630Z4 yes $21.90 Buy Options

Key Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 14.5 degrees for a higher contact ratio between gears, resulting in quieter operation than larger pressure angles
  • Diametral pitch of 16 for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability

Product Description

The Boston Gear brass spur gear with 14.5-degree pressure angle (PA) and a diametral pitch (DP) of 12 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 14.5-degree pressure angle for a higher contact ratio between gears than larger pressure angles, resulting in quieter operation, and a 12-diametral pitch for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. This Boston Gear spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Boston Gear manufactures a variety of gear drives, variable speed drives, clutches, and the components that comprise these systems including sprockets and bearings. Their manufacturing designs, production, and inspection meet International Organization for Standardization (ISO) standards for quality assurance. The company, founded in 1877, is headquartered in Charlotte, NC.
