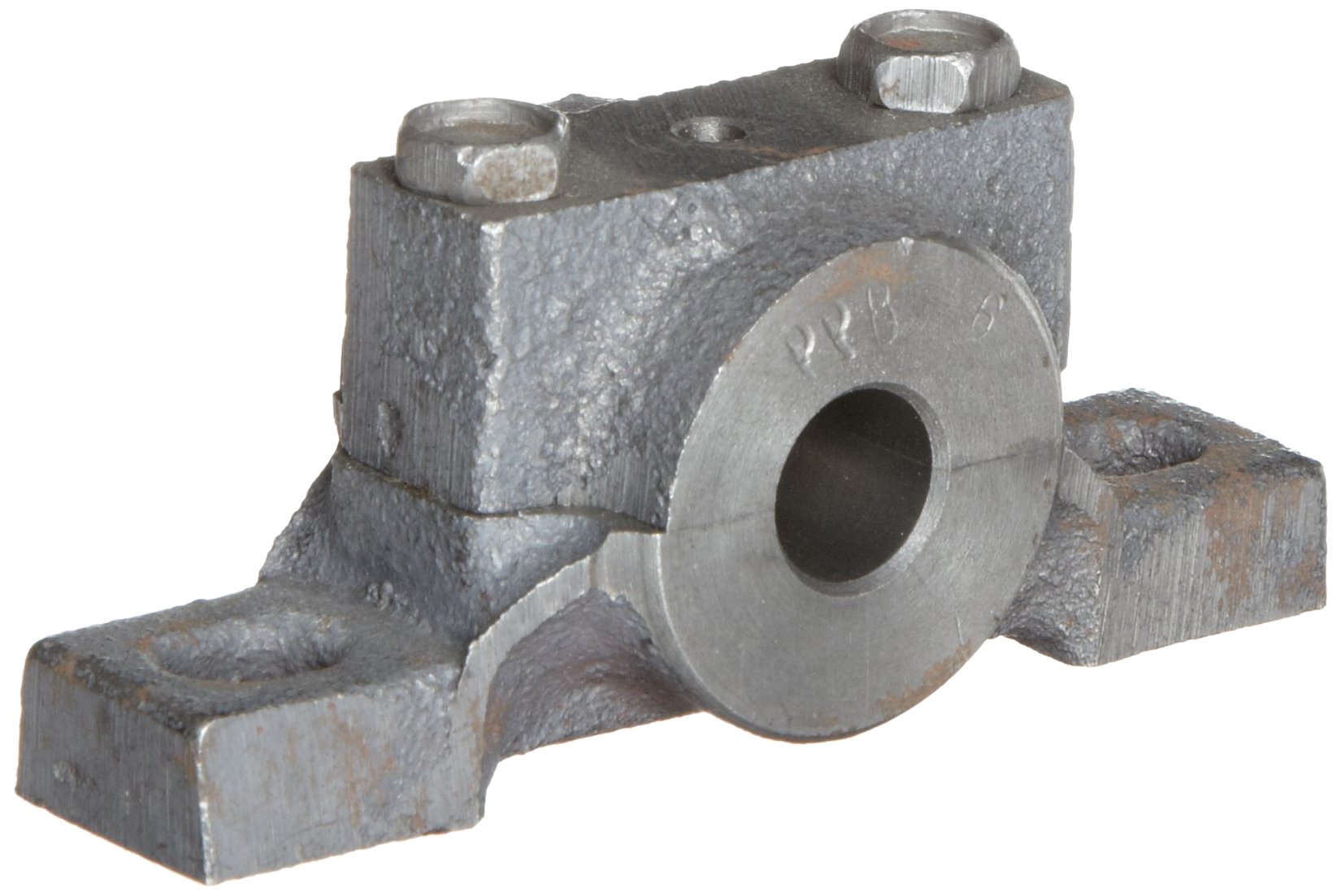

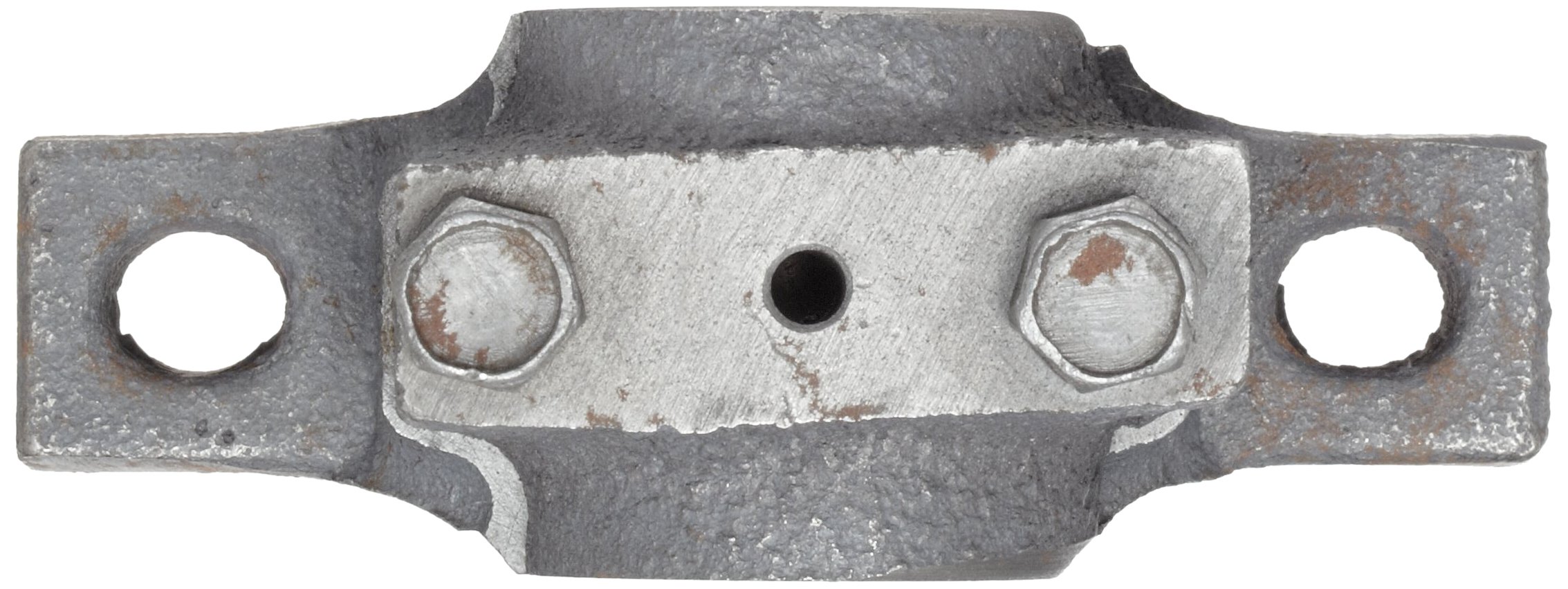

Boston Gear PPB6 Pillow Block Housing, Light Duty, 2 Bolt Holes, 0.375" Bore Diameter, Cast Iron, Inch

Be the first to review this item

ASIN B004NEWDNQ

Specifications for this item
Number of Items
1
Material Type
Cast Iron
Part Number
PPB6
UPC
781711343067
Brand Name
Boston Gear
EAN
0781711343067
UNSPSC Code
31171511

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 2 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Two-bolt cast iron bearing housing with machined bearing seat for spherical roller bearing fit
  • Cap bolts provide clamping force between the cap and base
  • Relubricatable split housing pillow block with removable housing cap to help mounting, inspection, and maintenance
  • Flat square foot helps accurately align the housing

Package Details

Shipping Weight: 0.3 pounds
Package Size: 2.8 x 1.3 x 1 inches

Product Description

This Boston Gear PPB Series pillow block housing is made of cast iron, has two mounting bolt holes, an oil hole drilled in the cap, and is suitable for light-duty use for a 0.375-inch bronze sleeve bearing insert. This horizontally split housing has a machined bearing seat for a spherical roller fit; bore end surfaces that are machined perpendicular to the base; a removable housing cap to help mounting, inspection, and maintenance; two cap bolts to provide clamping force between the cap and base; and a flat square foot to help accurately align the housing. This ball bearing pillow block is suitable for use in low-speed material handling applications, such as conveyors.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008.
