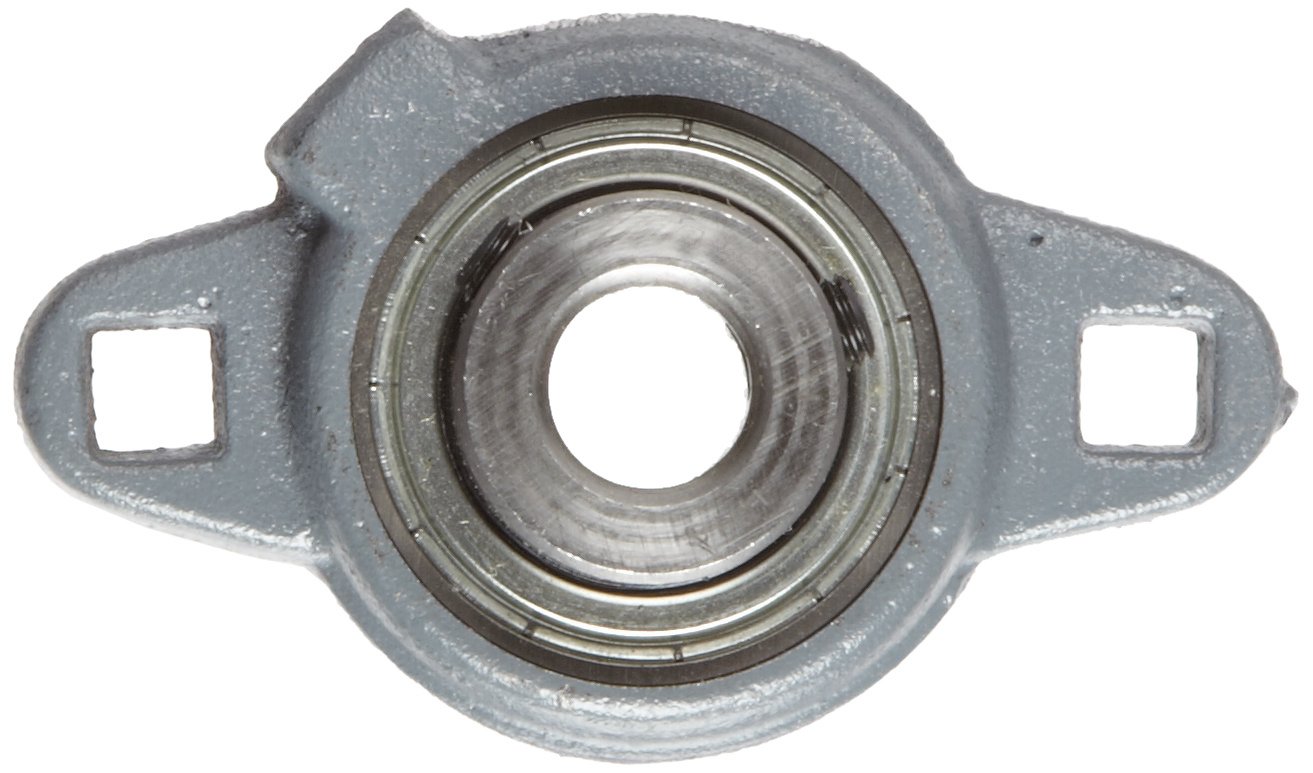

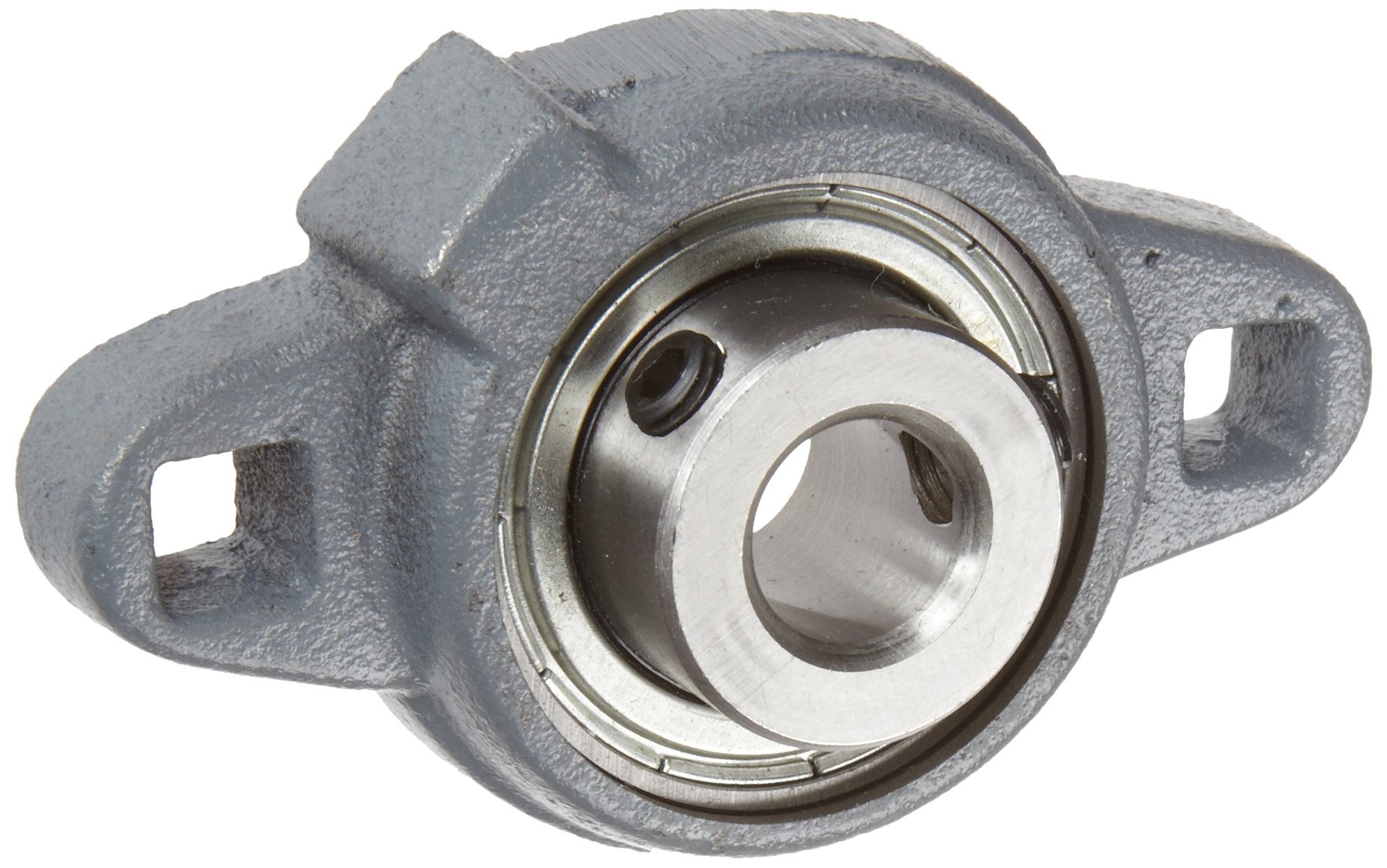

Boston Gear XL21/2 Mounted Bearing, Flange, Light Duty, 2 Bolts, 0.5 Bore

Be the first to review this item

ASIN B004NEWIE0

Product Specifications
Mfr Part #
XL21/2
UPC
781711645475
Material Type
Cast Iron
EAN
0781711645475
Number of Items
1
Specification for this product family (See all  products)
UNSPSC Code
31171500
Brand Name
Boston Gear

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 19 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast ductile iron flanged housing with two bolt holes provides higher tensile strength and lighter weight than standard cast iron
  • Light-duty, deep-groove ball bearing insert for applications with light to moderate radial loads and light thrust loads
  • Contact seals on both sides of the bearing keep lubricant in and contaminants out
  • Setscrew lock for a three-point contact hold on the shaft
  • Extended inner ring for increased shaft support

Package Details

Shipping Weight: 0.45 pounds
Package Size: 2.5 x 2.1 x 2 inches

Product Description

This Boston Gear XL2 series light-duty mounted ball bearing flange unit with two bolt holes, contact and flinger seals, and a setscrew lock is designed for mounting onto bearing surfaces perpendicular to the shaft axis. This ready-to-mount flange unit has a cast ductile iron housing for higher tensile strength and lighter weight than standard cast iron. The deep-groove ball bearing insert in the housing is rated “light duty” for applications with light to moderate radial loads and light thrust loads. It has an extended inner ring for increased shaft support, and a convex sphered outer surface that compensates for misalignments. Contact seals on both sides of the bearing retain lubricant applied at manufacture and help protect against contaminants. The bearing locks onto the shaft with two setscrews for a three-point contact hold. This lock type minimizes ring distortion and vibration and is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. Flanged bearing units are suitable for use in industrial and commercial applications including conveyors, fans and blowers, construction machinery, and processing equipment, among many others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008.
