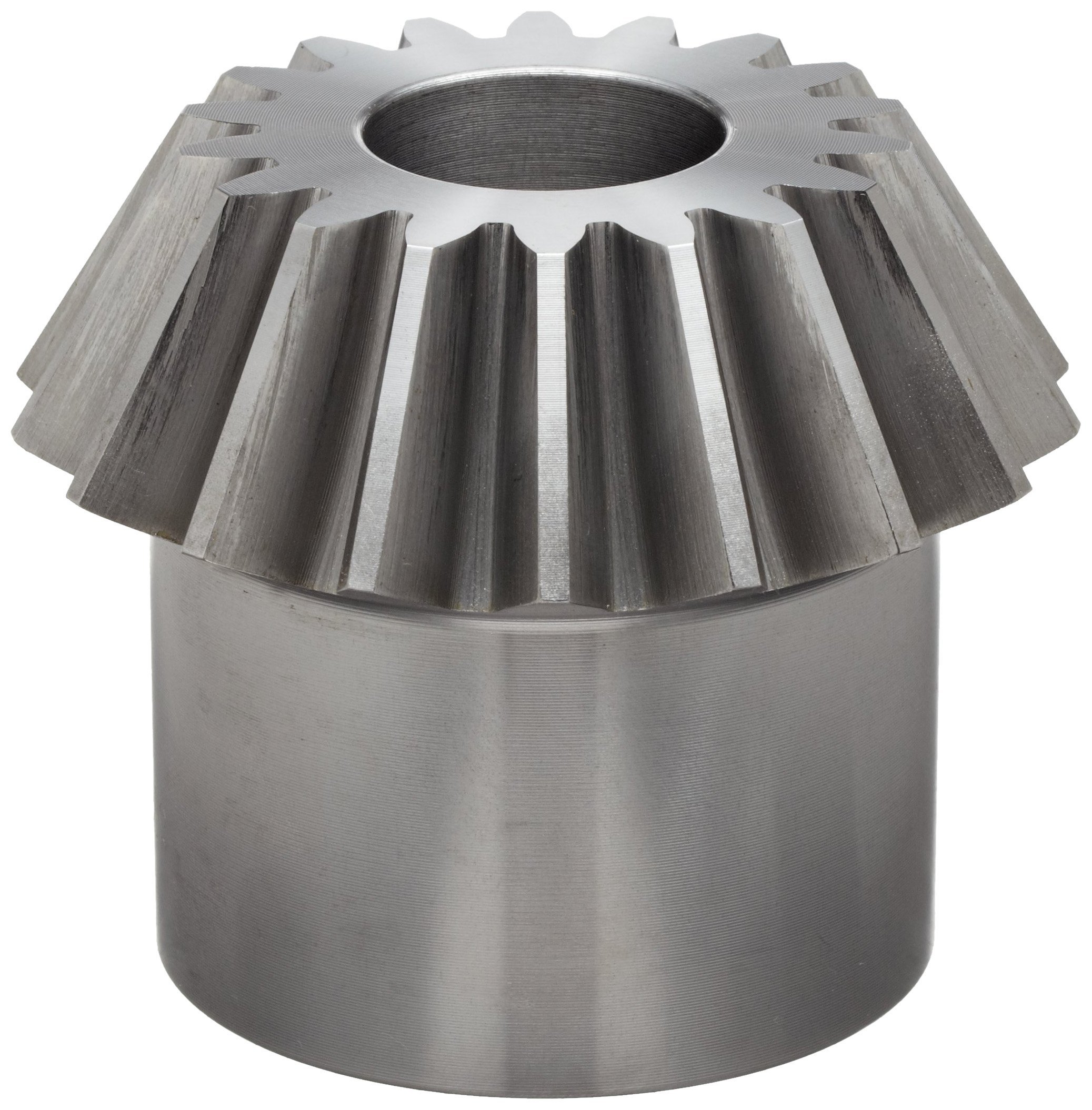

Boston Gear L158YP Bevel Gear, 2:1 Ratio, 1.125" Bore, 6 Pitch, 18 Teeth, Steel
Be the first to review this item
ASIN B004N62RF8
Specifications for this item
- Bore Diameter
- 1.125 inches
- Brand Name
- Boston Gear
- Diameter
- 2.765 inches
- EAN
- 0781711122808
- Hub Diameter
- 2.500 inches
- Hub Projection
- 1.590 inches
- Material Type
- Steel
- Number of Items
- 1
- Number of Teeth
- 18
- Part Number
- L158YP
- Pitch
- 6;pitch
- UPC
- 781711122808
This item ships for FREE with Next-Day Shipping on orders over $200 or FREE 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, May 23? Order in-stock items in the next 2 hours 37 minutes and choose One-Day Shipping at checkout.
Key Features
- NO KWY OR SETSCREW
- Mating gear is part number L158Y-G / 2:1 RATIO
Package Details
Shipping Weight:
3.3 pounds
Package Size:
4.3 x 4.2 x 4.1 inches
Product Description
This Boston Gear L158Y-P bevel pinion gear has a 6 diametral pitch, 18 steel teeth, and a straight bevel to transmit torque between perpendicular shafts to provide rotational power to another part of a motorized system. This bevel gear is intended for use with an L158Y-G bevel gear for applications requiring a 2:1 gear ratio. It has a 1.125" bore diameter, is made of low carbon steel (0.2 percent carbon), and has unhardened teeth for applications where hardness and strength are not needed to transmit torque and motion. The 20 degree pressure angle provides a lower contact ratio between gears than a smaller pressure angle, resulting in higher load capacity. This gear is used only with its mating gear because bevel gears can mesh only with gears that have the same pressure angle, spiral angle, and diametral pitch (that is, the number of teeth per inch). This Boston Gear bevel gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.
Bevel gears have a blunt-end cone shape with teeth along the cone face and are used for transmitting torque and motion between perpendicular rotating shafts. A bevel gear's pressure angle, spiral angle, diametral pitch (also called DP or pitch), and its material are important factors to consider. A bevel gear is part of a set of two gears, and the gear ratio for the set is determined by the number of teeth on each gear. Gears come in several types for use in different power transmission configurations and for different applications, including spur gears (for rotating shafts parallel to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.
Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
