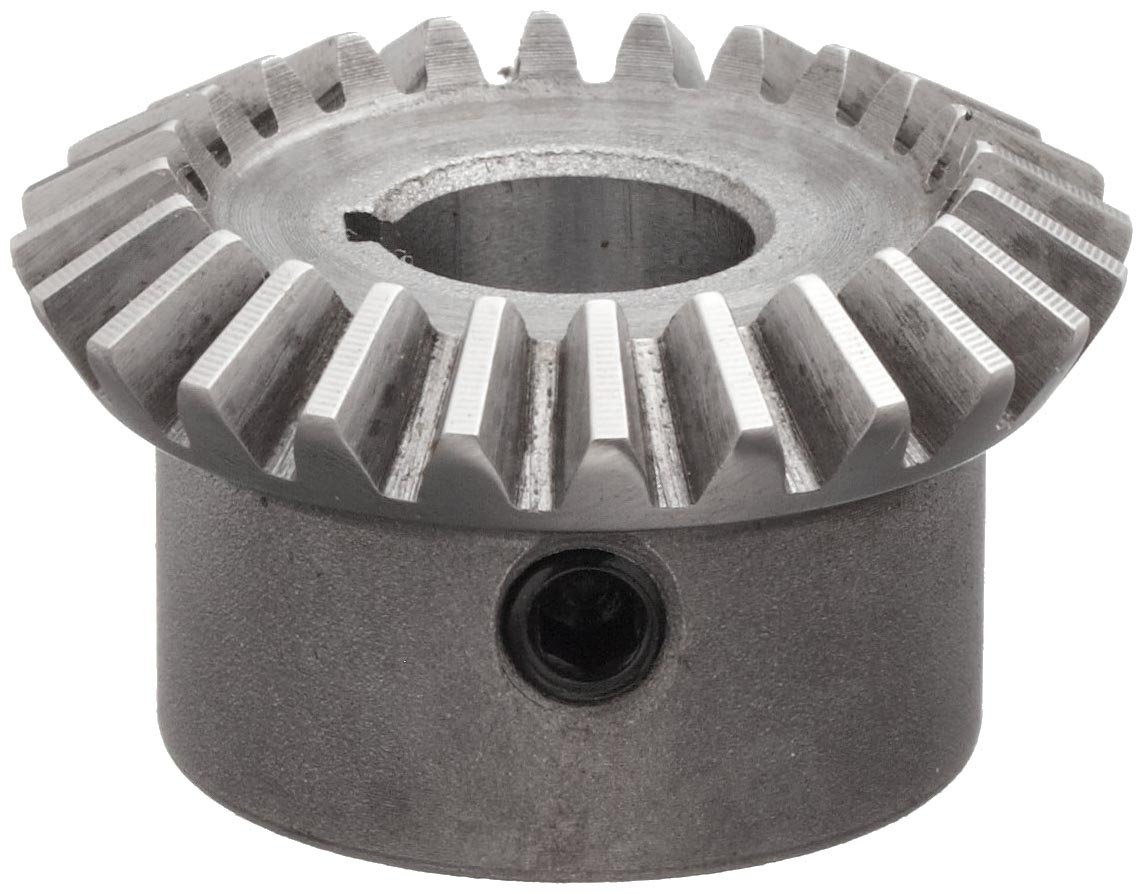

Boston Gear HL146Y-G Bevel Gear, 1.5:1 Ratio, 0.500" Bore, 16 Pitch, 24 Teeth, 20 Degree Pressure Angle, Straight Bevel, Keyway, Steel with Case-Hardened Teeth

Be the first to review this item

ASIN B004N62QFO

Specifications for this item
Number of Items
1
Pitch
16;pitch
Bore Diameter
0.500  inches
Material Type
Steel
Part Number
HL146YG
Number of Teeth
24
Outside Diameter
0.750  inches
UPC
781711118504
Brand Name
Boston Gear
EAN
0781711118504
Hub Projection
0.560  inches
Hub Diameter
1.120  inches
List price:
$58.00
Price:
$52.49
You save:
$5.51 (10%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 20 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 24 teeth for use with HL146Y-P mating bevel gear in 1.5:1 gear ratio applications
  • Straight bevel 90 degree mesh transmits mechanical power between perpendicular shafts
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Low carbon steel (0.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
  • Case-hardened teeth for applications where hardness and strength are needed to transmit torque and motion

Package Details

Shipping Weight: 0.25 pounds
Package Size: 2.6 x 2 x 2 inches

Product Description

This Boston Gear HL146Y-G bevel gear has a straight bevel, a 16 diametral pitch, 24 case-hardened steel teeth, and a keyway to transmit torque between perpendicular shafts to provide rotational power to another part of a motorized system. This bevel gear is intended for use with an HL146Y-P bevel pinion gear for applications requiring a 1.5:1 gear ratio. It has a keyway and setscrew for use with a 0.500" diameter keyed shaft (not included), is made of low carbon steel (0.2 percent carbon), and has case-hardened teeth for applications where hardness and strength are needed to transmit torque and motion. The 20 degree pressure angle provides a lower contact ratio between gears than a smaller pressure angle, resulting in higher load capacity. This gear is used only with its mating pinion gear because bevel gears can mesh only with gears that have the same pressure angle, spiral angle, and diametral pitch (that is, the number of teeth per inch). This Boston Gear bevel gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Bevel gears have a blunt-end cone shape with teeth along the cone face and are used for transmitting torque and motion between perpendicular rotating shafts. A bevel gear's pressure angle, spiral angle, diametral pitch (also called DP or pitch), and its material are important factors to consider. A bevel gear is part of a set of two gears, and the gear ratio for the set is determined by the number of teeth on each gear. Gears come in several types for use in different power transmission configurations and for different applications, including spur gears (for rotating shafts parallel to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
