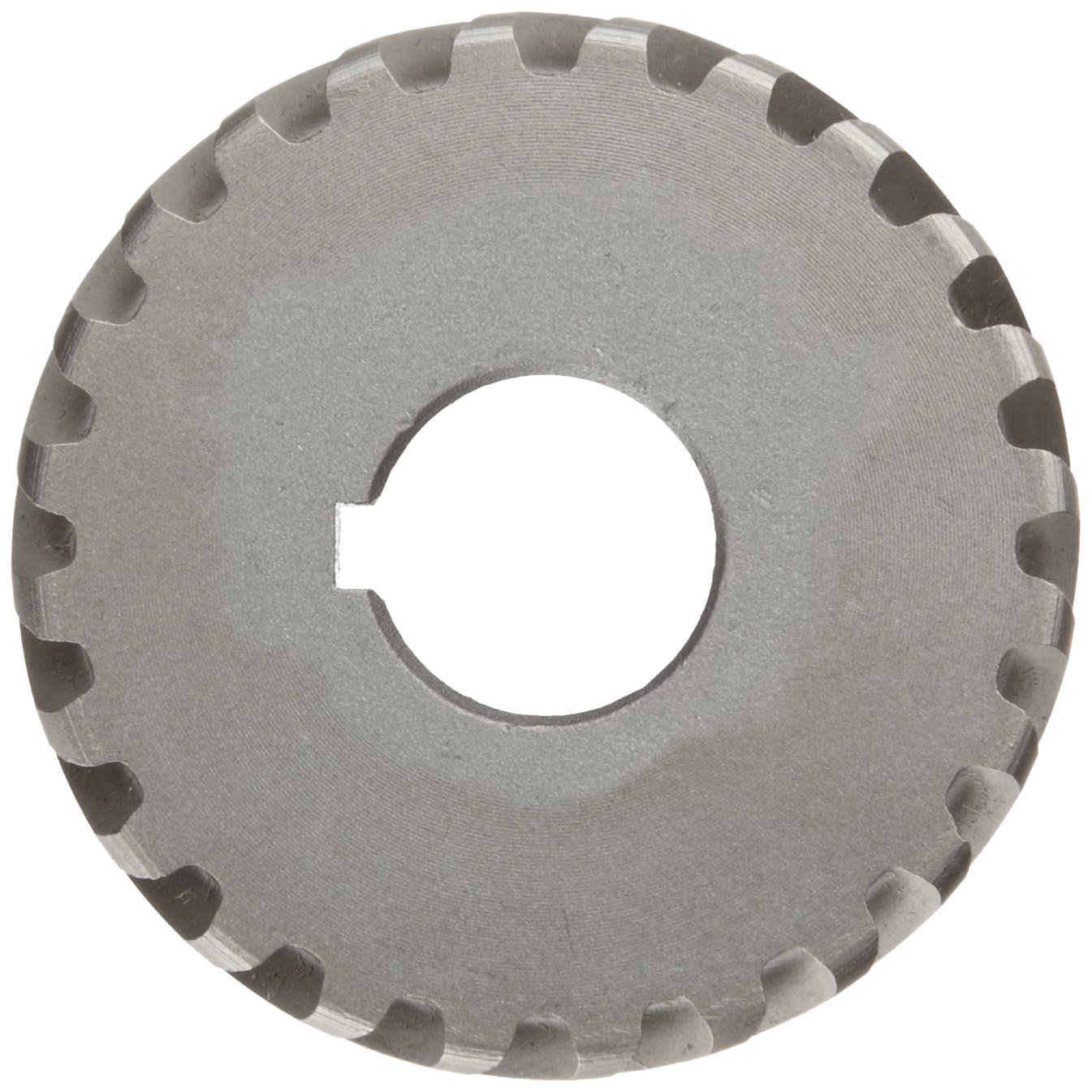

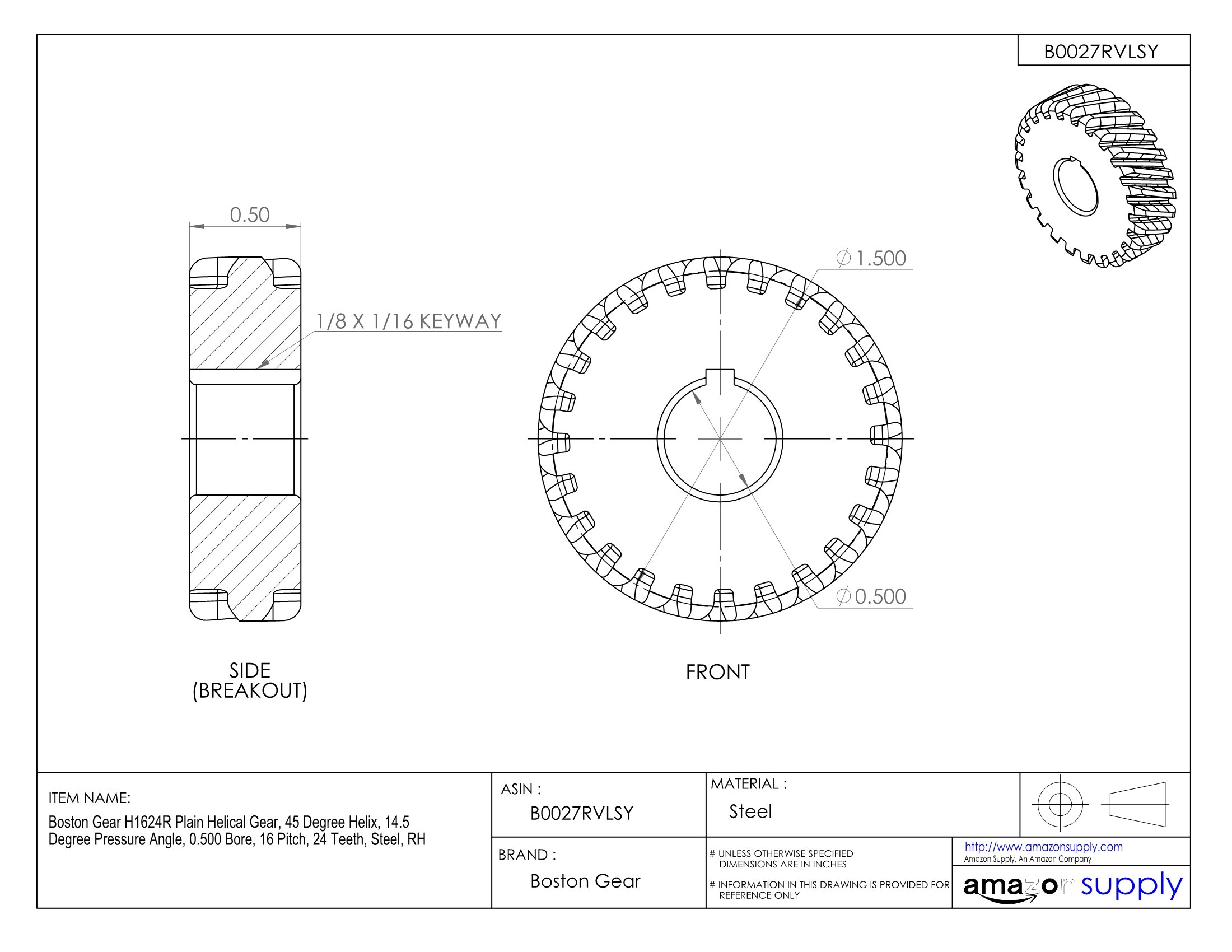

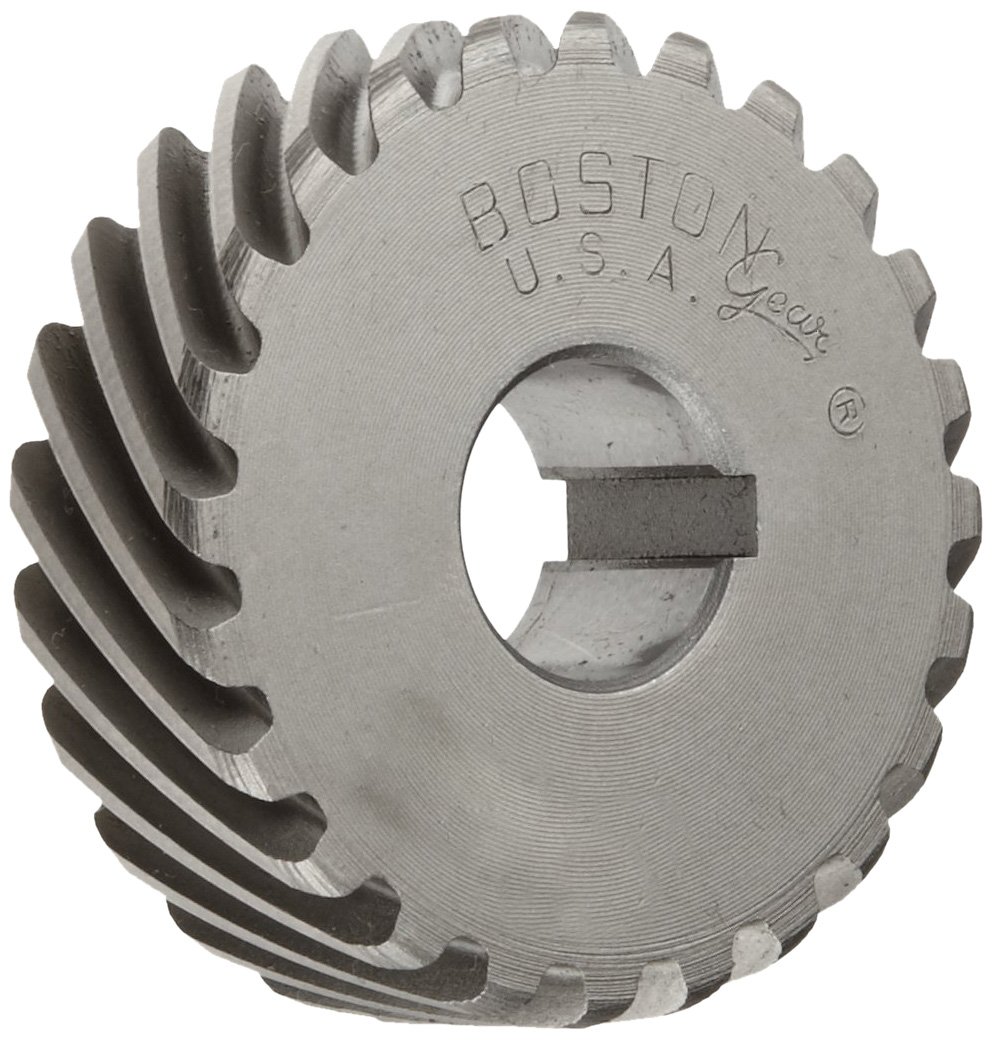

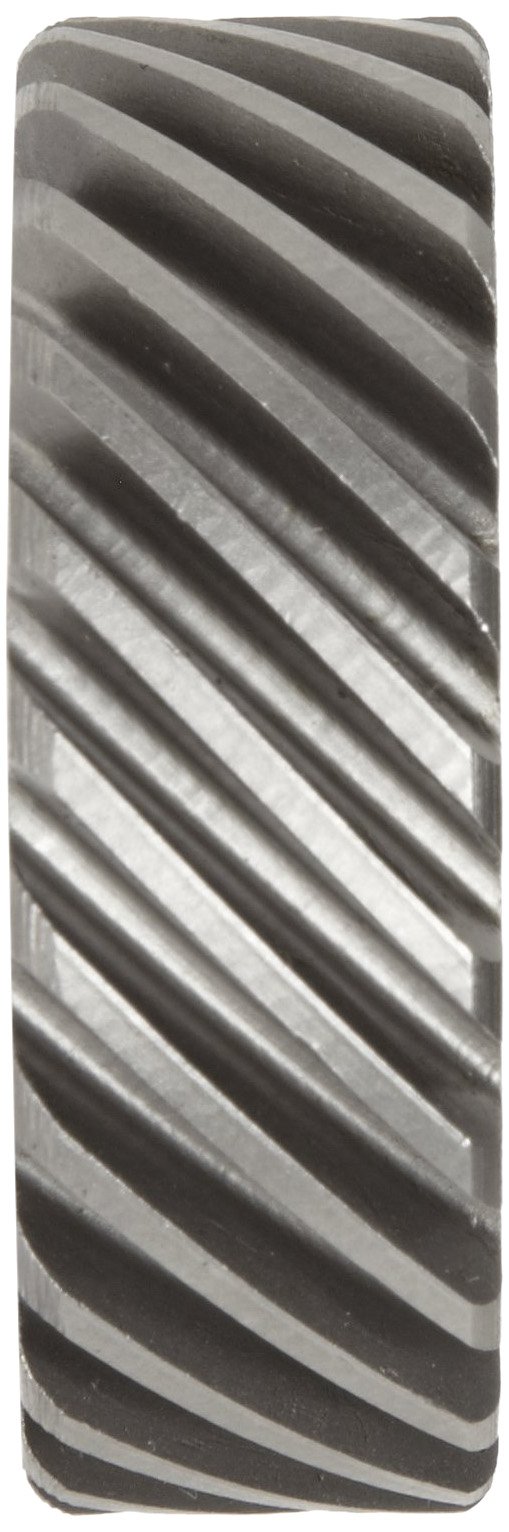

Boston Gear H1624R Plain Helical Gear, 45 Degree Helix, 14.5 Degree Pressure Angle, 0.500 Bore, 16 Pitch, 24 Teeth, Steel, RH
Be the first to review this item
ASIN B0027RVLSY
Specifications for this item
- Bore Diameter
- 0.500 inches
- Brand Name
- Boston Gear
- EAN
- 0781711182123
- Hub Diameter
- 0.000 inches
- Hub Projection
- 0.000 inches
- Material Type
- Steel
- Number of Items
- 1
- Number of Teeth
- 24
- Part Number
- H1624R
- Pitch
- 16 Degrees
- UPC
- 781711182123
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, May 23? Order in-stock items in the next 11 hours 59 minutes and choose One-Day Shipping at checkout.
Key Features
- 14-1/2 Degree Normal Pressure Angle
- STEEL-TEETH HARDENED
- Keyway only-1/8 X 1/16
Package Details
Shipping Weight:
0.05 pounds
Package Size:
2.6 x 2.1 x 2 inches
