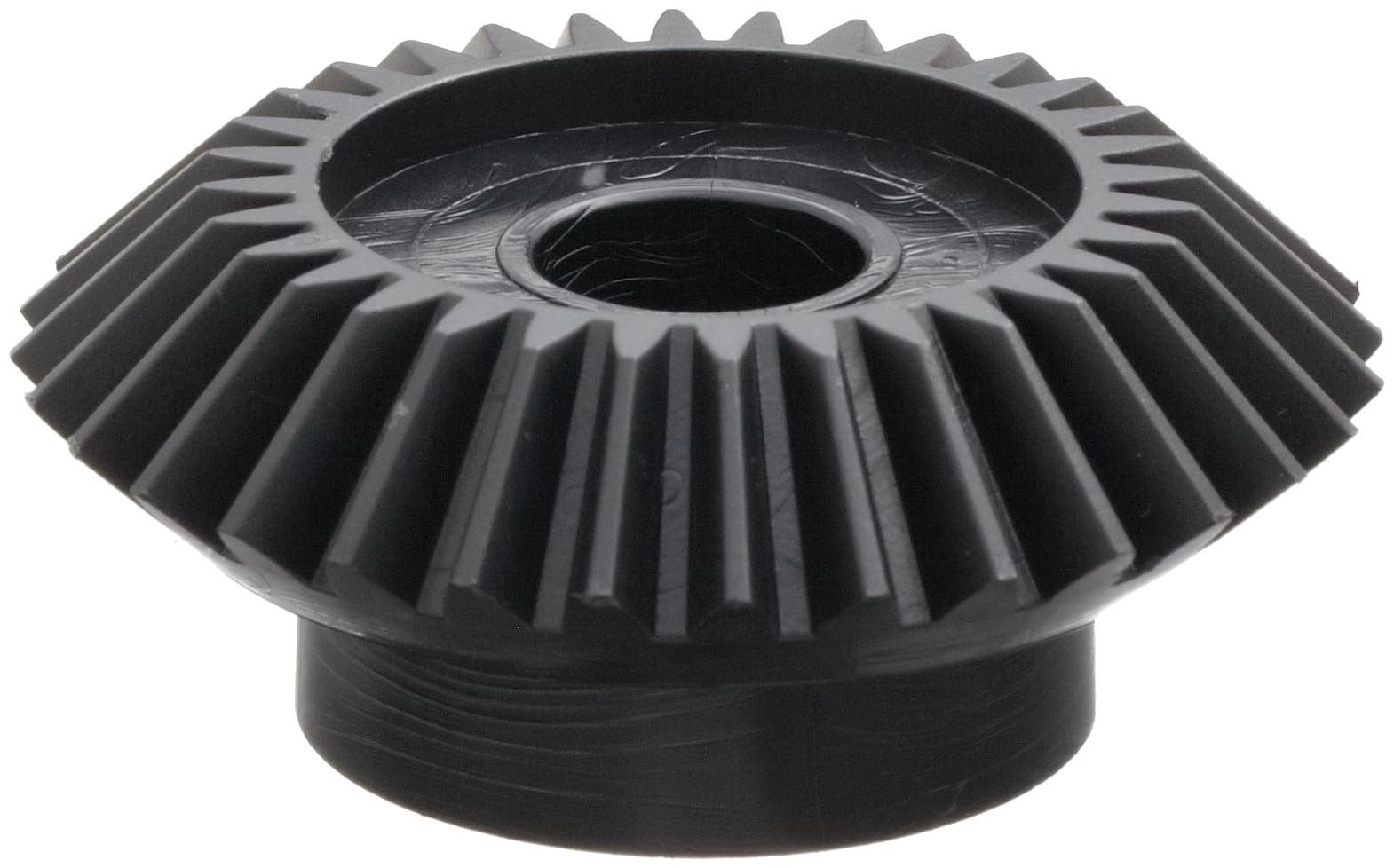

Boston Gear GP Series Miter Gear, 1:1 Ratio, 20 degree Pressure Angle, Straight Miter, Plain Bore, Molded Nylon

Be the first to review this item

ASIN B005AVTXWA

Specifications for this item
Pitch
16
Bore Diameter
.500  inches
Material Type
Nylon
Number of Teeth
32
Brand Name
BOSCA
UNSPSC Code
31171700
Face Width
0.390  inches
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Molded polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion combined with the corrosion resistance, ductility at high temperatures, and low magnetic permeability of brass
  • Unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion

Product Description

This molded nylon Boston Gear GP series miter gear has a 20 degree pressure angle (PA) and a straight miter to transmit torque between perpendicular shafts to provide rotational power to another part of a motorized system. The gear is made of molded polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion combined with the corrosion resistance, ductility at high temperatures, and low magnetic permeability of brass. This miter gear has a plain bore and unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion. The 20 degree pressure angle provides a lower contact ratio between gears than a 14.5 degree pressure angle, resulting in higher load capacity. This gear is intended for use only with identical gears because miter gears can mesh only with gears that have the same pressure angle, number of teeth, and diametral pitch (number of teeth per inch). This Boston Gear miter gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Miter gears have a blunt-end cone shape with teeth along the cone face and are used for transmitting torque and motion between perpendicular rotating shafts. A miter gear's pressure angle (PA), spiral angle, diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including spur gears (for rotating shafts parallel to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.

Boston Gear manufactures a variety of gear drives, variable speed drives, clutches, and the components that comprise these systems including sprockets and bearings. Their manufacturing designs, production, and inspection meet International Organization for Standardization (ISO) standards for quality assurance. The company, founded in 1877, is headquartered in Charlotte, NC.
