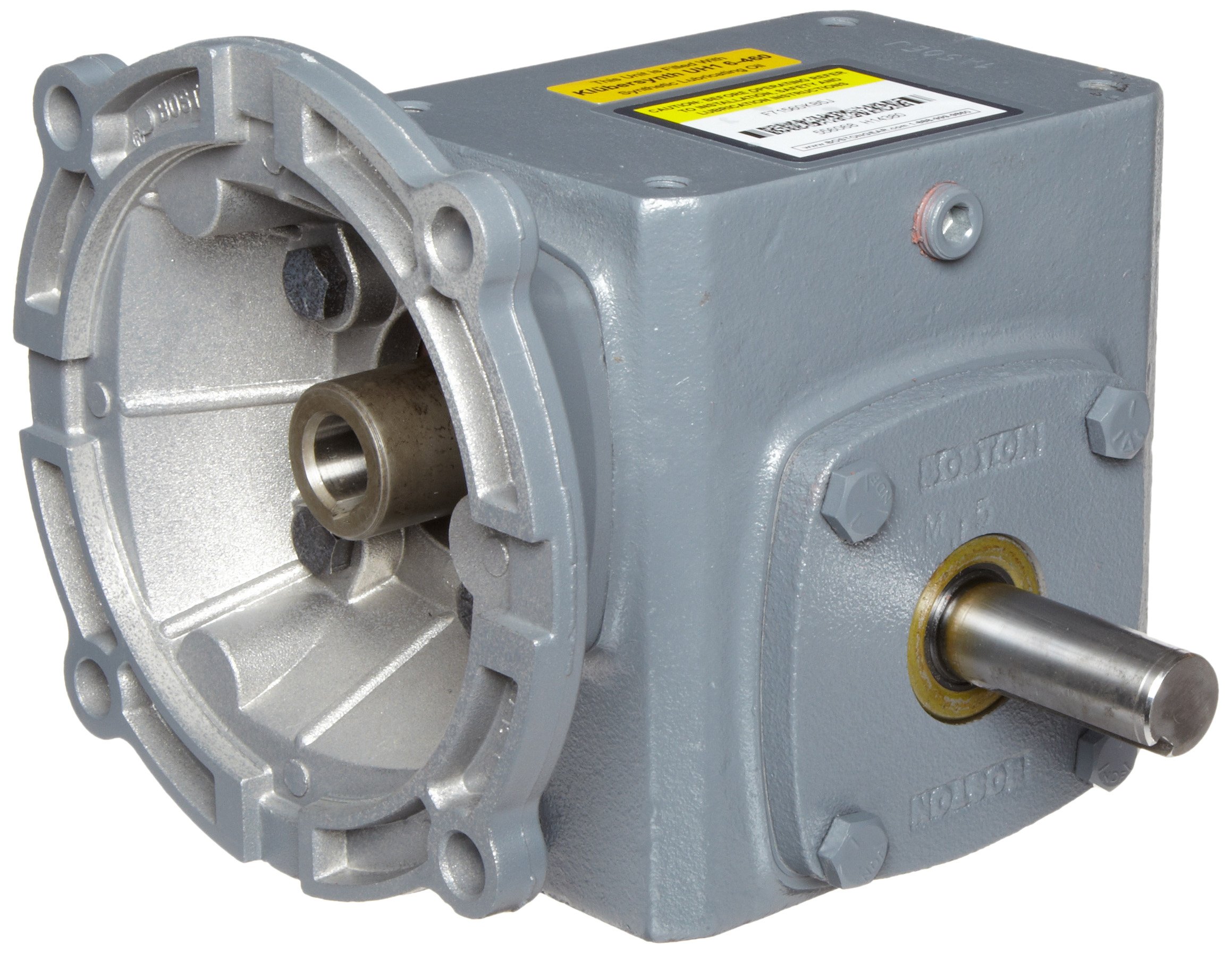

Boston Gear F7155KB5J Right Angle Gearbox, NEMA 56C Flange Input, Left Output, 5:1 Ratio, 1.54" Center Distance, 1.72 HP and 291 in-lbs Output Torque at 1750 RPM

Be the first to review this item

ASIN B00769VSHM

Specifications for this item
Number of Items
1
Part Number
F7155KB5J
Item Weight
19 pounds
UPC
884107182513
Brand Name
Boston Gear
Size Name
NEMA 56C Flange Input, Left Output, 5:1 Ratio, 1.54" Center Distance
EAN
0884107182513
UNSPSC Code
25173800
Style Name
1.72 HP and 291 in-lbs Output Torque at 1750 RPM

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 15 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Boston Gear F7155KB5J gearbox, 5:1 ratio, 1.54" center distance rated for 1.72 HP @ 1750 RPM input at service class 1
  • Output Torque capacity is 291 inch lbs at 1750 RPM input speed with NEMA 56C flange input
  • Precision ground gearing provides smooth, quiet operation for maximum life and high power density
  • Compact, high reduction gearbox with NEMA flanged input and rugged cast iron housing
  • High strength "stress proof" steel output shaft supported by oversize tapered roller bearings
  • Gearbox is supplied pre-lubricated with Boston Gear UH16460 lubricant for maximum torque capacity

Package Details

Shipping Weight: 20.1 pounds
Package Size: 9.9 x 9.8 x 9.7 inches

Product Description

Gearbox is pre-lubricated for mounting position #1 but other mounting positions may require additional oil. The load ratings are based on Boston Gear UH16460 lubrication filled to the proper level. The maintenance/installation manual can be found in the literature section at www.bostongear.com. and will be included with each gearbox. Cad models 2D and 3D can be downloaded from BostSpec2 at www.bostongear.com. Please see the Boston Gear enclosed gearing catalog P-1485 for alternate shafting and mounting configurations.
