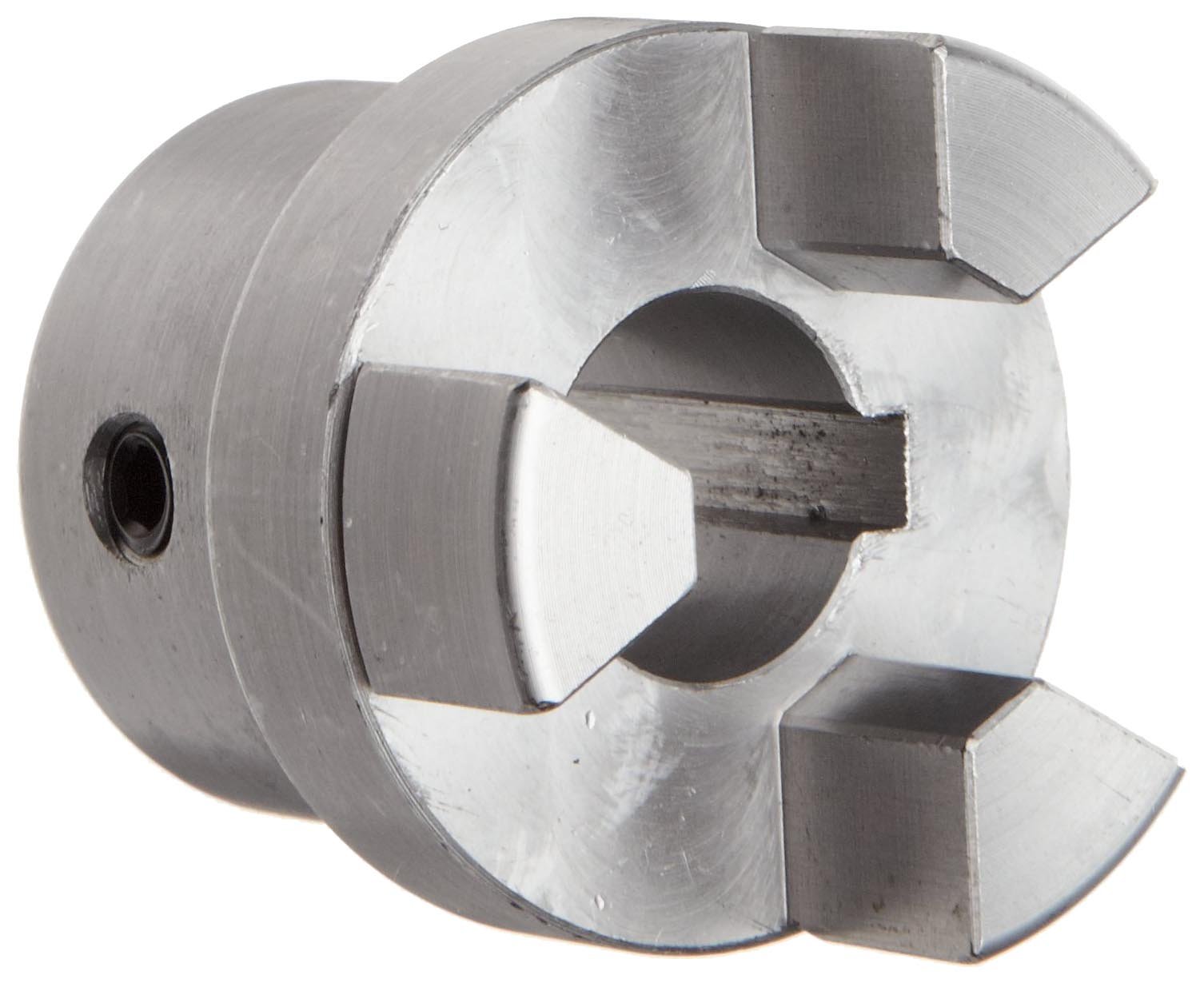

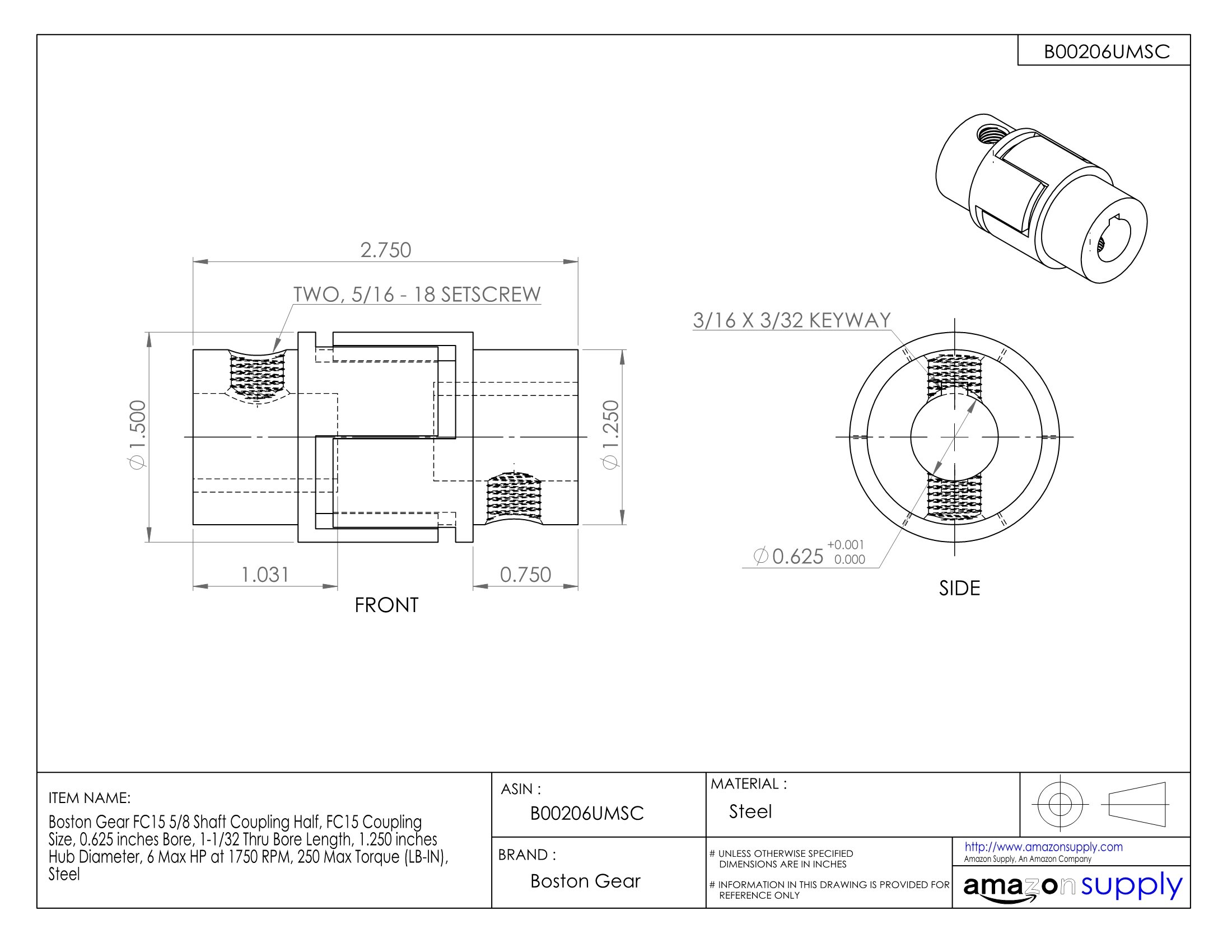

Boston Gear FC155/8 Shaft Coupling Half, FC15 Coupling Size, 0.625 inches Bore, 1-1/32 Thru Bore Length, 1.250 inches Hub Diameter, 6 Max HP at 1750 RPM, 250 Max Torque (LB-IN), Steel

Be the first to review this item

ASIN B00206UMSC

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
FC155/8
UPC
781711082546
Brand Name
Boston Gear
EAN
0781711082546
UNSPSC Code
31163000

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 8 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hub half of 3-jaw shaft coupling for connecting two shafts together in high torque and shock applications
  • No lubrication required, not affected by oil, grease, dirt, or moisture
  • Steel for strength and durability
  • Keyway and set screw locking for secure attachment
  • 5/8" bore

Package Details

Shipping Weight: 0.45 pounds
Package Size: 2.8 x 2.6 x 1.5 inches

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
