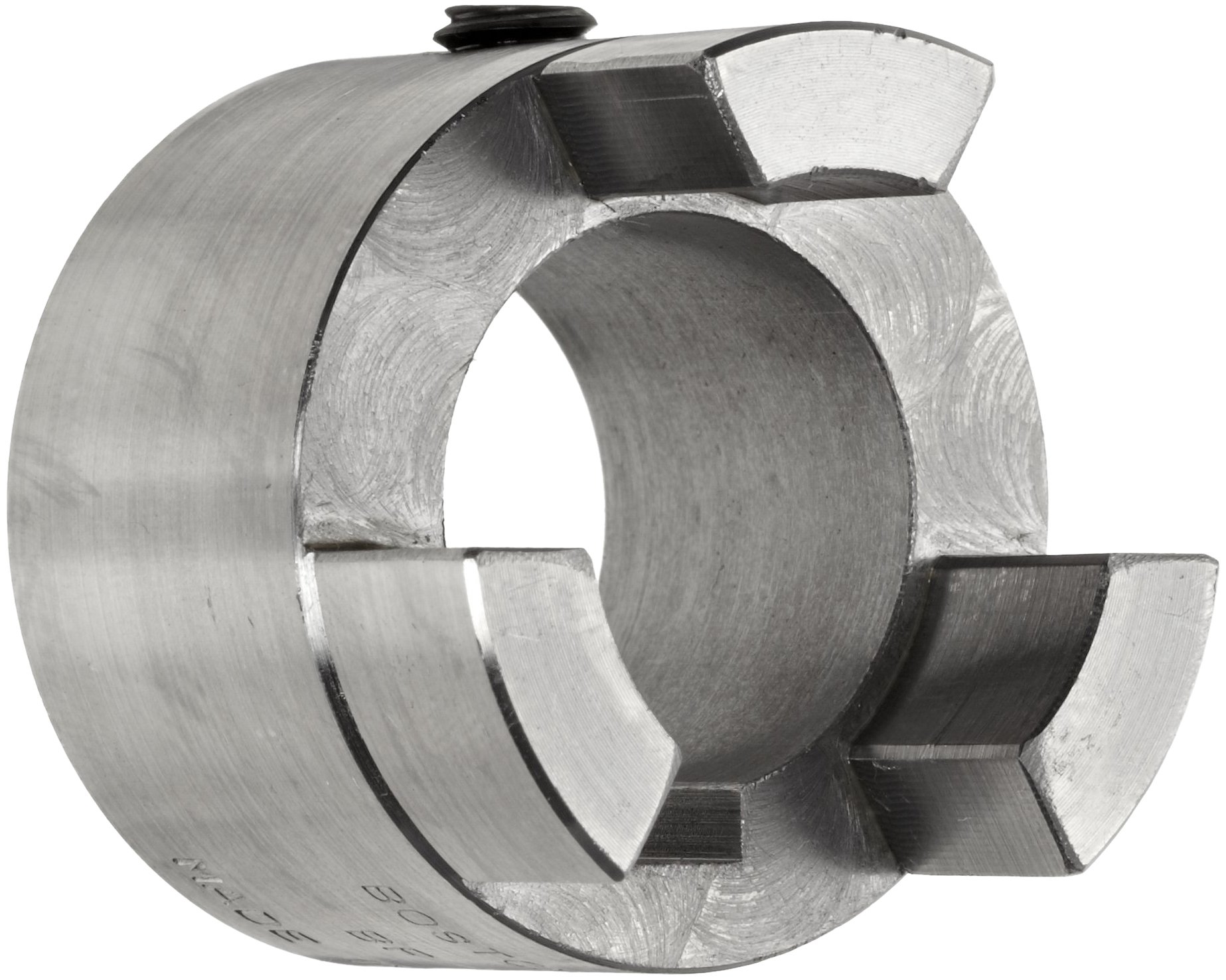

Boston Gear BF1311 Shaft Coupling Hub, Inch, 1'' Bore, 1.97'' OD, 2.44'' Length, No Keyway

Be the first to review this item

ASIN B004NEWHVY

Specifications for this item
Bore Diameter
1  inches
Part Number
BF1311
Trade Size
BF13
Brand Name
Boston Gear
Hub Style
BF
Number of Items
1
UPC
781711117521
Outside Diameter
1.97  inches
EAN
0781711117521
Bore Depth
1  inches
UNSPSC Code
31163010
System of Measurement
Inch
Overall Length
2.44  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 3 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hub half of 3-jaw shaft coupling for connecting two shafts together
  • Coupling set accommodates misalignment of up to 1-1/2 degree angular and .002 lateral
  • Powdered metal for resistance to wear and long service life
  • 1" bore for connecting shaft
  • Set screw locking for secure attachment to a guided shaft

Package Details

Shipping Weight: 0.4 pounds
Package Size: 2 x 2 x 0.9 inches

Product Description

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Boston Gear manufactures gears, gear drives, bearings, valves, shaft collars, couplings, and other power and fluid transmission components. The company, founded in 1877, is headquartered in Charlotte, NC, and meets International Organization for Standardization (ISO) standard 9001:2008 standard.
