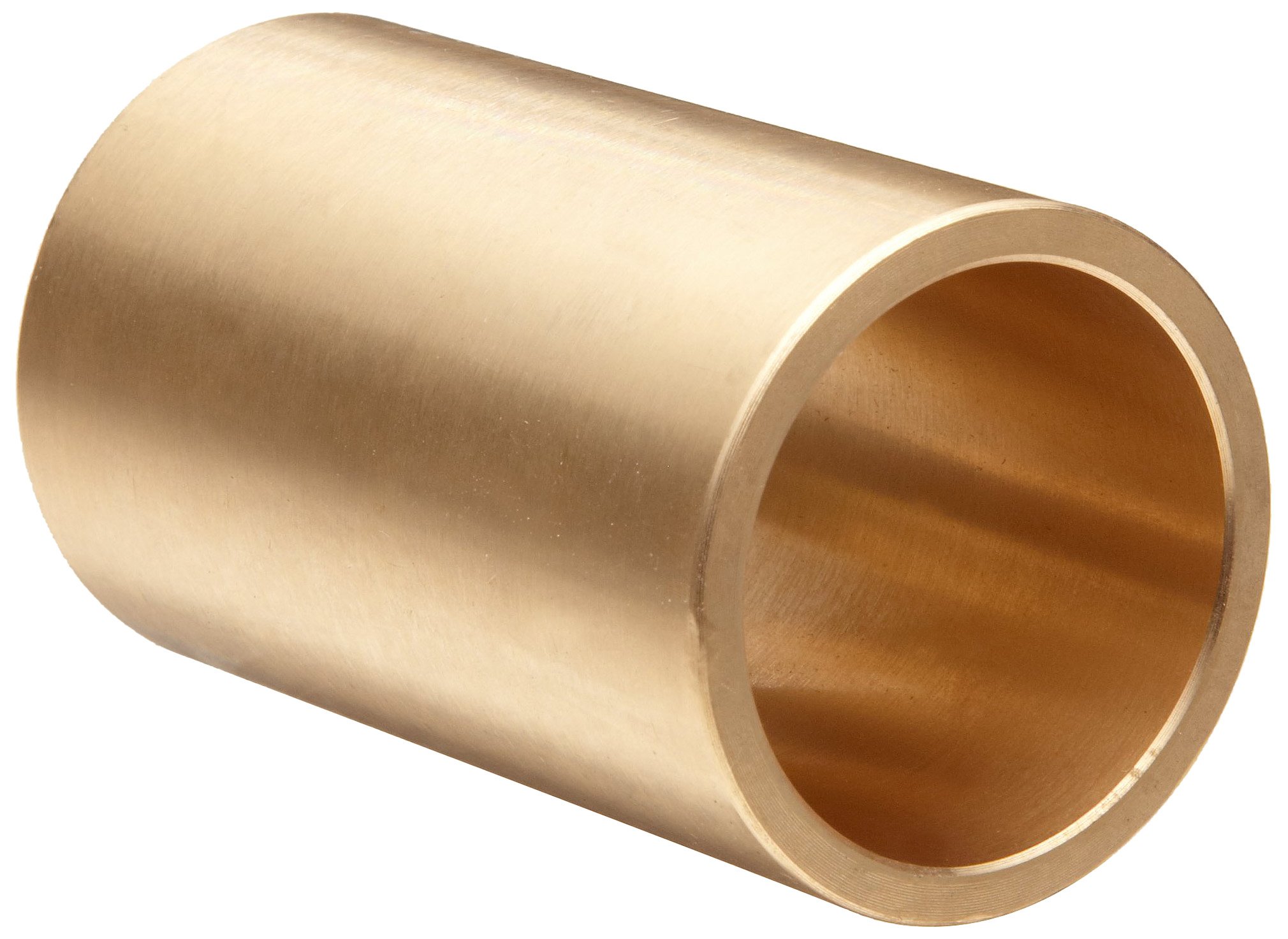

Boston Gear Bear-N-Bronz Plain Cylindrical Sleeve Bearing, SAE 660 Cast Bronze, Inch

Be the first to review this item

Product Specifications
Material Type
Bronze
UNSPSC Code
31171509
Brand Name
Boston Gear
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 16 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 454 Next 20 »
Bore Diameter Outside Diameter Width Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 454 Next 20 »
0.313" 0.5" 1.250" 1-1/4" B004NEWKMK Temporarily out of stock. Order now and we'll deliver when available. $9.94 Buy Options
0.438" 0.563" 1.250" 1-1/4" B004NEWKHU yes $10.10 Buy Options
0.438" 0.563" 1.500" 1-1/2" B004NEWL38 yes $11.03 Buy Options
0.438" 0.625" 2.000" 2" B004NEWM0A Temporarily out of stock. Order now and we'll deliver when available. $13.87 Buy Options
0.438" 0.75" 1.250" 1-1/4" B004NEWM0U yes $14.66 Buy Options
0.438" 0.75" 1.500" 1-1/2" B004NEWAYI yes $13.82 Buy Options
0.438" 0.813" 1.500" 1-1/2" B004NEWBE2 yes $16.20 Buy Options
0.5" 0.813" 2.250" 2-1/4" B004NEWD86 yes $18.58 Buy Options
0.5" 0.875" 1.500" 1-1/2" B004NEW9VM Usually ships in 4 to 6 weeks $14.77 Buy Options
0.5" 1" 1.000" 1" B004NEW9QW yes $5.92 Buy Options
0.5" 0.625" 2.250" 2-1/4" B004NEWAYS Usually ships in 4 to 6 weeks $14.46 Buy Options
0.5" 1" 1.500" 1-1/2" B004NEWDKO yes $16.97 Buy Options
0.563" 0.688" 1.500" 1-1/2" B004NEWKNO yes $10.11 Buy Options
0.563" 0.688" 1.750" 1-3/4" B004NEWL42 yes $11.18 Buy Options
0.563" 0.688" 2.000" 2" B004NEW9L2 yes $14.77 Buy Options
0.563" 0.688" 2.250" 2-1/4" B004NEWA48 yes $15.41 Buy Options
0.563" 0.75" 1.250" 1-1/4" B004NEWKNY Temporarily out of stock. Order now and we'll deliver when available. $10.60 Buy Options
0.563" 0.75" 1.500" 1-1/2" B004NEWL6U yes $7.23 Buy Options
0.563" 0.75" 2.500" 2-1/2" B004NEWBUQ Usually ships in 1 to 2 months $18.09 Buy Options
0.563" 0.813" 1.000" 1" B004NEWKCA yes $9.55 Buy Options

Key Features

  • Plain sleeve bearing for supporting radial loads
  • SAE 660 continuous cast bronze for strength, low friction, and resistance to wear
  • Suitable for heavy loads and high speeds
  • Maximum load value of 3,000 psi and maximum pressure velocity (PV) value of 75,000
  • Operating temperature range of -450 to 500 degrees F (-267 to 260 degrees C)

Product Description

This Boston Gear Bear-N-Bronz bronze plain sleeve bearing supports high radial loads. It is made of Society of Automotive Engineers (SAE) 660 continuous cast bronze for strength, low friction, and resistance to wear, and requires lubrication with oil. The bearing has a maximum load value of 3,000 psi (pounds per square inch), a maximum velocity value of 750 sfpm (surface feet per minute), and a maximum pressure velocity (PV) value of 75,000. It operates at temperatures ranging from -450 to 500 degrees F (-267 to 260 degrees C). This plain sleeve bearing meets ASTM International standard B584-78 for quality assurance, and is suitable for use in various applications such as automobiles, pumps, office machines, and home appliances, among others.

Plain bearings provide low-friction sliding contact for relative motion between parts of a machine. They are the simplest type of bearing, with no rolling elements, and there are three basic types of plain bearings: radial plain bearings (also called sleeve bearings or bushings) to support rotating or reciprocating shafts, thrust bearings (also called washers) to support axial loads on shafts, and linear bearings to support and guide the motion of parts in a straight line. Flanged sleeve bearings have a flange on one end to support axial loads. Spherical plain bearings are radial bearings that allow for angular misalignment of the shaft. Plain bearings are made from durable, low-friction materials such as sintered or cast bronze alloys, plastic, or a combination of a metal shell and a plastic bearing surface. They can be lubricated externally or by a lubricant embedded in the bearing material. Plain bearings are used in automobiles, construction and mining equipment, textile manufacturing equipment, and robotics, among others.

Boston Gear manufactures gear drives, variable speed drives, clutches, and components such as sprockets and bearings. The company, founded in 1877 and headquartered in Charlotte, NC, meets International Organization for Standardization (ISO) standard 9001 for quality assurance.
