BOSTITCH HP118K 23-Gauge 1/2-Inch to 1-3/16-Inch Pin Nailer

Be the first to review this item


Specifications for this item
Part Number
Item Weight
4.2 pounds
094703793383 , 077914043447
Brand Name
0094703793383 , 0077914043447 , 5526679991203
Power Source Type
7 Year Limited Warranty

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 6 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • 1/2-Inch to 1-3/16-Inch 23-Gauge Pin Nailer, Low-Profile Nose-Piece Tapers for Clear Site
  • Adjustable High/Lower Power Switch for Depth Control and Longer Life
  • Lightweight and Durable Aluminum Housing
  • Includes Nailer, 1/4" Air Fitting, Oil, Nail Selection, Carrying Case, and Belt Hook
  • 7-Year Limited Warranty

Package Details

Shipping Weight: 4.45 pounds
Package Size: 11.8 x 11.3 x 3 inches

Product Description

The Bostitch HP118K 23-Gauge 1/2-Inch to 1-3/16-Inch Headless Pin Nailer delivers the accuracy and comfortable handling you need to make quick work of detailed finish, trim, and woodworking projects. This pin nailer offers you the power of pneumatic action backed by Bostitch's long history of producing innovative fastening technology for dependable on-the-job performance.

The Bostitch 23-Gauge 1/2-Inch to 1-3/16-Inch Pin Nailer features:
  • Tapered nosepiece for spot-on precision
  • 60 in./lbs. driving power for secure nailing
  • Wide range of 23-gauge pin nails for ultimate versatility
  • Reversible Belt hook for added convenience

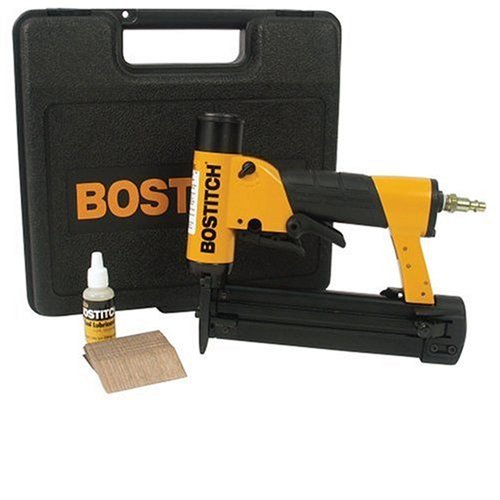

The kit includes the pin nailer, tool lubricant, and a set of 23-gauge pin nails, all transportable in an exclusive Bostitch carrying case. View larger .

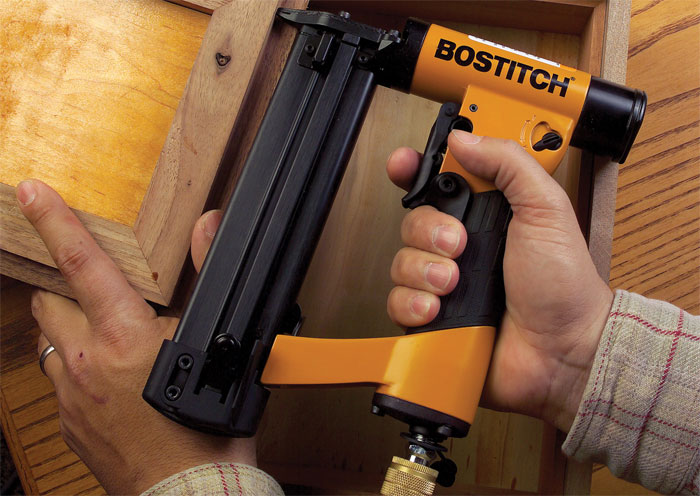

The over-molded comfort grip is designed for easy, no-slip maneuvering. View larger .

The tapered nosepiece achieves precision for intricate work like picture framing. View larger .
Powerful, Adjustable Fastening for Precise, Clean Work
The Bostitch HP118K is well-suited for use with slim or delicate materials that might be split by an 18-gauge nail or brad. With this tool and set of 23-gauge pin nails, you can save time and money by preventing damage to work surfaces. An ideal choice for woodworking applications, the HP118K provides effective fastening for glue sets that are tough or impossible to clamp, and it will help you avoid the witness marks or holes that can be left by other driver heads, letting you create clean finished products.

Designed to keep you in control at all times, this nailer offers an adjustable high/low power control that sets pin depths without requiring you to adjust your compressor setting. It backs this precision with the ability to deliver 60 in./lbs. of driving power, so you can be sure that each pin is securely seated.

With the ability to handle 23-gauge headless pin nails that range from 1/2 inch to 1-3/16 inches, this nailer enables you to utilize a wide range of fasteners for job-specific performance. And its magazine capacity of 200 pins allows you to work without stopping to reload.

Ergonomic Design for Comfort and Convenience
The HP118K offers a full range of design features dedicated to smooth, safe, and intuitive use. It features a low-profile nosepiece that tapers down to the contact point which offers a clear line-of-site for perfect placement. An over-molded grip ensures slip-free handling, and it is balanced to sit comfortably in your hand during extended use. And, for added comfort while you work, the nailer's rear exhaust directs air away from your face. The pin nailer also features a reversible belt hook for convenience on the job.

Its compact body is easy to maneuver, which is of particular importance when doing intricate work like crafting custom cabinetry or picture frames, and, thanks to a durable, lightweight aluminum housing, it weighs just 2.5 pounds.

Reliable, Pneumatic Performance
This lightweight durable tool operates between 70 and 120 PSI and includes a 1/4-inch NPT fitting for easy coupling with your air hose and compressor.

This pin nailer is backed by a manufacturer's 7-year limited warranty.

How to Load the HP118K
1. Depress the spring loaded lever as shown bewlow in loading instructions Fig.1.
2. Pull sliding portion of magazine back as shown bewlow in loading instructions Fig.2
3. Load the stick of pins as shown bewlow in loading instructions Fig.3 with the arrow pattern pointing down as shown. If pins have black dots instead of arrows, the dots should be positioned up.
4. Close magazine as shown bewlow in loading instructions Fig.4 until it latches in the forward position. The tool is now ready for use.

What's in the Box
HP118K 23-Gauge Pin Nailer; 1/4-inch air fitting; 500 each of 1/2-inch pins, 3/4-inch pins, and 1-inch pins; tool lubricant; and carrying case.

Loading Instructions and Available Bostitch Fasteners:
Model #



23 ga. 1/2" Headless Pin Nails - 3,000 ct.
23 ga. 3/4" Headless Pin Nails - 3,000 ct.
23 ga. 1" Headless Pin Nails - 3,000 ct.
23 ga. 1-3/16" Headless Pin Nails - 3,000 ct.

Load instructions. View larger.
