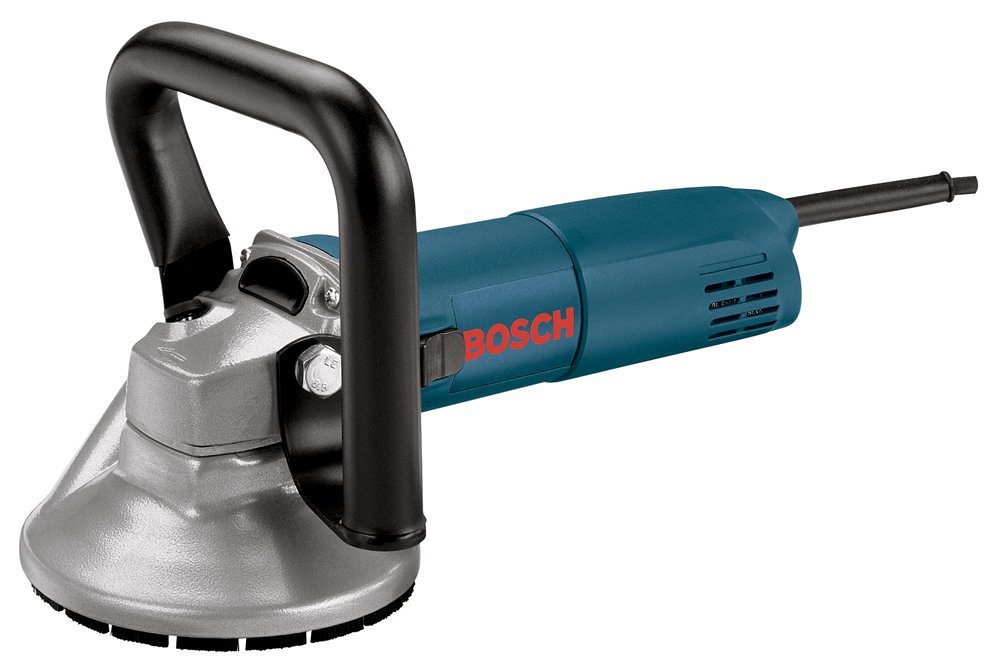

Bosch 1773AK 5-Inch Concrete Surfacing Grinder

Be the first to review this item

ASIN B0000719W8

Specifications for this item
Number of Items
1
Part Number
114-1773AK
Item Weight
0 pounds
UPC
000346320404
Brand Name
Bosch
EAN
0000346320404
Voltage
120.00  Volts
Power Source Type
electric-powered
Warranty
1 year
UNSPSC Code
27112749

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 23 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 10-amp concrete surfacing grinder, perfect for smoothing floor pavement, removing graffiti, cleaning concrete surfaces
  • Also ideal for removing irregularities, formwork seams and protrusions
  • Double sealed ball bearings and two -Inchlip-sealing-Inch protective rings for added protection against dust contamination
  • 5-Inch wheel diameter, 11,000 RPM
  • Wrap-around auxiliary handle for easy handling

Package Details

Shipping Weight: 14.95 pounds
Package Size: 19.8 x 14.9 x 10.6 inches

Product Description

Amazon.com

Perfectly suited for the building trade, the Bosch 1773AK 5-Inch Concrete Surfacing Grinder makes fast, safe work of refurbishing and de-burring exposed concrete. Also ideal for removing irregularities, formwork seams, and protrusions, the 1773AK features a dependable, 10-amp motor, diamond cup wheels, and a dust management feature.

The Bosch 1773AK 5-Inch Concrete Surfacing Grinder includes:
  • Auxiliary handle
  • Flange kit
  • Spanner wrench
  • Five-inch diamond cup wheel (DC510)
  • Vacuum adapter (VAC002)
  • Three brush rings
  • Carrying case

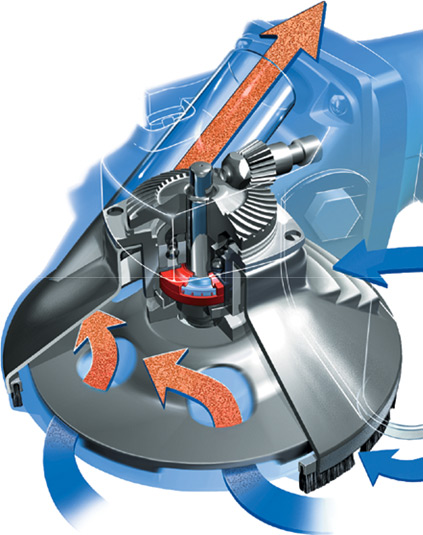

The specially designed head provides clean, safe dust extraction. View larger.
View Product Demo.

Features include Bosch's trademarked Constant Response Circuitry and automatic restart protection. View larger.

Bosch diamond cup wheels last longer and provide safer grinder operation. View larger.

Choose the right diamond cup wheel for the job. View larger.
Powerful, 10-Amp Motor for Dependability
Whether you're working in a granite shop, smoothing floor pavement, erasing graffiti, removing weather-worn paint, or cleaning surfaces, the 1773AK is up to the task, thanks to its powerful 10-amp motor that delivers 11,000 RPM. Bosch's trademarked Constant Response Circuitry maintains constant motor speed under even the toughest jobs, providing overload protection and delivering a reduced-torque soft start that safeguards your work surface.

For added safety, automatic restart protection guards against restart after a power failure, and it ensures that the tool is never powered on unless you need it to be. And a lock-on/lock-off switch lets you tackle extended-use applications comfortably.

Diamond Cup Wheels for Precision and Safety
Bosch diamond cup wheels, like the five-inch wheel included with the 1773AK, last longer, offer reliable performance, and provide safe grinder operation. Bosch diamond cup wheels are crafted with high-grade diamond segments, and they are manufactured using a process that includes 100-percent dynamic counterbalancing of every grinding head for comfortable, reliable, and vibration-free work.

The diamond cup wheels' five-hole dust extraction design provides an optimal combination of allowable airflow and material removal that complements the rest of the 1773AK's dust removal features.

Innovative Dust Management for Clean, Safe Operation
The 1773AK features a convenient dust extraction port and comes packaged with a vacuum adapter to help keep your work area clear, safe, and free of dust. This concrete grinder also boasts a specially designed head for surfacing applications, which combines with the Bosch diamond cup wheel to ensure clean, safe dust extraction that exceeds both UL and OSHA safety requirements.

The dust collection system also utilizes a replaceable brush ring to help you maintain dust-free working conditions over time.

Sealed Against Dust and Debris for a Long Life
With epoxy-coated field windings, a sealed switch, double-sealed ball bearings, and two lip-sealing rings to protect against dust contamination, the 1773AK is built to stand up to the toughest jobsite conditions.

For added convenience, the grinder's spindle lock allows for quick wheel changes on the job. And when preventive maintenance is required to keep your concrete surfacing grinder in top shape, the trademarked Service Minder light lets you know.

Practical, Ergonomic Design for Ease of Use
A slim, ergonomic barrel means you can grip the 1773AK comfortably and securely, even when you're removing mortar from a bathroom floor or working in another tight space. The grinder's wraparound auxiliary handle provides control from a variety of angles, and it offers multiple hand positions for decreased operator fatigue.

The 1773AK concrete surfacing grinder is backed by a one-year warranty, 30-day, money-back guarantee, and one-year service protection plan.

What's in the Box
Bosch 1773AK concrete surfacing grinder, auxiliary handle, flange kit, spanner wrench, five-inch diamond cup wheel (DC510), vacuum adapter (VAC002), three brush rings, and carrying case.

The 1773AK is ideal for everything from form-smoothing to floor prep and granite installation.

From the Manufacturer

The Bosch 1773AK 10-Amp 5-Inch Concrete Surfacing Grinder is perfect for smoothing floor pavement, removing graffiti, cleaning concrete surfaces. Also ideal for removing irregularities, formwork seams and protrusions. Double sealed ball bearings and two -Inchlip-sealing-Inch protective rings for added protection against dust contamination. 5-Inch wheel diameter, 11,000 RPM. Wrap-around auxiliary handle for easy handling
