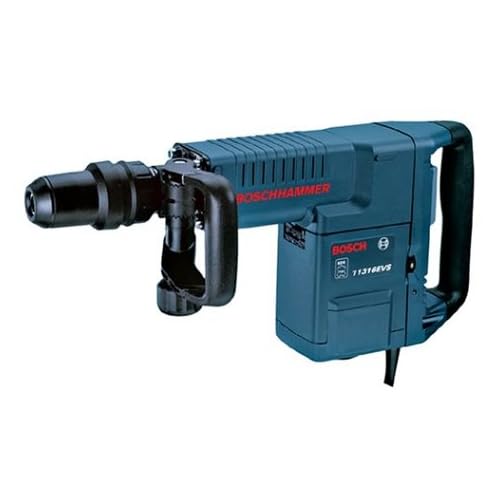

Bosch 11316EVS SDS-Max Demolition Hammer

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Item Weight
22.5 pounds
Brand Name
120.00  Volts
Power Source Type

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 9 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • SDS-max bit system - tool-free bit changes with automatic bit locking, dust protection and maximum impact energy transfer rate
  • Variable-speed dial - for controlled chipping applications
  • Constant Response Circuitry - - Provides soft-start - Maintains constant speed under load - Provides overload protection
  • Service Minder light - indicates when preventative maintenance is required
  • Vario-Lock positioning - rotates and locks chisel into 12 different positions to optimize working angle

Package Details

Shipping Weight: 32.4 pounds
Package Size: 25 x 16.7 x 6.2 inches

Product Description

Toolhounds know the old saying regarding a tool that does only one job, but does it like nothing else can. That’s certainly the case with this demolition hammer from Bosch. It may not be versatile, but it absolutely does its job.

This model is a favorite because it’s so user-friendly, weighing in at under 23 pounds and about as many inches in length – practically diminutive next to its competition. Its power, however, is not at all relative to its size, offering a range of impact energy from 4.4 to 18.4 ft./lbs. and up to 1,890 blows per minute, reducing tough concrete to dust.

Part of the beauty of this hammer is that it actually doesn’t want you to do the work for it; we found that exerting force on it actually slows you down. Instead, firm, steady pressure got us the best results. We particularly like the design of this hammer; instead of the traditional linear approach, Bosch built it more like a pistol, and that may (or may not, we’re not rocket scientists) be part of why so little vibration is felt. The rear handle is generously padded, and the auxiliary handle rotates 360 degrees so you can set it exactly where you need it. Another check in the ergonomics column comes from the electronic feedback system and the soft start it provides, keeping torque to a minimum.

Bit changes are fast and easy with the SDS-max system. Just twist the bit and push it in until it locks into place automatically, and you’re ready to work. The vario-lock is an ingenious feature that lets you position your spade or gouge at exactly the attitude you need. While in the vario-lock setting, you just rotate the locking sleeve to one of 12 positions at 30-degree increments, and an easy twist of the locking sleeve secures the bit in position.

The variable speed dial lets you choose from six speed settings, appropriate for chipping everything from plaster work up to concrete, and the circuitry will keep your set impact rate constant between no-load and load conditions.

It’s an investment, to be sure, but this tool will pay you back in spades.--Kris Jensen-Van Heste

What’s in the Box
Hammer, auxiliary handle, carrying case

From the Manufacturer

The Bosch 11316EVS SDS-Max demolition hammer features a powerful 14 amp motor with a hammer mechanism, which hits 10 percent harder. The unit's electronic feedback circuitry maintains maximum performance levels at all times, while its electro-pneumatic impact system maximizes impact force and minimizes vibration. The hammer's improved tool holder has advanced heat treatment and dust-seal protection for long life. Its slide on/off switch and push-to-strike design reduces user fatigue. In addition, the ServiceMinder light indicates the need for service eight hours prior to tool shutdown. The 12-position Vario-Lock helps optimize different working angles. Includes 360-degree side handle and case.


  • SDS-Max bit system offers tool-free bit changes with automatic bit locking, dust protection, and maximum-impact energy transfer rate
  • Variable-speed dial for controlled chipping applications
  • Constant Response circuitry provides soft-start and maintains constant speed under load, plus provides overload protection
  • ServiceMinder light indicates when preventative maintenance is required
  • Vario-Lock positioning rotates and locks chisel into 12 different positions to optimize working angle
  • Padded rear handle absorbs shock for operator comfort
  • 360-degree auxiliary handle provides a wide range of movement along with operator comfort
  • Double-insulated, UL-listed, complies to OSHA


  • Rating: 120 volts AC/DC
  • Amps: 14 amps
  • No-load beats per minute: 900 to 1,890 bpm
  • Impact energy: 4.4 to 18.4 ft./lbs.
  • Length: 22-1/2 inches
  • Weight: 22-1/2 lbs.
  • Cord length: 12 feet


  • Auxiliary handle
  • Carrying case

This Bosch power tool comes with a one-year limited warranty from the date of purchase.
