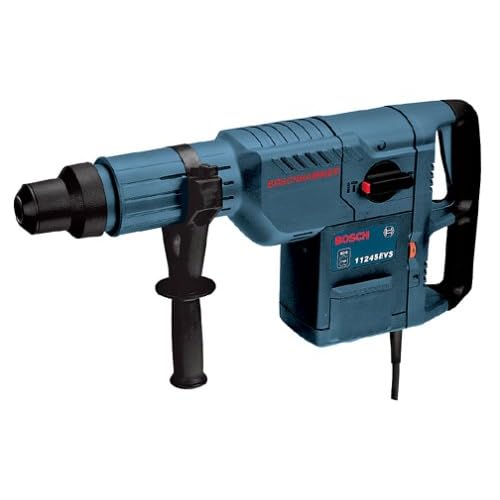

Bosch 11245EVS 2-Inch SDS-Max Rotary Hammer

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Item Weight
0 pounds
Brand Name
120.00  Volts
Power Source Type

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 30? Order in-stock items in the next 23 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Hammer with SDS-max bit system for tool-free bit changes, automatic bit locking, dust protection, and efficient impact-energy transfer rate
  • Combination dual mode selector has two modes of operation, rotary hammer and hammer only mode
  • Variable-speed dial provides accurate bit starting and controlled chipping applications
  • Include auxiliary handle, carrying case
  • Measures 23-1/2 inches long, weighs 24-1/2 pounds, has a 1-year warranty

Package Details

Shipping Weight: 34.95 pounds
Package Size: 24.7 x 16.5 x 6 inches

Product Description

From the Manufacturer

The Bosch 11245EVS rotary hammer features an SDS-Max drive system, and its powerful 14 amp motor provides unmatched drilling performance. The hammer includes two modes of operation: hammer/rotation and hammer-only. The tool's electro-pneumatic impact system maximizes impact force and minimizes vibration, while the 12-position Vario-Lock helps optimize the work angle. In addition, the hammer's electronic feedback circuitry maintains maximum performance levels at all times. The ServiceMinder light indicates the need for service eight hours prior to tool shutdown, while the improved tool holder ensures advanced heat treatment and dust-seal protection for long life. Includes 360-degree auxiliary handle and case.


  • SDS-Max bit system offers tool-free bit changes, with automatic bit locking, dust protection, and efficient impact-energy transfer rate
  • Combination dual-mode selector delivers 2 modes of operation: rotary hammer and hammer-only mode
  • Variable-speed dial for accurate bit starting and controlled chipping applications
  • Constant Response circuitry provides soft-start and maintains constant speed under load, as well as overload protection
  • ServiceMinder light indicates when preventative maintenance is required
  • Vario-Lock positioning rotates and locks chisel into 12 different positions to optimize working angle
  • Padded rear handle absorbs shock for operator comfort
  • Integral clutch helps minimize torque reaction
  • 360-degree auxiliary handle provides a wide range of movement along with operator comfort
  • Double-insulated, UL-listed, complies to OSHA


  • Rating: 120 volts
  • Amps: 14 amps
  • No-load speed: 120 to 250 rpm
  • No-load beats per minute: 1,100 to 2,500 bpm
  • Impact energy: 13.3 ft./lbs.
  • Max hole diameter in concrete: 2 inches
  • Max hole diameter in concrete (core bit): 6 inches
  • Max hole diameter in concrete (thru hole bit): 3-1/8 inches
  • Optimal concrete capacity range: 3/4 to 1-3/4 inches
  • Length: 23-1/2 inches
  • Weight: 24-1/2 lbs.


  • Auxiliary handle
  • Carrying case

This Bosch power tool comes with a one-year limited warranty from the date of purchase.
