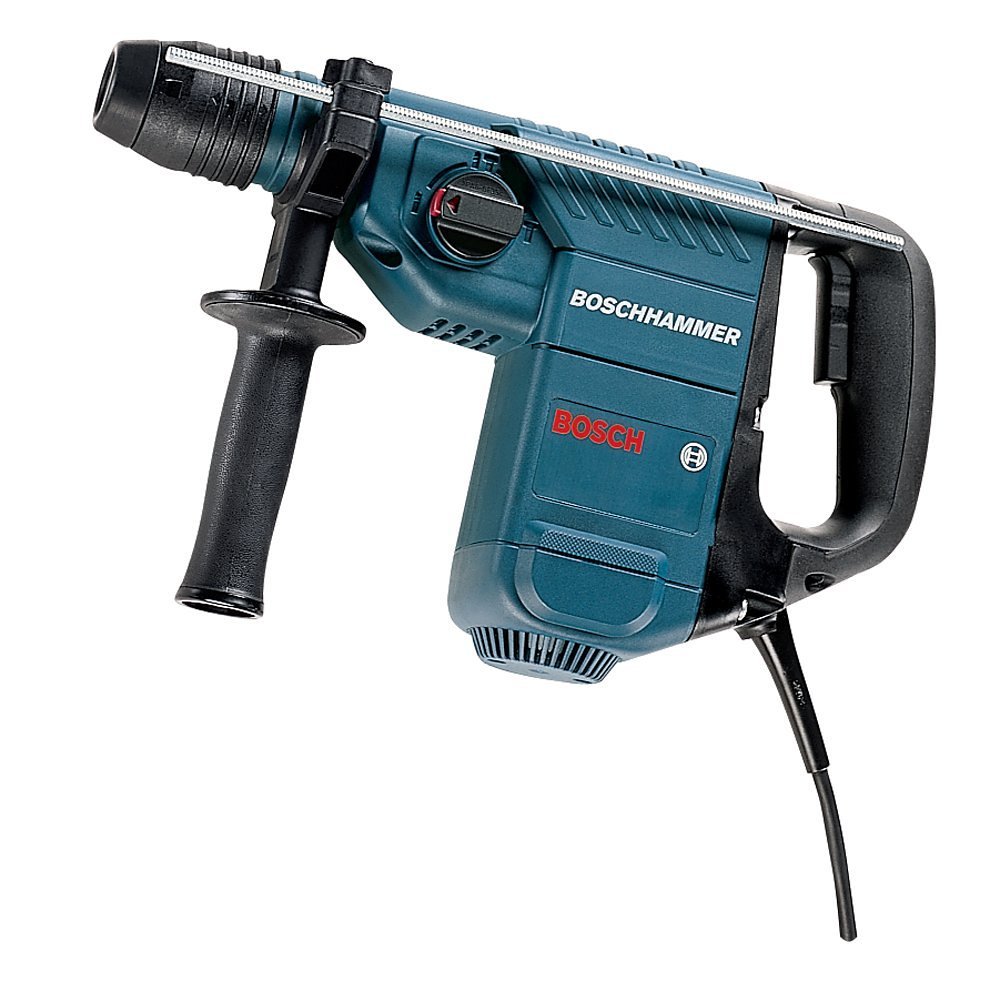

Bosch 11236VS 7.5 Amp 1-1/8-Inch SDS Rotary Hammer

Be the first to review this item

ASIN B00002246R

Specifications for this item
Number of Items
1
Part Number
2611-8935
UPC
000346304619
Brand Name
Bosch
EAN
0000346304619
Voltage
120.00  Volts
Power Source Type
corded-electric
UNSPSC Code
20111603

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Variable speed (0-3,900 beats per minute) functionality with tool-free bit changes
  • Multi-function selector includes three modes of operation--rotation only, rotary hammer, and hammer only
  • Double-insulated, OSHA-compliant hard plastic construction
  • Includes hammer, handle, depth gauge, and case
  • Backed by one-year warranty

Package Details

Shipping Weight: 18.6 pounds
Package Size: 20.1 x 16 x 5.5 inches

Product Description

From the Manufacturer

The Bosch 11236VS 7.5 amp hammer runs on a variable-speed 0 to 850 rpm motor with 0 to 3,900 beats per minute. The hammer's Vario-Lock positioning enables the user to rotate and lock the chisel into 36 different positions to optimize the working angle. The unit features three operational modes for versatility: hammer only, for light chipping applications with chisels; rotation only, for drilling wood, steel, and building materials with optional chuck; and hammer/rotation, for drilling concrete, brick, stone, and masonry. The tool's maximum capacities are 1-1/8 inches in concrete, 1/2 inch in steel, 1-1/4 inches in wood, and 4 inches in thin-wall core bit. Includes 360-degree auxiliary handle, depth gauge, and carrying case.

Features

  • SDS-Plus bit system offers tool-free bit changes with automatic bit locking, dust protection, and maximum impact-energy transfer rate
  • Multifunction selector offers 3 modes of operation: rotation-only, rotary hammer, and hammer-only mode
  • Variable-speed 3-finger trigger delivers better operator control and accurate bit starting
  • Vario-Lock positioning rotates and locks chisel into 36 different positions to optimize working angle
  • Padded rear handle absorbs shock for operator comfort
  • 360-degree auxiliary handle with built-in depth gauge delivers wide range of movement, along with consistent drilling depth
  • Integral clutch helps minimize torque reaction
  • Double-insulated, UL-listed, complies to OSHA

Specifications

  • Rating: 120 volts AC
  • Amps: 7.5 amps
  • No-load speed: 0 to 850 rpm
  • No-load beats per minute: 0 to 3,900 bpm
  • Impact energy: 2.6 ft./lbs.
  • Max hole diameter in concrete: 1-1/8 inches
  • Max hole diameter in concrete (thin-wall core bit): 3 inches
  • Max hole diameter in wood: 1-1/4 inches
  • Optimal concrete capacity range: 1/4 to 7/8 inch
  • Length: 15-1/4 inches
  • Weight: 9.3 lbs.

Includes

  • Auxiliary handle
  • Depth gauge
  • Carrying case

Warranty
This Bosch power tool comes with a one-year limited warranty from the date of purchase.
