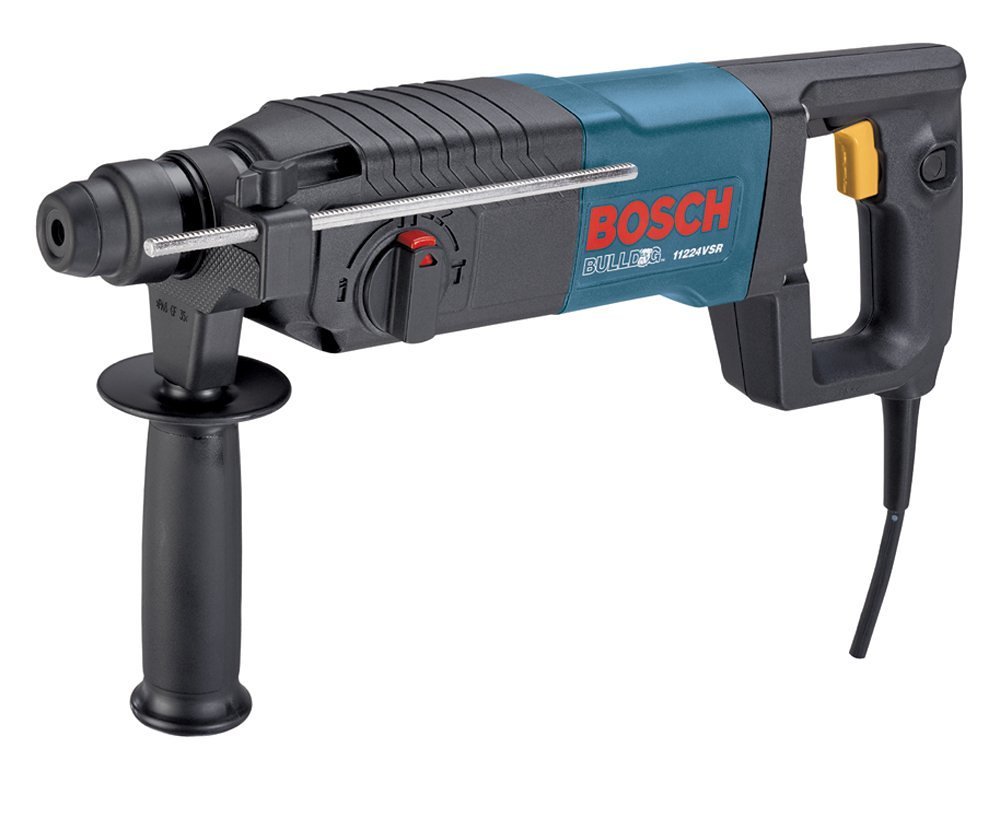

Bosch 11224VSR 7/8-Inch SDS-Plus Bulldog Rotary Hammer

Be the first to review this item

ASIN B00002246T

Specifications for this item
Number of Items
1
Catalog Number
3407 , 340715 , 12 , 114-11224VSR , 11224VSR , BOS11224VSR
UPC
000346276558
Brand Name
Bosch
EAN
0000346276558

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • SDS-plus bit system provides tool-free bit changes with automatic bit locking and dust protection
  • Multi-function selector with3 modes of operation, rotation only, rotary hammer, and hammer only
  • Variable-speed reversing trigger for accurate bit starting as well as removing fasteners or bound bits
  • Vario-Lock positioning rotates and locks chisel into 36 different positions to optimize working angle
  • D-handle design for extra control, ideal for overhead and downward drilling applications

Package Details

Shipping Weight: 11.4 pounds
Package Size: 23.6 x 11.5 x 4.6 inches

Product Description

Amazon.com

Bosch’s 11224VSR 7/8-inch SDS-Plus bulldog rotary offers the utmost in versatility and functionality. It is compact in size and has a powerful 120-volt motor, making it ideal for use during overhead and down drilling operations. This Bosch rotary hammer features an ergonomic design with a D-handle to increase control yet reduce user fatigue. The multiple working angles and operational modes make this rotary hammer a must-have when working with concrete, brick, stone, and masonry.

At a Glance
11224VSR 7/8-Inch SDS-Plus Bulldog Rotary Hammer At a Glance:

  • SDS-plus bit system allows for tool-free bit changes and automatic bit locking

  • Impact force of 1.6 foot-pounds with a powerful 6.9-amp motor for fast removal under load

  • UL listed and ASHA compliant

  • Backed by one-year warranty
At a Glance
11224VSR 7/8-inch SDS-plus bulldog rotary hammer
The 11224VSR's lightweight and ergonomic design makes it ideal for overhead applications (click to enlarge).
Functional Versatility
The 1124VSR SDS-plus bulldog rotary hammer operates in three different modes for convenience and versatility. The first operation is the hammer/rotation for drilling concrete, stone, brick, and masonry. The second operation is hammer only for light chipping applications with chisels. The third operation is rotation only for drilling in wood, steel, and building materials with the optional chuck. The SDS-plus bit system makes for tool-free bit changes and automatic bit locking—plus it provides dust protection and the maximum impact energy transfer rate. Its integral clutch minimized torque reaction, and the variable-speed reversing trigger allows for accurate bit starting and easy removal of fasteners or bound bits.

Prevailing Performance
With a 6.9-amp, 120-volt motor, the bulldog rotary hammer packs a punch despite weighing only 6.5 pounds and measuring 17-1/2 inches long. Its no-load speed of 0-1,100 RPM and no-load beats per minute of 0-6,150 BPM—along with 1.5 foot-pounds of impact force—make the 11224VSR ideal for use with a variety of materials. It is capable of a 2-1/2-inch maximum hole diameter in concrete (thin-wall core bit), a 1-inch maximum hole diameter in wood, and a 3/16-inch to 5/8-inch optimal concrete capacity range.

Compact and Ergonomic
The SDS-plus’s 360-degree auxiliary handle is equipped with a built-in depth gauge, which provides users a wide range of movement while maintaining consistent drilling depth. Its D-handle design delivers additional control, especially in down-drilling or overhead applications that typically cause user fatigue. Exclusive to Bosch, the Vario-Lock positioning rotates and locks the chisel into 36 positions to optimize the perfect working angle.

What's in the Box
The 11224 VSR includes one Bosch 11224VSR 7/8-inch SDS-plus bulldog rotary hammer, one auxiliary handle, one depth gauge, and one carrying case.


11224VSR 7/8-inch SDS-plus bulldog rotary hammer
Bosch’s 11224VSR 7/8-inch SDS-plus bulldog rotary hammer is ideal for use with concrete, brick, stone, and masonry (click to enlarge).
