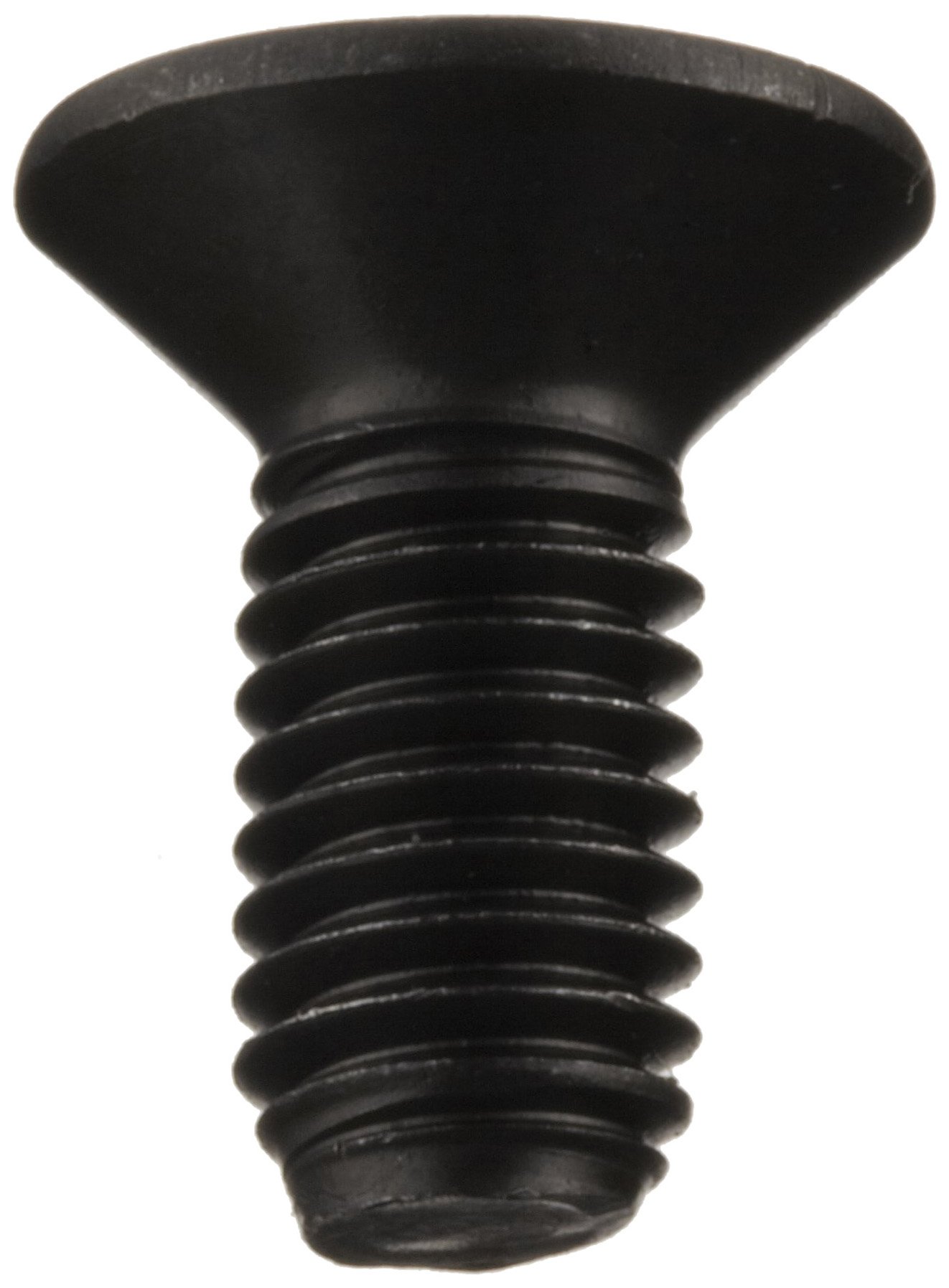

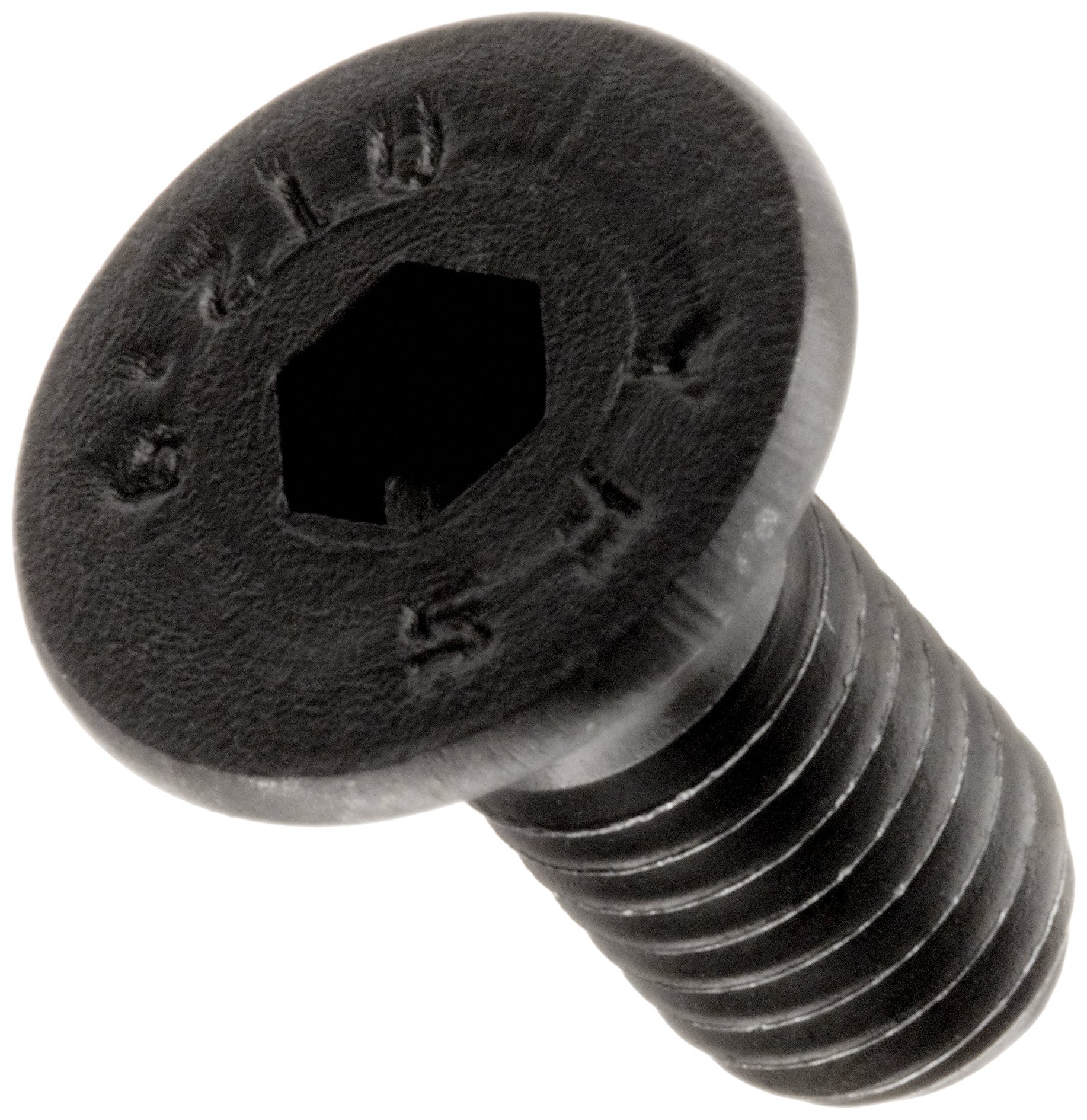

Class 12.9 Alloy Steel Socket Cap Screw, Black Oxide Finish, Flat Head, Internal Hex Drive, Meets DIN 7991, 6mm Length, Fully Threaded, M2-0.4 Metric Coarse Threads, Imported (Pack of 100)

Be the first to review this item

ASIN B005DS4UIC

Specifications for this item
Drive Style
Internal Hex
Head Height
0.127  inches
Part Number
B005DS4UIC
Thread Style
Metric Coarse
Brand Name
Small Parts
Specification Met
DIN 7991
Grade
Class 12.9
Thread Style
Right Hand
Number of Items
100
Material Type
Alloy Steel
Thread Coverage
Fully Threaded
Hex Wrench
1.3  millimeters
Size Name
M2-0.4
Head Diameter
0.411  inches
Exterior Finish
Black Oxide
Thread Class
6G
Head Style
Flat
UNSPSC Code
31161500
Import Designation
Imported
Thread Size
M2-0.4
Overall Length
6  millimeters
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 22 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Class 12.9 alloy steel is often used in applications where strength is the primary consideration
  • Black oxide finish offers mild corrosion resistance and lubricity
  • Flat head is cone shaped for use in countersunk holes and has a flat top that fits flush with the mated surface
  • Internal hex drive has a hexagonal slot that turns using an Allen key driver
  • Meets DIN 7991 specifications

Package Details

Shipping Weight: 0.05 pounds
Package Size: 3.1 x 2.6 x 1.5 inches

Product Description

The class 12.9 alloy steel socket cap screw has a black oxide finish and a flat head with an internal hex drive, and meets Deutsches Institut für Normung DIN 7991 specifications. Class 12.9 alloy steel, composed of quenched and tempered alloy steel, is often used in applications where strength is the primary consideration. The material is magnetic. The black oxide finish offers mild corrosion resistance and lubricity. The flat head is cone shaped for use in countersunk holes and has a flat top that fits flush with the mated surface. The internal hex drive, also known as a hex-socket drive, has a hexagonal slot that requires an Allen key driver, also known as a hex key or Allen wrench.

Socket cap screws are threaded fasteners that have a cap head with an internal socket drive for installing in areas with limited side clearance. These screws are available with a variety of head shapes, which determine how the screw interacts with the mating surface, and drive styles, which determine the type of tool required to install the screw.
