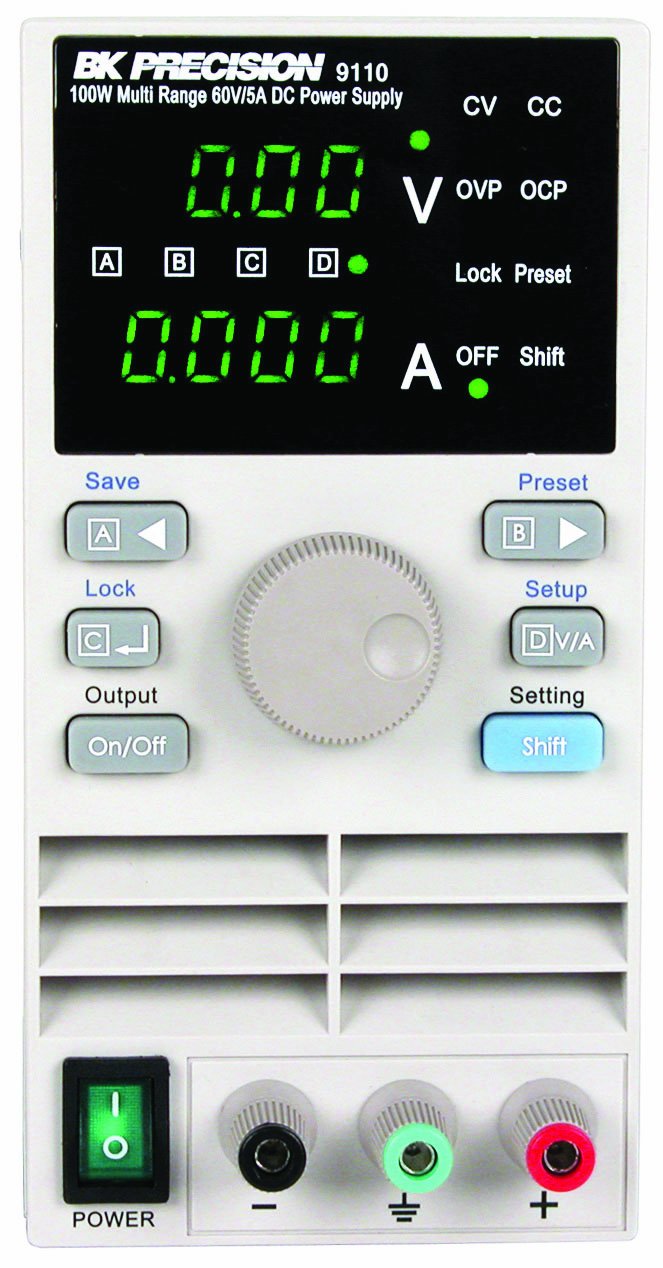

B&K Precision 9110 Multi Range DC Power Supply, 100W, 5A, 60V

Be the first to review this item

ASIN B008686CW8

Specifications for this item
Number of Items
1
Overall Height
6-57/64  inches
Overall Width
3-15/32  inches
Part Number
9110
Item Weight
6 pounds
UPC
817050911008
Item Depth
11-7/64 inches
Brand Name
B&K Precision
EAN
0817050911008
UNSPSC Code
39121004

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digitally controlled, mixed mode linear/switching DC power supply
  • 10mV/1mA Resolution over the full range
  • Bright, easy to read display
  • Very compact and lightweight
  • 1 Year warranty

Package Details

Shipping Weight: 7.05 pounds
Package Size: 13.7 x 10.3 x 4.8 inches

Product Description

The 9110 is a new type of power supply. Unlike conventional power supplies with fixed output ratings, the 9110 automatically recalculates voltage/current limits for each setting. The 9110 provides 100W output power in any volt/amp combination within the rated voltage (60V) and current (5A) limits. By providing greatly expanded choices of maximum power Volt/Amp combinations, users can cut down on the number of power supplies required and free up valuable bench space. Digitally controlled, mixed mode linear/switching DC power supply. 10mV/1mA resolution over the full range. Bright, easy to read display. Very compact and lightweight. Low ripple and noise. High reliability due to OCP, OVP and OTP protection. Output on/off control. Store and Recall 4 x 100 groups of preset Volt/Amp values. Output ratings voltage: 0 to 60V. Maximum power: 100W. Load regulation voltage: greater than or equal to 0.01 percent + 3mV. Line regulation voltage: greater than or equal to 0.01 percent + 3mV. Setting accuracy voltage: greater than or equal to 0.05 percent + 10mV. Display accuracy voltage: greater than or equal to 0.05 percent + 10mV. Ripple voltage: greater than or equal to 2.0 mVrms. Output ratings current: 0 to 5A. Load regulation current: greater than or equal to 0.01 percent + 3mA. Line regulation current: greater than or equal to 0.1 percent + 2mA. Setting accuracy current: greater than or equal to 0.2 percent + 2mA. Display accuracy current: greater than or equal to 0.1 percent + 2mA. Ripple current: greater than or equal to 5 mArms. State storage memory: 100 groups with 4 sets of volt/amp memories each. Measures 3-15/32" width by 6-57/64" height by 11-7/64" depth. 1 year warranty.
