Package Size: 8.1 x 7.4 x 2.5 inches

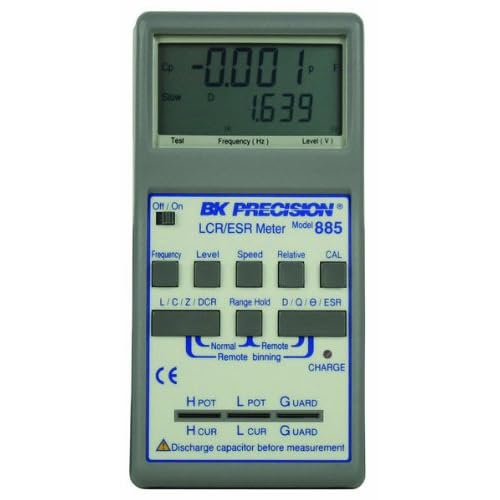

High accuracy LCR/ESR meters were the first handheld meters of their type on the market, offering fast, reliable, and versatile testing at a low cost. With a wide range of test frequencies up to 10 kHz, these LCR meters can perform many different measurements - Z, L, C, DCR, ESR, D, Q, and diameter. These instruments are designed for both component evaluation on the production line and fundamental impedance testing for benchtop applications. With a built-in direct test fixture, you can test lead components very easily. The optional 4-wire test clip can give a convenient connection to larger components and assemblies with the accuracy of 4-wire testing. Measurement parameters: Z, L, C, DCR, ESR, D, Q, and Diameter. 0.2 percent basic accuracy. Dual LCD display. SMD Surface Mount Tweezer Probe included. Very quick response, user friendly. Fully auto/manual selection. DC resistance measurement. Rechargeable battery / AC powered. Frequency accuracy: +/-0.1 percent. Level: 1Vrms, 0.25Vrms, 0.05Vrms, 1Vdc (for DCR). Level accuracy: +/-5 percent. Output impedance: 100 ohm, +/-5 percent. Operating temperature: 32 to 104 degree F (0 to 40 degree C). Storage temperature: -4 to 158 degree F (-20 to 70 degree C). Relative humidity: up to 85 percent. Battery type: Ni-MH or Alkaline (2 x AA size). Battery charge: Constant current 150mA approximately. Battery operating life: 2.5 hours typical. AC operation: 110V/220V AC, 60/50Hz with proper adapter. Low power warning: under 2.2V. Measures 6-57/64" length by 3-25/64" width by 1-57/64" height. 2 year warranty.
