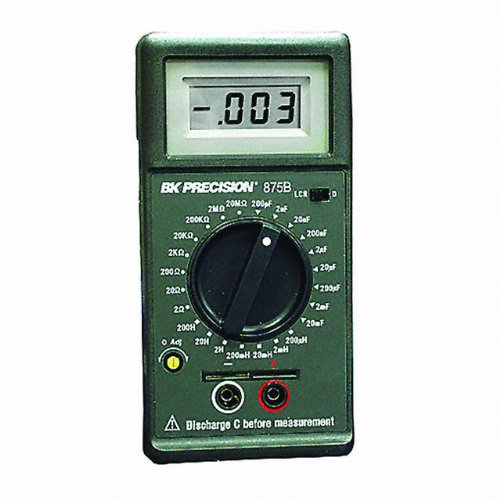

B&K Precision 875B Low-Ohm LCR Meter

Be the first to review this item

ASIN B000LDJ7L4

Specifications for this item
Number of Items
1
Overall Width
3-15/32  inches
Part Number
875B
Temperature Range
0 to 40  Degrees Celsius
UPC
094700665614 , 817050087529
Item Depth
1-37/64 inches
Brand Name
B&K Precision
EAN
0817050087529 , 0094700665614
Power Source Type
9V Battery
UNSPSC Code
41113600
Overall Length
6-31/32  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 18 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital meter measures inductance, capacitance, and resistance
  • Measures dissipation factor
  • Zero adjustment removes lead resistance
  • Measures resistance down to 1 milliohm resolution for precise measurement of low resistances
  • Display indicates when 5% battery life remains

Package Details

Shipping Weight: 0.95 pounds
Package Size: 7.5 x 4.7 x 2.3 inches

Product Description

The B&K Precision 875B Low-Ohm LCR Meter is a digital meter that measures inductance from 200 microhenries to 200 henries, capacitance from 200 picofarads to 20 millifarads, and resistance from 2 ohms to 20 megaohms as well as dissipation factor between 0 and approximately 1.999. The meter allows for resistance measurements down to 1 milliohm of resolution allowing for precise measurement of very low resistances. It has a 3-1/2 digit LCD that indicates the last 5% of battery life and uses a 9V battery (not included). It has a drop-proof housing for protection and a tilt stand for hands-free viewing. The meter measures 6.97 x 3.46 x 1.57 inches/177 x 88 x 40 mm (H x W x D) and weighs 14 oz./400 g. (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

B&K Precision manufactures test and measurement instruments for research and development, production-line testing, and electronic field service applications. The company, founded in 1951, is headquartered in Yorba Linda, CA. It meets International Organization for Standardization (ISO) standard 9001:2008 and is compliant with Restriction of Hazardous Substances (RoHS) and waste electronic and electrical equipment (WEEE) directives.

What's in the Box?
  • 875B LCR meter
  • Pair of test clips
  • Instructions
