Bel-Art Scienceware® 420220000 Polycarbonate Bottom Space Saver(TM) Vacuum Desiccator, 19.7cm ID, 23cm Flange OD, 26cm Height, 19cm Plate Size

Be the first to review this item


Product Specifications
Part Number
Number of Items
Specification for this product family (See all  products)
Brand Name
Bel-Art Products

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 17 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Holds a full vacuum (29.9" Hg 75.9cm) at room temperature for 24 hours; will remain airtight even if not under vacuum
  • Polypropylene stopcock with PTFE plug accepts 6.4mm (1/4") I.D. tubing and allows a controlled entrance of air preventing unnecessary turbulence
  • 'Flat Dome,' clear polycarbonate top with large ribbed knob maximizes interior clearances and provides an average of 13% greater interior volume over standard hemispherical domes
  • All models include a 0.32 cm (") thick perforated plate; disposable or reusable desiccant can be placed on or under this plate
  • Clear polycarbonate top on a bottom that is either clear polycarbonate or chemical-resistant white polypropylene

Package Details

Shipping Weight: 3 pounds
Package Size: 9.13 x 9.13 x 7.63 inches

Product Description

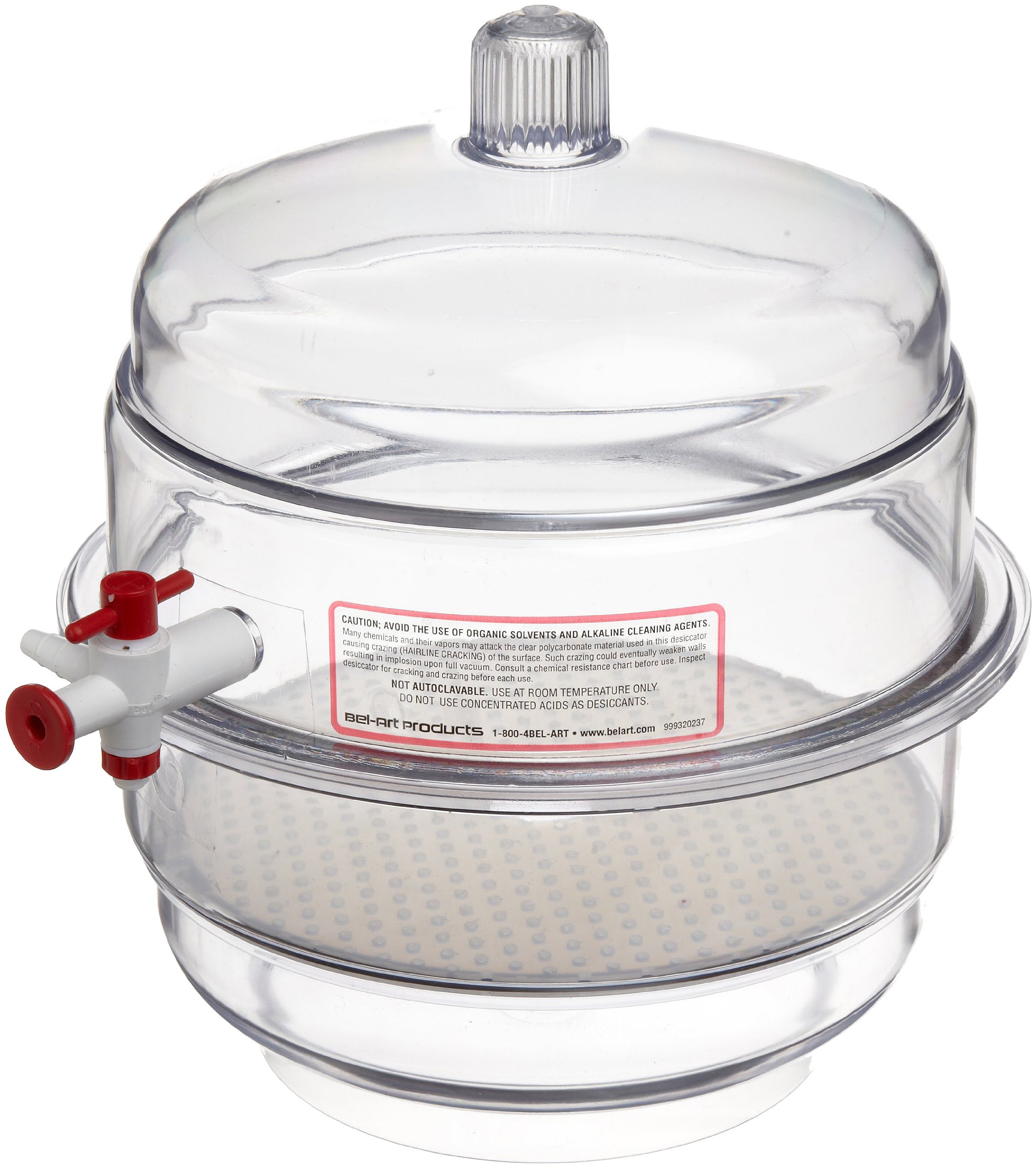

The Scienceware 420220000 Space Saver vacuum desiccator has a clear polycarbonate bottom for increased viewing angles and a clear polycarbonate cover whose cylindrical shape with a flat top provides greater volume than standard hemispherical covers. The shatterproof desiccator holds a full vacuum of 75.9cm Hg at room temperature for 24 hours and remains airtight even if not under a vacuum. A neoprene O-ring creates a tight seal down to 0 degrees C without grease, although grease can still be used. The polypropylene stopcock has a polytetrafluoroethylene (PTFE) plug and takes 6.4mm (1/4") I.D. (inside diameter) tubing. The desiccator measures 26cm high with an I.D. of 19.7cm. The perforated plate is 0.32cm thick and has a diameter of 19cm.

Desiccators are sealable containers used to remove water from a sample, or to preserve moisture-sensitive electronics or lab consumables, typically in laboratory, electronic, and aerospace applications. Desiccators are often used with desiccants, which are drying agents such as silica gel or activated charcoal placed under a removable platform. Standard desiccators are typically lidded jars used with a desiccant. Vacuum desiccators have a stopcock that allows air evacuation from the desiccator. Gas purge desiccators use a gas port to introduce nitrogen or other gasses, creating a controlled environment. Vacuum and gas purge desiccators may also be used with desiccants. Many desiccators are used with vacuum grease, which helps create a seal.

Bel-Art Products manufactures scientific products, including labware, testing equipment, and safety supplies. The company, founded in 1946 and headquartered in Wayne, NJ, also makes products under the Scienceware brand.
