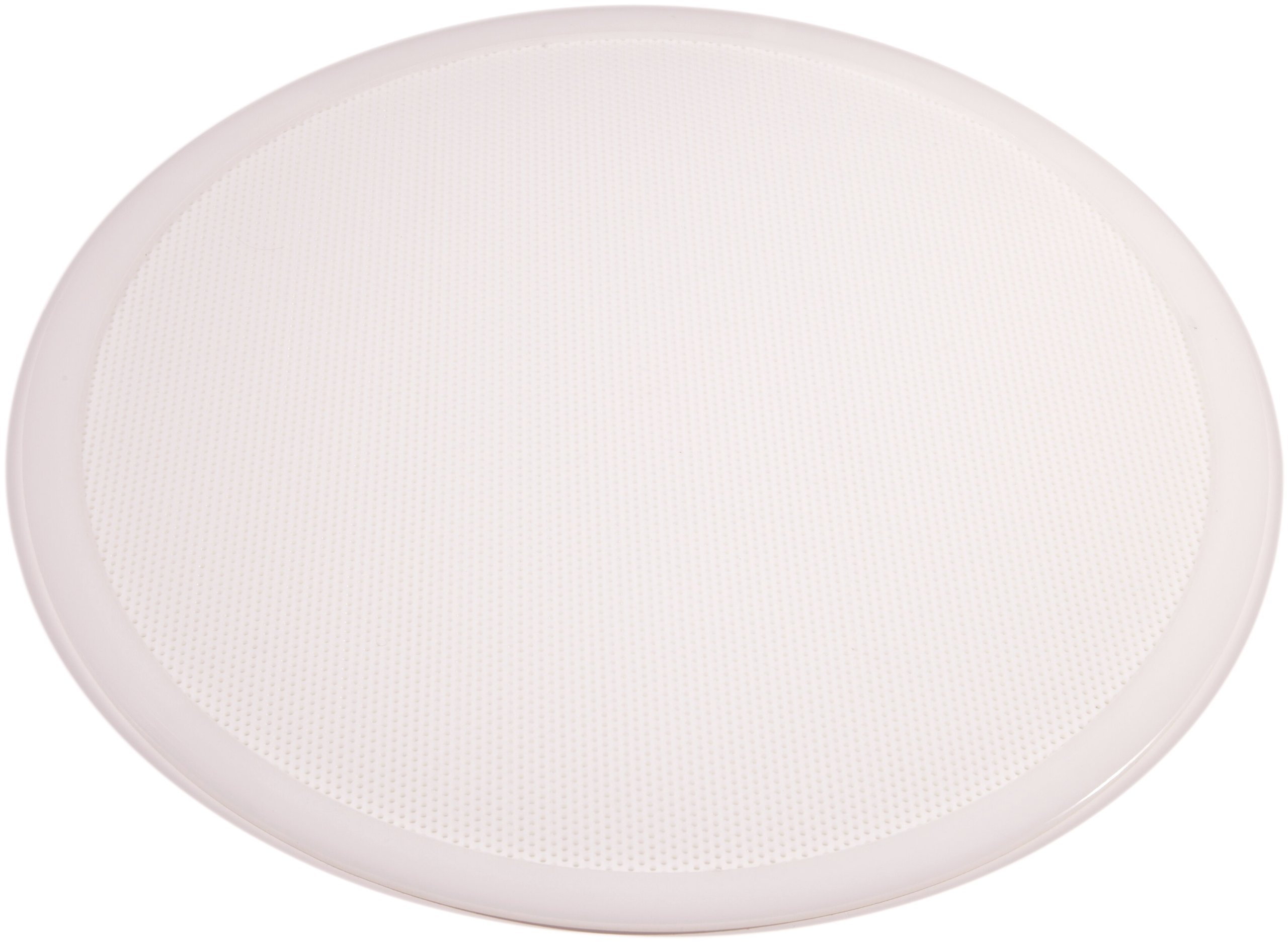

Scienceware H91463-1914 Perforated Filter Plate, for 36" Buchner Funnels

Be the first to review this item

ASIN B002VBWB5I

Product Specifications
Part Number
H91463-1914
Material Type
Polyethylene (PE)
Number of Items
1
Color Name
White
Overall Height
14.75  inches
Size Name
Perforated Plate
Specification for this product family (See all  products)
UNSPSC Code
41104929
Brand Name
Bel-Art Products

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Aug 26? Order in-stock items in the next 2 days 10 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Removable hose barbed connector accepts 12.7mm (1/2") I.D. tube and threads into (3/4") NPT bung on the funnel
  • Fixed or removable Fritware Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used o Fritware Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use below 52ºC (125ºF)
  • Fixed or removable Perforated Filter Plates are made of 4.8mm (3/16") thick HDPE with 4.8mm (3/16") perforations on 11mm (7/16") centers o Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use below 52ºC (125ºF)
  • Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process

Package Details

Shipping Weight: 8.5 pounds
Package Size: 49 x 38 x 0.3 inches

Product Description

Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware or Perforated filter plate. A removable hose barbed connector accepts 12.7mm (1/2") I.D. tube and threads into (3/4") NPT bung on the funnel. Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process. Fixed or removable Fritware Porous Filter Plates are supported by a multiple ring grid. They are made of high density polyethylene, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used. Available in two porosities (medium and coarse), the medium porosity plate is 45-90 microns while the coarse porosity plate is 90-130 microns. Use below 52ºC (125ºF). Fixed or removable Perforated Filter Plates are made of 4.8mm (3/16") thick high density polyethylene (HDPE) with 4.8mm (3/16") perforations on 11mm (7/16") centers. The fixed version is for coarse filtration or use with a cloth or paper filter. The removable filter plate is available for use in precious metals recovery. Use below 52ºC (125ºF).
