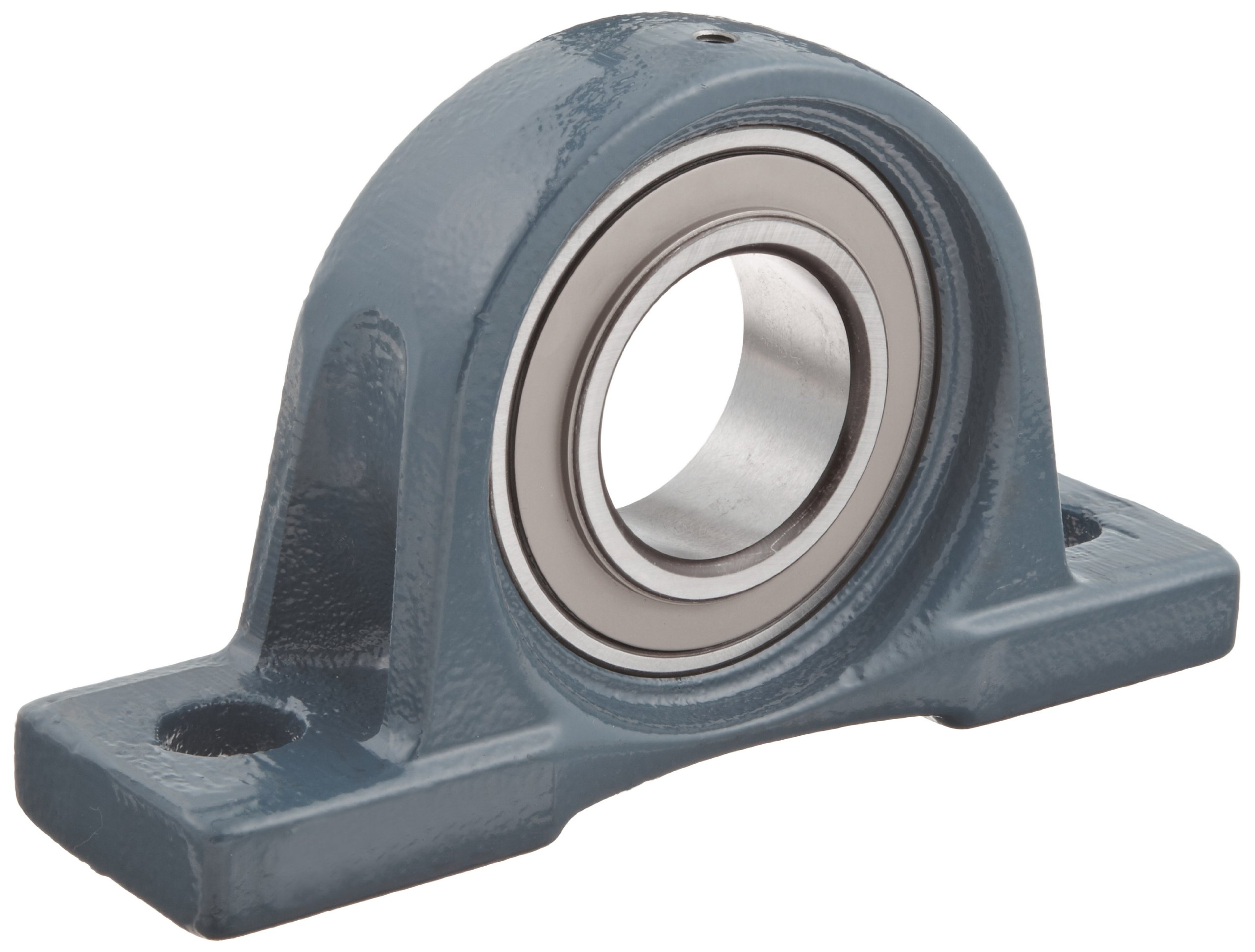

FYH UKP209 Pillow Block Bearing 40mm Tapered Bore, Single Row, With Adapter, Metric

Be the first to review this item

ASIN B0045E0FGQ

Specifications for this item
Number of Items
1
Part Number
KIT11196
Brand Name
VXB
Inside Diameter
40  millimeters
UNSPSC Code
31171505

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 10 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Two-bolt housing with tapered ball bearing insert that accommodates an adapter sleeve assembly
  • Cast iron housing and chrome steel bearing unit for bearing static loads (Cor) of 21.3 kN and dynamic loads (Cr) of 34.1 kN
  • One-piece pillow block housing for maximum strength and rigidity
  • Tapered-bore bearing insert with adapter sleeve to produce a concentric, secure lock on the shaft, reducing slippage and fretting corrosion
  • Sealed bearing and housing unit with grease fitting for lubrication

Package Details

Shipping Weight: 4.65 pounds
Package Size: 8.5 x 5.4 x 2.7 inches

Product Description

This FYH pillow block tapered bore bearing has a one-piece housing made of cast iron with two mounting bolt holes that accommodate M14 size bolts (sold separately), a deep groove ball bearing insert, and an adapter sleeve assembly that accommodates a 40 mm shaft. It is suitable for applications that support large radial and axial loads, such as conveyor systems. The included adapter sleeve assembly provides a secure lock on the shaft to minimize slippage and the fretting corrosion that often accompanies it. The chrome steel bearing unit supports static loads (Cor) of 21.3 kN and dynamic loads (Cr) of 34.1 kN. The bearing has an A-1/4-28UNF grease fitting that allows in-place lubrication of the unit for extended life. The bearing has a rubber seal to prevent the introduction of debris that would shorten the life of the bearing. This mounted bearing is suitable for use in conveyor systems in industrial manufacturing, food and beverage manufacturing, and the textile industry.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
