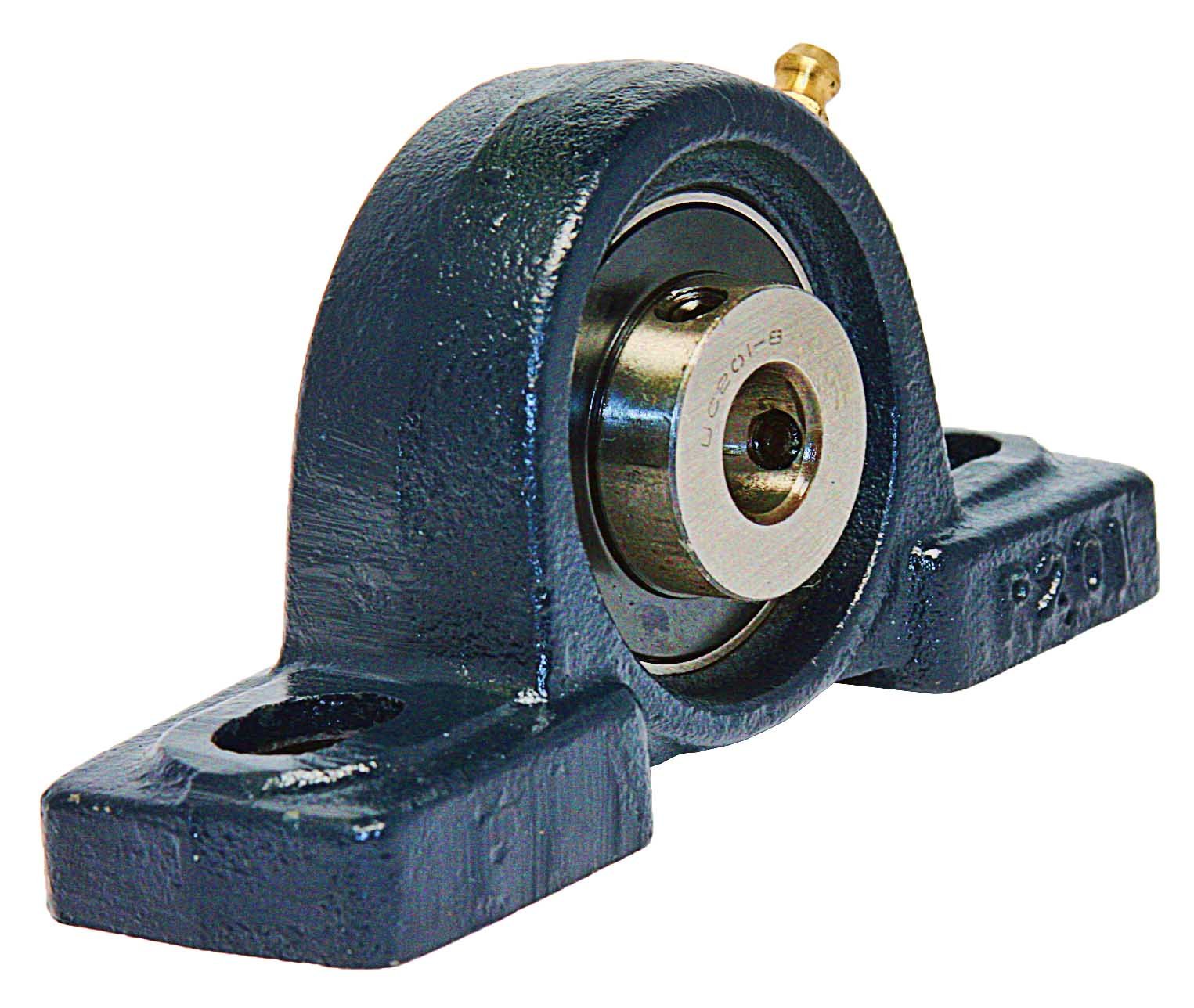

UCP201-8 Pillow Block Mounted Bearing, 2 Bolt, 1" Inside Diameter, Set screw Lock, Cast Iron, Inch

Be the first to review this item

ASIN B002BBMGUS

Specifications for this item
Number of Items
1
Part Number
kit940
Outside Diameter
1/2  inches
Brand Name
VXB

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 13 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast iron P203 one-piece pillow block housing increases life of the bearing
  • UC201-8 chrome steel bearing for efficient operations at a wide range of speeds
  • Dynamic (radial) load rating of 12.8 kN and static (axial) load rating of 6.65 kN
  • Set screw prevents shaft slippage
  • 1/2" inside diameter fits conventional cylindrical shafts

Package Details

Shipping Weight: 0.8 pounds
Package Size: 4.4 x 4 x 3.9 inches

Product Description

The UCP201-8 pillow block mounted bearing with a 1/2" inside diameter, two bolt holes, and a set screw lock is designed for mounting onto bearing surfaces parallel to the shaft axis, such as conveyor belts. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The bearing has a dynamic (radial) load rating of 12.8 kN and a static (axial) load rating of 6.65 kN. This one-piece pillow block housing allows for a stationary outer ring and rotating inner ring. The bearing is secured to the shaft with set screws to prevent slippage and the housing requires two 3/8" bolts (sold separately). This mounted bearing is used in industrial manufacturing, food and beverage manufacturing, and in the textile industry.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
