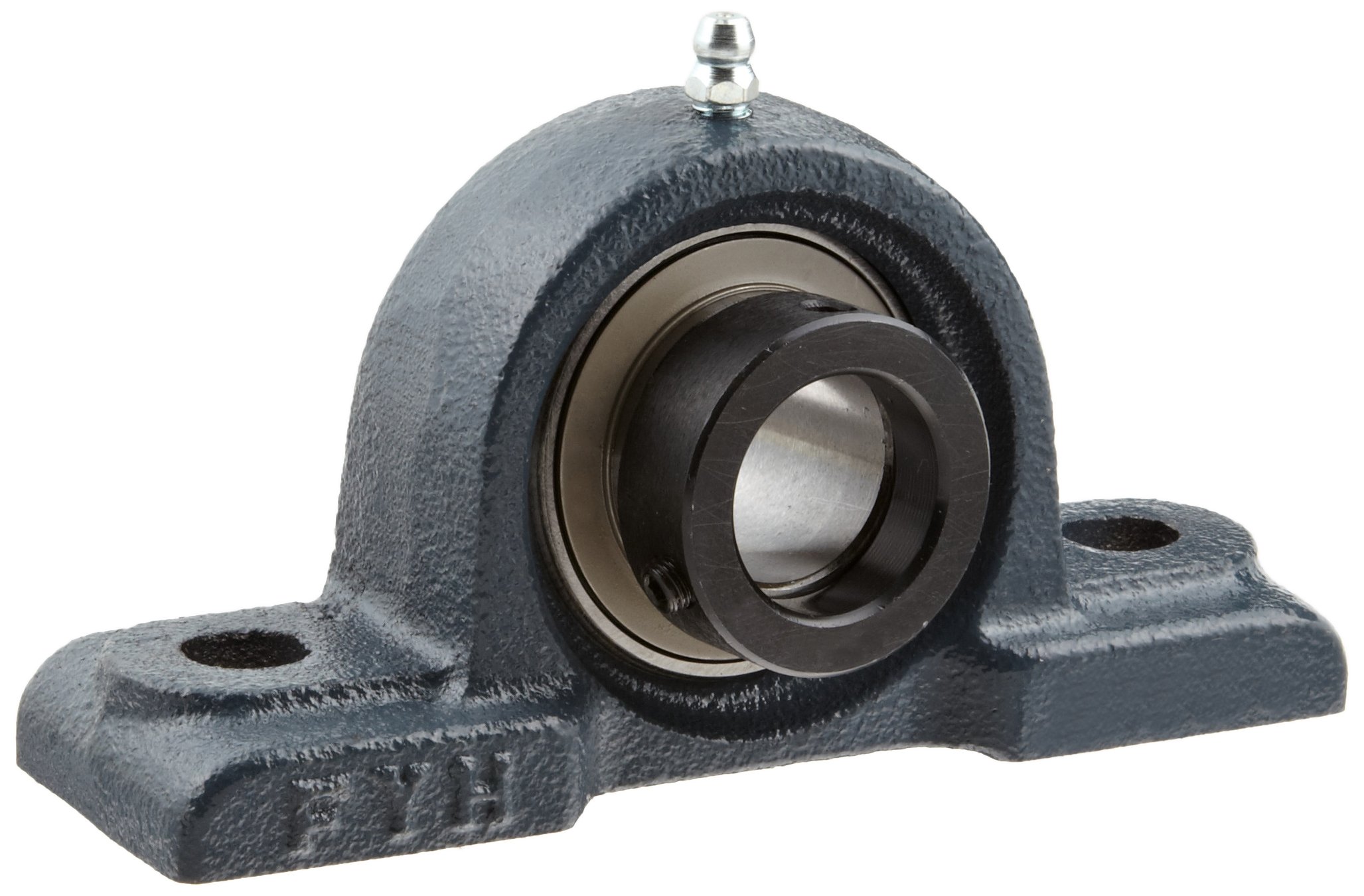

FYH NAPK205 Pillow Block Mounted Bearing, 2 Bolt, 25mm Inside Diameter, Eccentric Lock, Cast Iron, Metric

Be the first to review this item

ASIN B0045DTNW4

Specifications for this item
Number of Items
1
Inside Diameter
25  millimeters
Part Number
KIT11175
Brand Name
VXB
Price:
$26.40
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 5 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast iron one-piece pillow block housing increases life of the bearing
  • NA204 chrome steel bearing for efficient operations at a wide range of speeds
  • Dynamic (radial) load rating of 12.8 kN and static (axial) load rating of 6.65 kN
  • Eccentric locking collar prevents shaft slippage
  • 25mm inside diameter fits conventional cylindrical shafts

Package Details

Shipping Weight: 2.25 pounds
Package Size: 6.7 x 3.6 x 2.2 inches

Product Description

The FYH NAPK205 pillow block mounted bearing with a 25mm inside diameter, two bolt holes, and a set screw lock is designed for mounting onto bearing surfaces parallel to the shaft axis, such as conveyor belts. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The bearing has a dynamic (radial) load rating of 12.8 kN and a static (axial) load rating of 6.65 kN. This one-piece pillow block housing allows for a stationary outer ring and rotating inner ring. The bearing is secured to the shaft with an eccentric locking collar to prevent slippage and the housing requires two 3/8" bolts (sold separately). This mounted bearing is used in industrial manufacturing, food and beverage manufacturing, and in the textile industry.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
