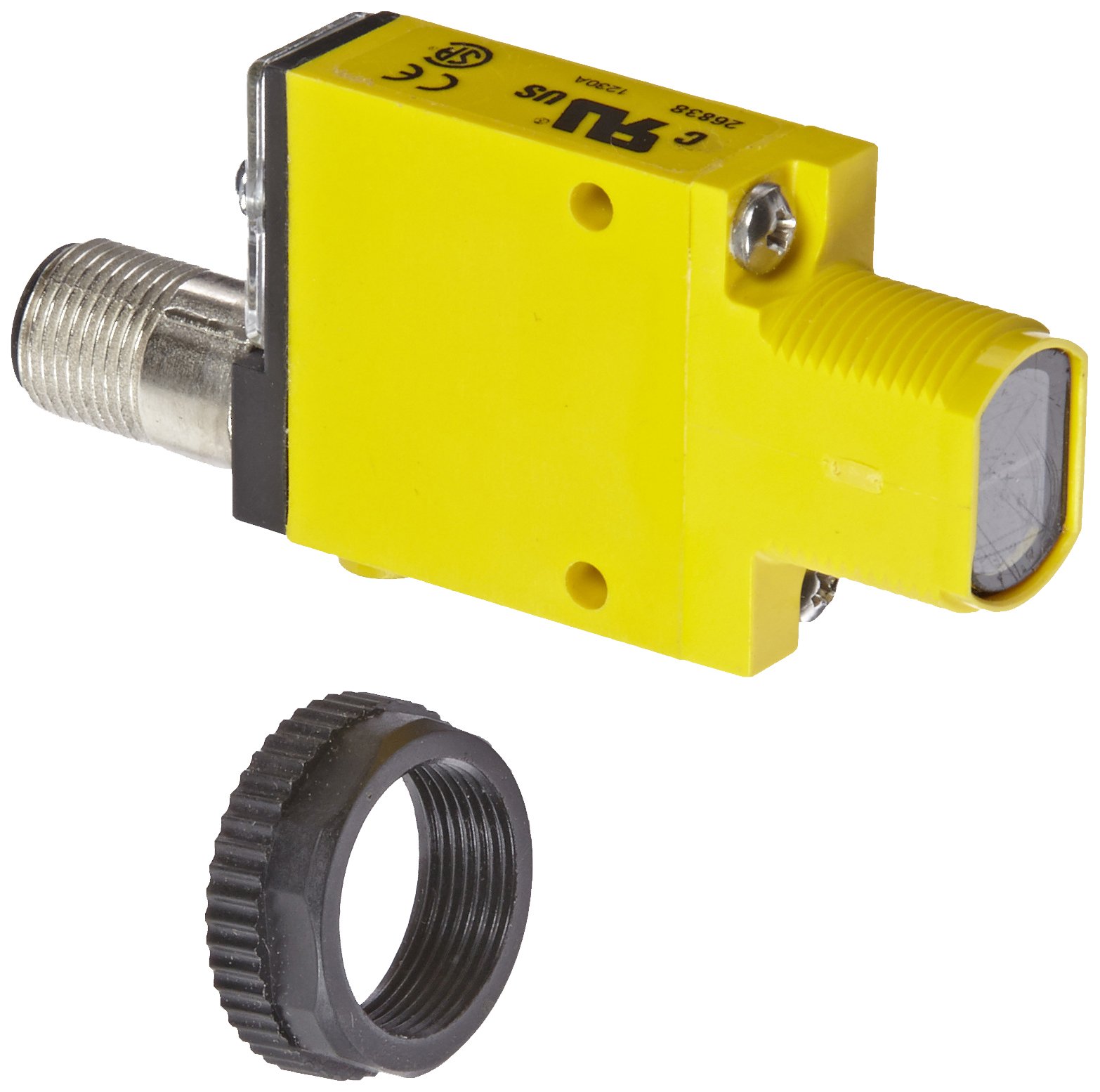

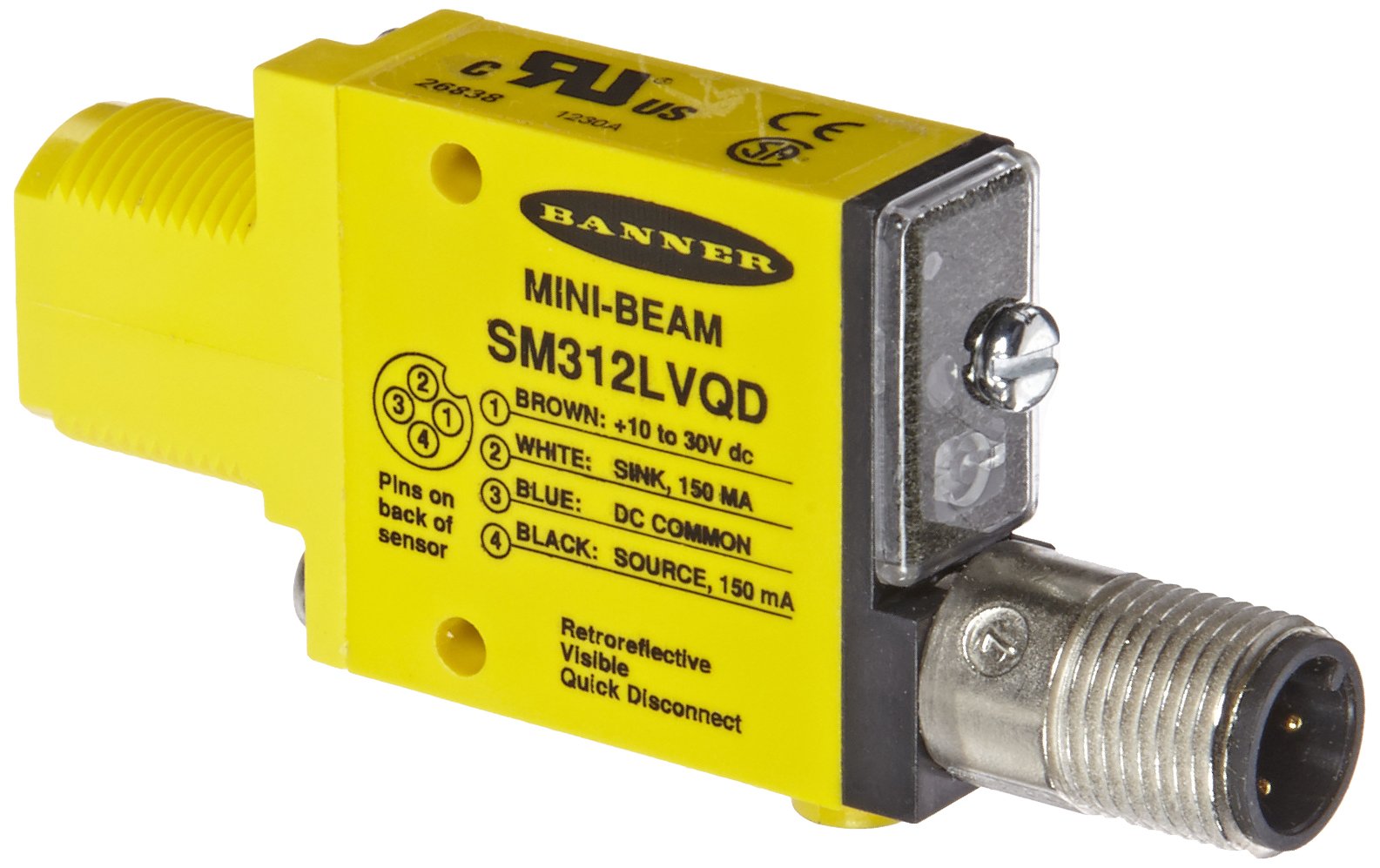

Banner SM312LVQD Mini Beam Photoelectric Sensor, Non-Polarized Retroreflective Sensing Mode, 4-Pin Euro-Style QD Connector, Visible Red LED, 10-30 VDC Supply Voltage, Bipolar (NPN and PNP) Output, 5 m Sensing Range

Be the first to review this item

ASIN B005T5BKVE

Specifications for this item
Number of Items
1
Part Number
SM312LVQD
Sensing Distance
5  meters
UPC
662488268381
Brand Name
Banner
Number Of Pins
4
EAN
0662488268381
UNSPSC Code
39121528
Style Name
4-Pin Euro QD

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 10 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Non-polarized-retroreflective mode sensor with visible red LED for use at distances of up to 5 m
  • M18 threaded-mount housing with 4-Pin Euro-style QD connector
  • Potentiometer-adjustable tuning for versatility, light/dark operate selector switch
  • 10-30 VDC supply voltage, bipolar (NPN and PNP) output
  • Meets IP 67 standard, UL Recognized, CSA certified, and CE compliant for quality assurance

Package Details

Shipping Weight: 0.05 pounds
Package Size: 5.9 x 3.6 x 1.3 inches

Product Description

This Banner SM312LVQD photoelectric sensor has a M18 threaded-mount housing and a visible red LED sensing beam with an 650 nm wavelength and a range of up to 5 m. The non-polarized-retroreflective mode sensor accepts 10-30 VDC input through its 4-Pin Euro-style quick-disconnect (QD) connector and has bipolar (NPN and PNP) output. The sensor has potentiometer-adjustable tuning, an alignment indicator, and a light/dark operate selector switch. The thermoplastic housing is durable and the sensor has an operating temperature range of -20 to +70 degrees C. It meets the Ingress Protection (IP) 67 standard for protection from water and dust and is Underwriters Laboratories Recognized (UR), Canadian Standards Association (CSA) certified, and European Conformity (CE) compliant for quality assurance. This non-polarized-retroreflective mode sensor is suitable for use in automation applications such as in manufacturing and packaging in a wet environment.

Banner engineering manufactures and distributes photo eyes, sensors, safety switches, and other related products for industrial and process automation. The company, founded in 1966, is headquartered in Minneapolis, MN.
