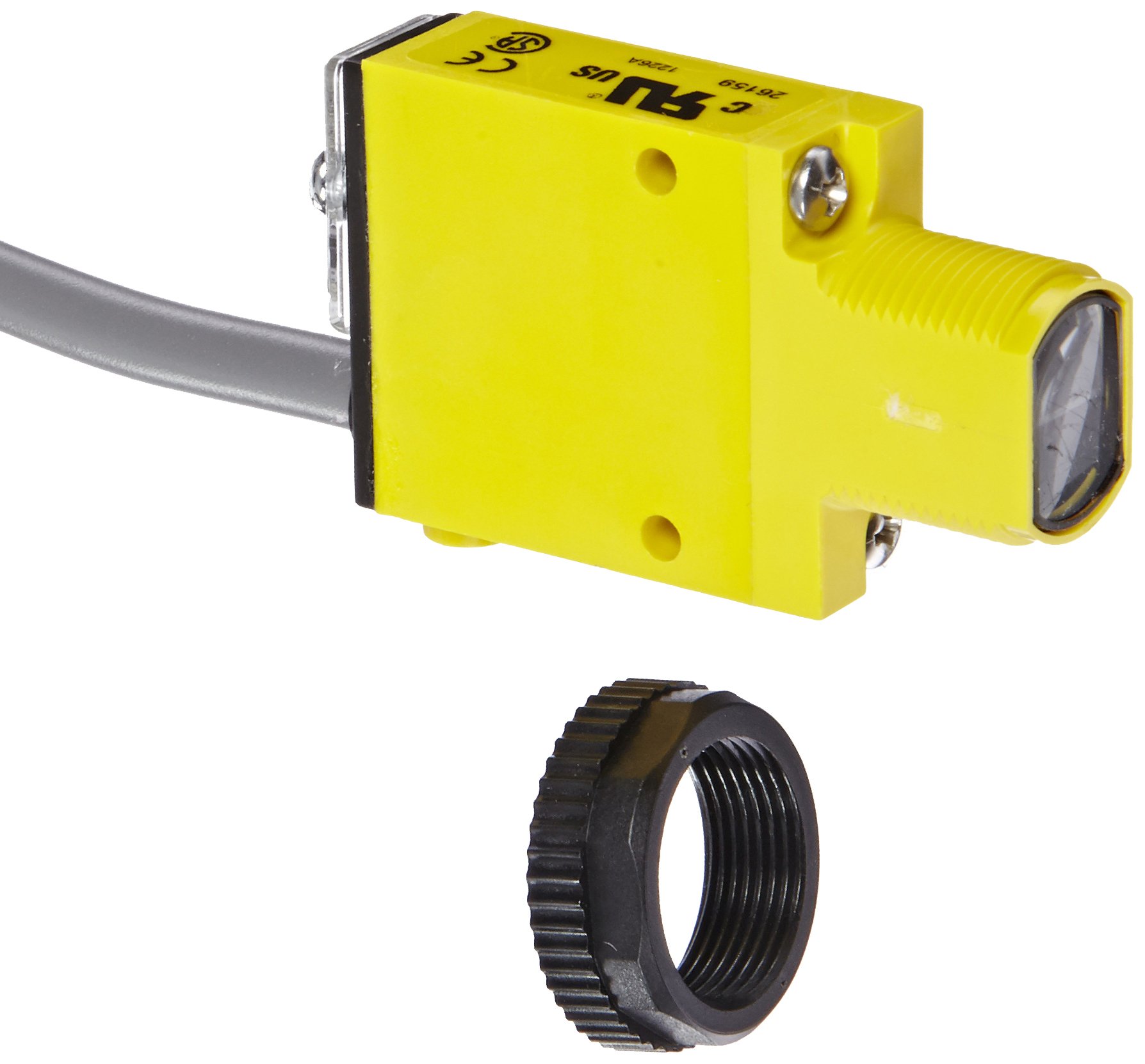

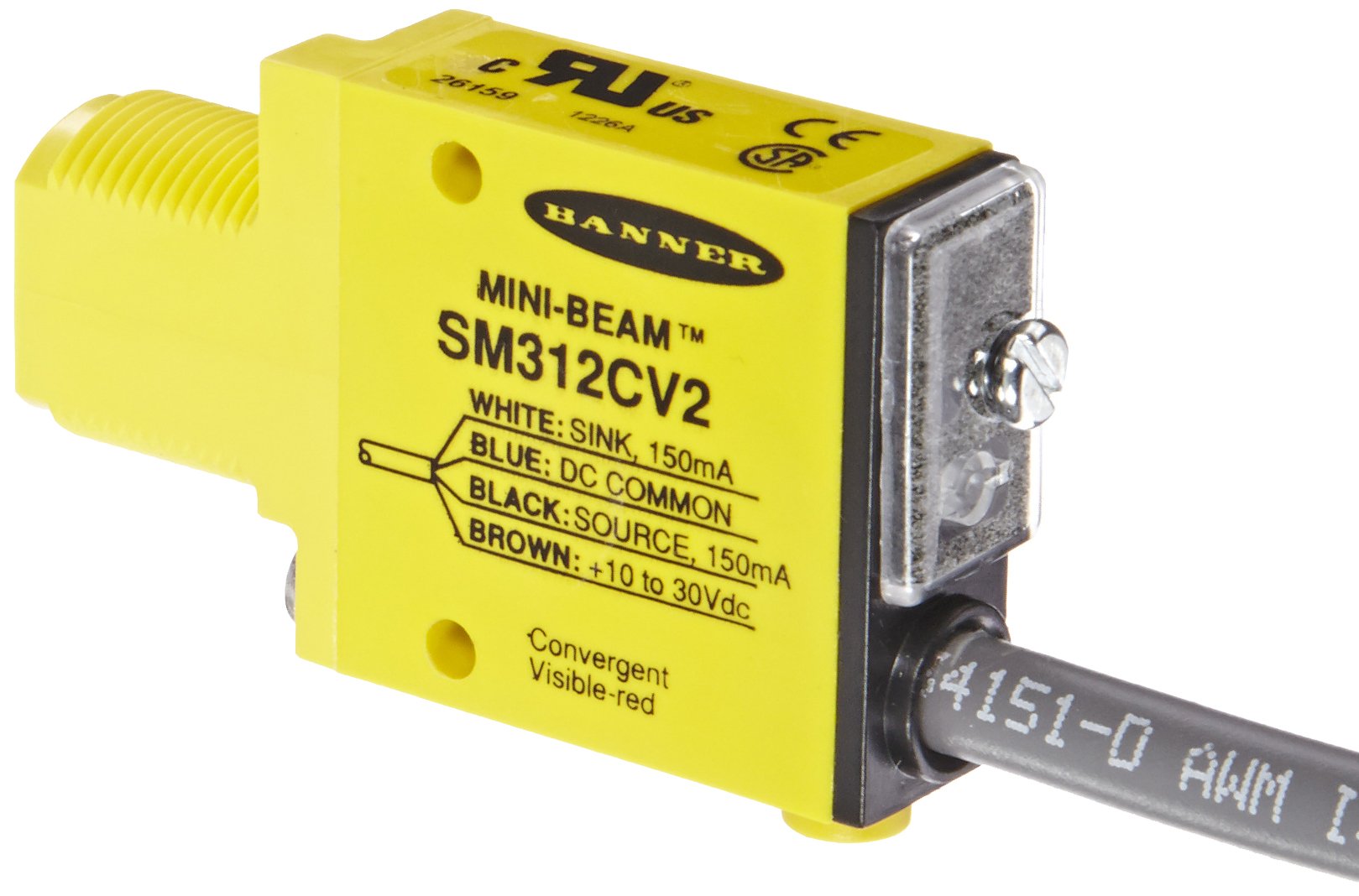

Banner SM312CV2 Mini Beam Photoelectric Sensor, Convergent Sensing Mode, 2 m PVC 4-Wire Cable, Visible Red LED, 10-30 VDC Supply Voltage, Bipolar (NPN and PNP) Output, 43 mm Sensing Range

Be the first to review this item

ASIN B005T5B9S8

Specifications for this item
Number of Items
1
Cable Length
2  meters
Part Number
SM312CV2
Sensing Distance
43  millimeters
UPC
662488261597
Brand Name
Banner
EAN
0662488261597
UNSPSC Code
39121528
Style Name
2m Cable

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Jul 25? Order in-stock items in the next 14 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Convergent-mode sensor with visible red LED for use at distances of up to 43 mm
  • M18 threaded-mount housing with PVC-covered 4-wire cable, 2 m length
  • Potentiometer-adjustable tuning for versatility, light/dark operate selector switch
  • 10-30 VDC supply voltage, bipolar (NPN and PNP) output
  • Meets IP 67 standard, UL Recognized, CSA certified, and CE compliant for quality assurance

Package Details

Shipping Weight: 0.35 pounds
Package Size: 5.8 x 3.6 x 1.4 inches

Product Description

This Banner SM312CV2 photoelectric sensor has a M18 threaded-mount housing and a visible red LED sensing beam with a 650 nm wavelength and a range of up to 43 mm. The convergent-mode sensor accepts 10-30 VDC input through its 2 m length PVC-covered 4-wire cable and has bipolar (NPN and PNP) output. The sensor has potentiometer-adjustable tuning, an alignment indicator, and a light/dark operate selector switch. The thermoplastic housing is durable and the sensor has an operating temperature range of -20 to +70 degrees C. It meets the Ingress Protection (IP) 67 standard for protection from water and dust and is Underwriters Laboratories Recognized (UR), Canadian Standards Association (CSA) certified, and European Conformity (CE) compliant for quality assurance. This convergent-mode sensor is suitable for use in automation applications such as in manufacturing and packaging in a wet environment.

Banner engineering manufactures and distributes photo eyes, sensors, safety switches, and other related products for industrial and process automation. The company, founded in 1966, is headquartered in Minneapolis, MN.
