Aviditi 36AVI Capacitor, 50/7.5 Microfarad, 370-Volt

Be the first to review this item

ASIN B004TTUP4O

Specifications for this item
Number of Items
1
Overall Height
4.75  inches
Overall Width
2  inches
Part Number
36AVI
UPC
736211213273
Brand Name
Aviditi
EAN
0736211213273
UNSPSC Code
32121500

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Capacitance rating of 50/7.5 MFD +/- 5% dual capacitance
  • Voltage rating of 370 VAC at 50/60Hz
  • 10,000 AFC safety pressure interrupter

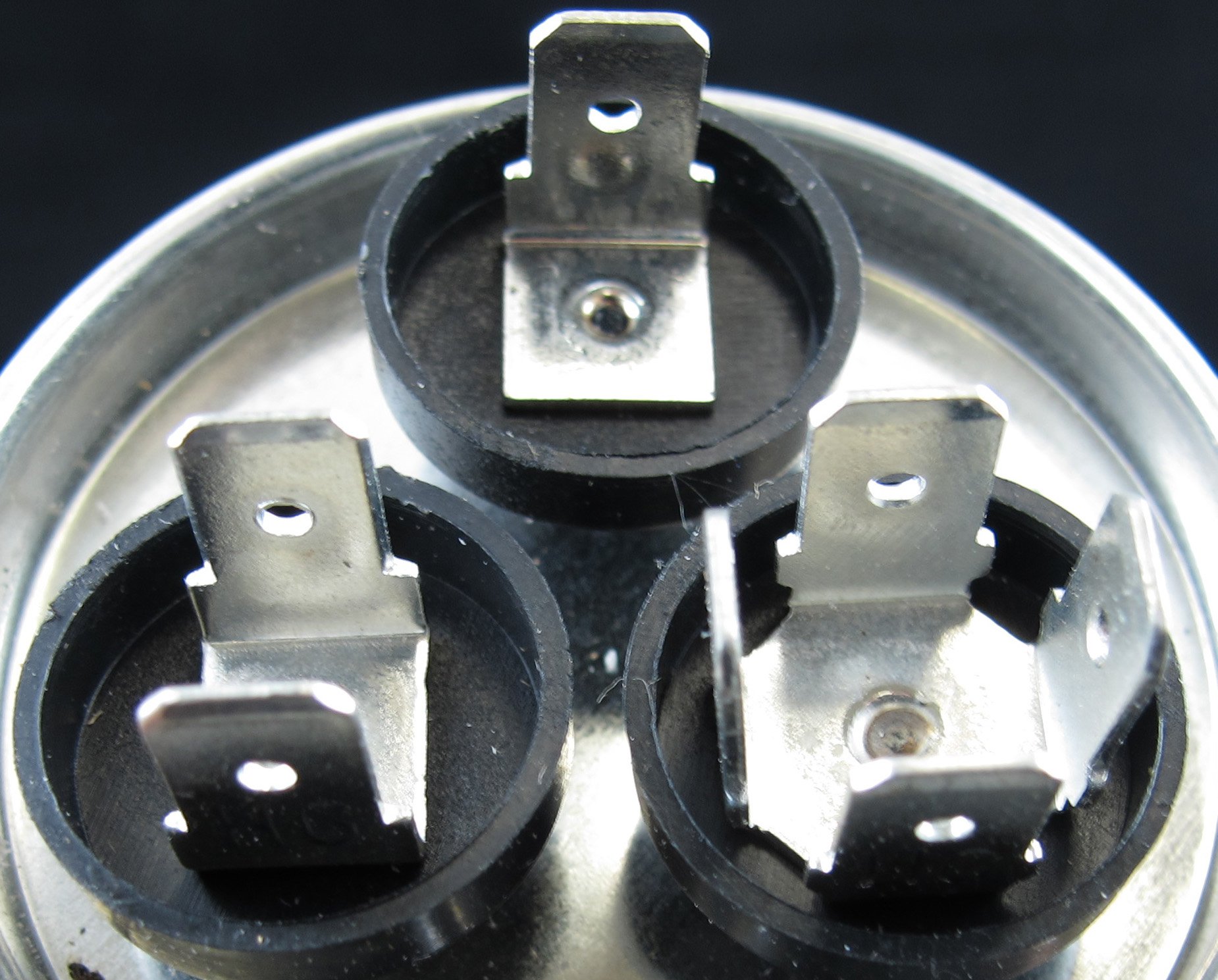

  • Three quick-connect blade terminal blocks for two motors
  • UL recognized for quality assurance

Package Details

Shipping Weight: 0.5 pounds
Package Size: 5.5 x 2.2 x 1.9 inches

Product Description

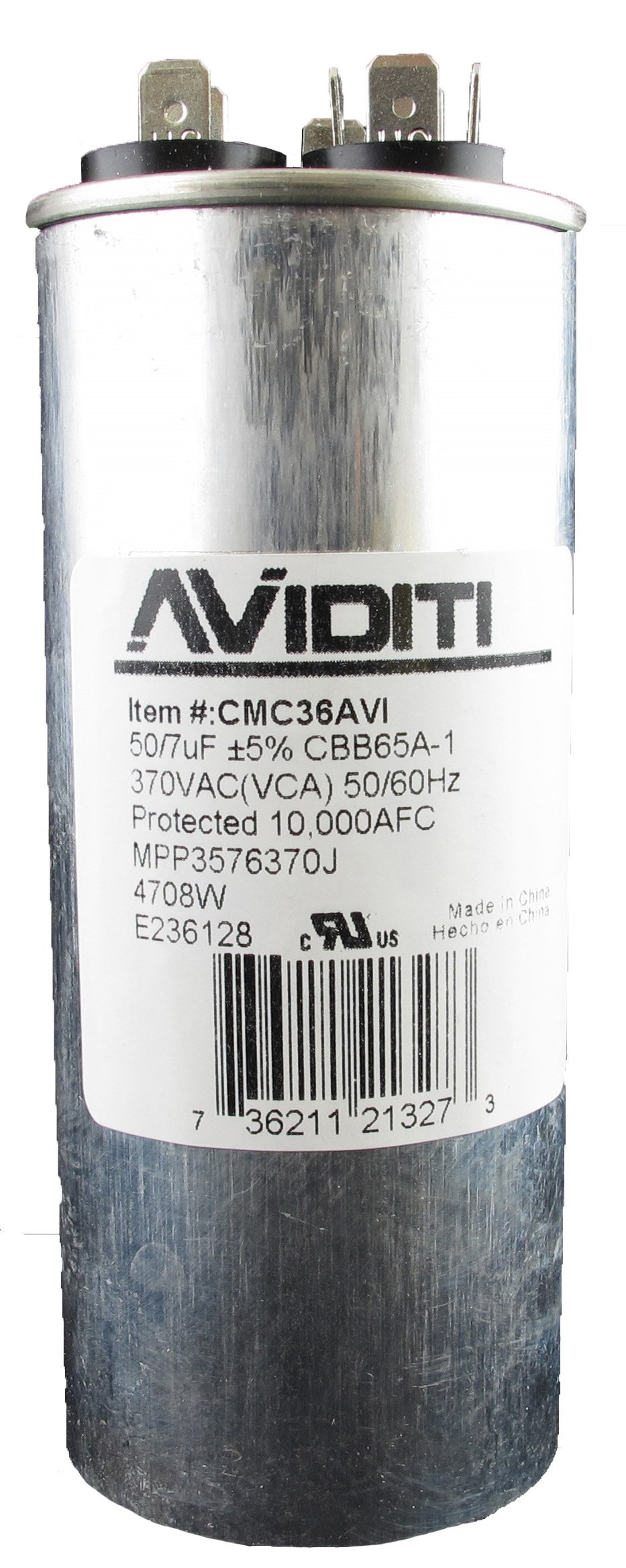

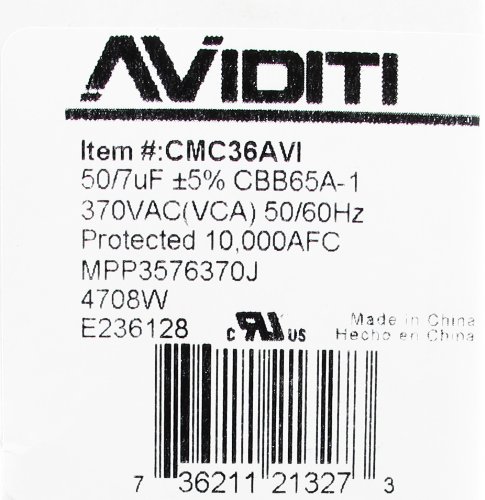

This Aviditi 36AVI motor run capacitor has 50/7.5 microfarads (MFD) +/- 5% dual capacitance at 370 VAC, and a 10,000 amp available fault current (AFC) safety pressure interrupter. The capacitor features three quick-connect blade terminal blocks for two motors, a self-healing metallized polypropylene film dielectric, and a hermetically sealed metal case. This capacitor is Underwriters Laboratories Recognized (UR) for quality assurance and is suitable for use in motor heating, ventilation, and air conditioning (HVAC) applications.

Capacitors are passive electrical components that temporarily store energy. They come in a variety of sizes and are internally comprised of two metal foils separated by a thin insulating film (dielectric). When selecting a capacitor, consider the capacitance, voltage, and number of terminals needed for your specific applications. Capacitors are used in electrical circuits for commercial and industrial power applications that include electric motors, pumps, air conditioning, compressors, and lighting.

Aviditi manufactures grow tents and lights, blowers and dryers, and ice makers for research, industrial, residential, and educational applications. The company is headquartered in Elkhorn, WI.
