Aven 26700-300 ZipScope USB Digital Microscope with 2 Mega-Pixel 10x-50x Optical, 200x Digital Magnification

Be the first to review this item

ASIN B004M8SQ6Q

Specifications for this item
Number of Items
1
Part Number
26700-300
Item Weight
0.88 pounds
UPC
766955371328
Brand Name
Aven
Size Name
With 2 Mega-Pixel 10x-50x Optical, 200x Digital Magnification
EAN
0766955371328
UNSPSC Code
41111700

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 1 day 15 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 2.0 megapixel digital tabletop microscope with 1/2" color complementary metal-oxide semiconductor (CMOS) image sensor
  • Includes USB 2.0 computer output to display images or video
  • Optical magnification of 10X to 50X, and digital magnification of 200X
  • 8 built-in, white LED lights with two-step intensity control for illumination, automatic white balance, and the ability to be turned on and off
  • Included software produces images (JPEG or BMP formats) or video (AVI format)

Package Details

Shipping Weight: 1 pounds
Package Size: 9.5 x 7.2 x 2.2 inches

Product Description

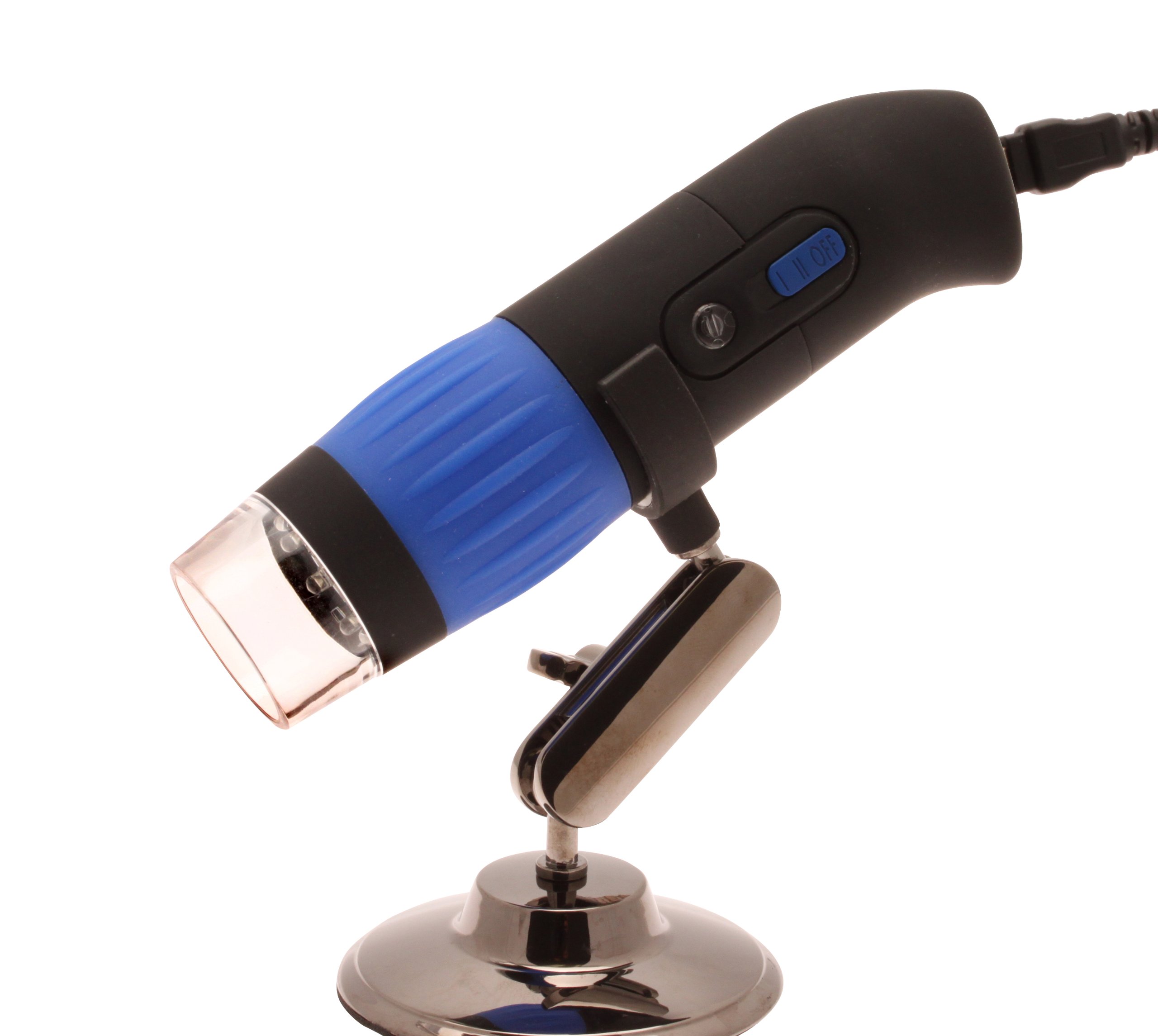

The Aven 26700-300 zipScope is a tabletop, 2.0 megapixel digital microscope that has a USB interface, eight white LED lights with two intensity settings, a snapshot button for image capture, optical magnification of 10X to 50X, and digital magnification of 200X. This digital microscope enhances the resolution of an object or image, and connects to a computer for image display. It is commonly used for quality control (QC) inspection, medical and scientific research, geology, mineralogy, chemistry, and for printing and textile inspection.

This microscope has an adjustable magnification of 10X to 50X, and comes in an all-in-one, compact lens. A 1/2” complementary metal-oxide semiconductor (CMOS) color image sensor manages noise reduction and image quality. The microscope has a shutter speed of 1 second to 1/1000 of a second. The frame rate is 30 frames per second (FPS) at 2.0 megapixels. The zipScope uses eight white LED lights with two intensity settings to control illumination. The microscope has automatic white balance to control brightness, and automatic exposure. A snapshot trigger captures images, and the microscope outputs images or video to a PC. A large, manual focus wheel adjusts focus in a 10 to 500 mm range. The microscope body has a rubberized, anti-slip coating for durability. Included software has image (JPEG and BMP) and video (AVI) capture functions. The microscope comes with an adjustable metal stand that includes height and angle adjustment.

Specifications

Optical magnification 10X to 50X
Digital magnification 200X
Image sensor 0.50” color CMOS
Effective pixels 2.0 mega-pixels (M)
Illumination 8 white LED lights with two intensity settings
Shutter speed 1 second to 0.001 (1/1000) of a second
Frame rate 30fps, 15 fps at 1.3 M
White balance Automatic
Snap shot mode Hardware and software controllable
Focus range Manual, 10mm to 500mm
Frame rate 30fps, 15 fps at 1.3 M
Operating system Microsoft Windows XP, Windows XP SP2, Windows Vista, and Windows 7
Formats produced Images (JPEG or BMP formats) or video (AVI format)
Power source 5 VDC through 2.0 USB port
Power consumption 110-volt
Overall dimensions 19.7 x 6.7 x 8.6 cm / 7.75 x 2.625 x 3.375 inches (H x W x D)
Weight 0.294835 kilograms (0.65 lb.)

*(H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Aven manufactures optical inspection tools, precision tools, and bench accessories for industrial, scientific, and research applications. The company was founded in 1983 and is headquartered in Ann Arbor, MI.

What’s in the Box?

  • 26700-300 zipScope microscope
  • Adjustable metal stand
  • Software
  • Instructions
