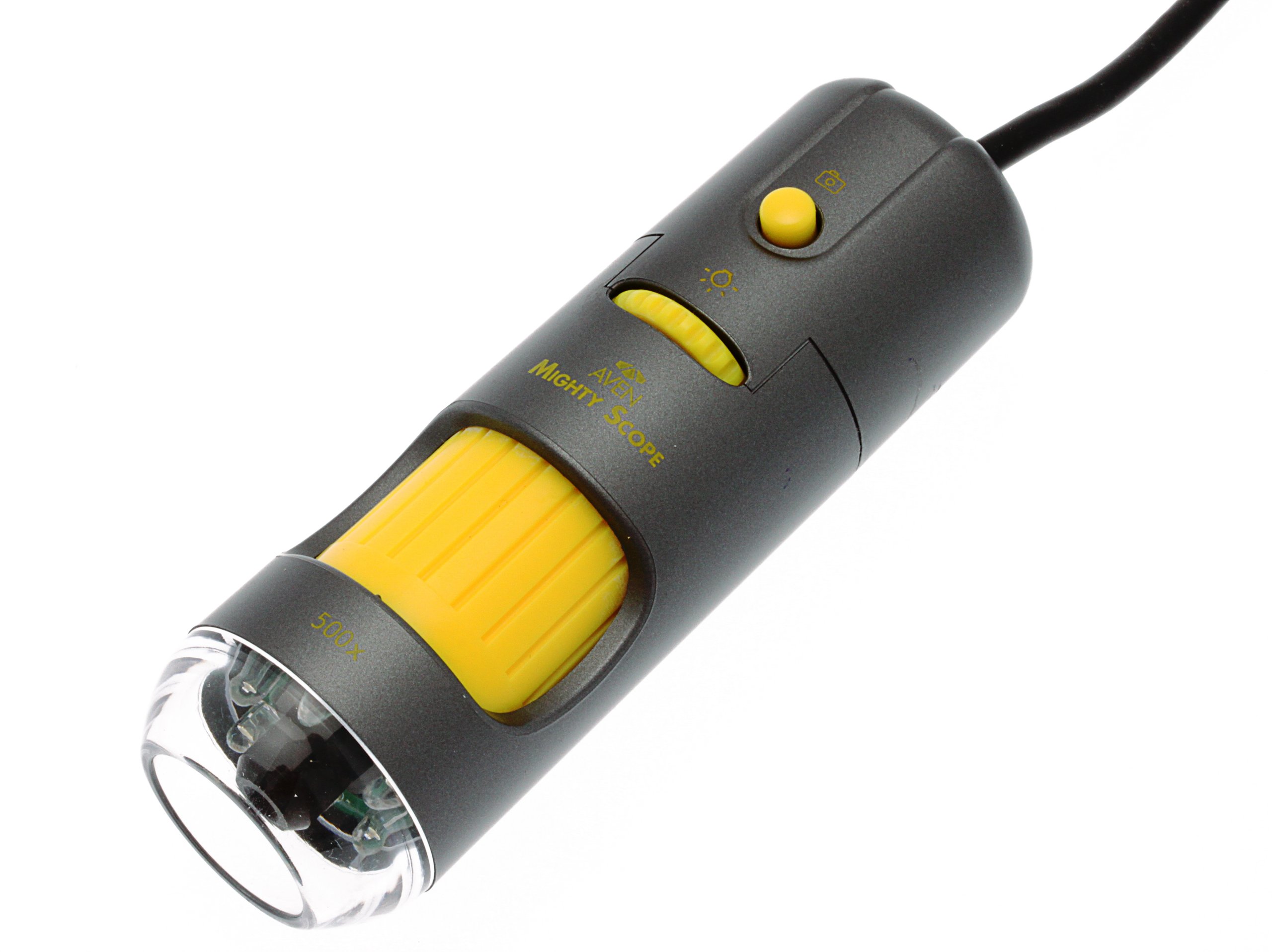

Aven 26700-204 Digital Handheld Microscope, 500x Fixed Magnification, Upper LED Illumination, With Stand, Includes 1.3MP Camera

Be the first to review this item

ASIN B00475C41C

Specifications for this item
Number of Items
1
Part Number
26700-204
Item Weight
0.3 pounds
UPC
766955371236
Brand Name
Aven
Size Name
500x Fixed Magnification
EAN
0766955371236
UNSPSC Code
41111700

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 17 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital handheld lightweight microscope operates in a variety of settings including classrooms and field applications, with an integrated 1.3MP camera and USB 2.0 output for capturing or displaying images or videos on a computer
  • Captures still images and records and streams real-time live video on a computer
  • Provides fixed 500x magnification and has a 1/4" color CMOS image sensor
  • Built-in six-LED light source with brightness control wheel on the body illuminates specimens
  • Metal, adjustable, tabletop pole stand and focus wheel for optimal resolution

Package Details

Shipping Weight: 4.1 pounds
Package Size: 8.3 x 6.5 x 2.4 inches

Product Description

The Aven 26700-204 digital handheld microscope provides fixed 500x magnification, has a 1.3MP camera, and has a USB 2.0 compatible output for displaying images and video on a computer. Its built-in light source has six LEDs with a brightness control wheel to illuminate specimens. The microscope has a 1/4" color CMOS image sensor, and operates on USB power. The included tabletop pole stand allows adjustment of microscope height. A focus wheel enables optimal resolution. Features include automatic gain control, automatic white balance, and the ability to capture images either using the microscope or a computer (sold separately). A digital handheld lightweight microscope is used in a variety of settings, including classroom and field applications, and where image capture, detailed records, or documentation is required.

The stand is constructed of metal for durability. It is 300 x 200 x 200mm (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; and D is depth, the horizontal distance from front to back). The microscope comes with a stand, cable, software, and instructions.

Specifications
Magnification range10x to 200x
Resolution1.3MP
Working distance3mm
Image sensor1/4" CMOS (color)
Image typeStill image and video display and capture
Light sourceSix built-in LEDs
Microscope standMetal, table top
Power5VDC through USB port, 110mA (AVG)
Computer connectionUSB 2.0
Video formatAVI
Cable length1.8m (6')
Microscope dimensions111mm in length and 34.5mm in diameter
Stand dimensions300 x 200 x 200mm (H x W x D)
Weight113g

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Aven manufactures optical inspection tools, precision tools, and bench accessories for industrial, scientific, and research applications. The company was founded in 1983 and is headquartered in Ann Arbor, MI.

What's in the Box?

  • Aven 26700-204 microscope
  • Stand
  • USB cable (attached)
  • CD containing software
  • Instructions
