Aven 26700-202 0.3M Analog Microscope, 10x - 200x Magnification

Be the first to review this item

ASIN B00475C40S

Specifications for this item
Number of Items
1
Part Number
26700-202
UPC
766955371229
Size Name
0.3M Analog
Brand Name
Aven
EAN
0766955371229
UNSPSC Code
41111700

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 5 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital, handheld microscope with analog Radio Corporation of America (RCA) output to a TV monitor for image display; frequently used in the engineering, tool making, quality control (QC) inspection, field research, and medical industries
  • Detailed examination for inspection of small areas and objects
  • Magnification ability of 10X to 200X, and resolution output of 510 x 496 National Television System Committee (NTSC) and 628 x 586 Phase Alternating Line (PAL) standards
  • 0.6 mega-pixel microscope has six built-in, LED lights with brightness control, and the ability to be turned on and off
  • One-year warranty

Package Details

Shipping Weight: 4.45 pounds
Package Size: 8.3 x 6.5 x 2.4 inches

Product Description

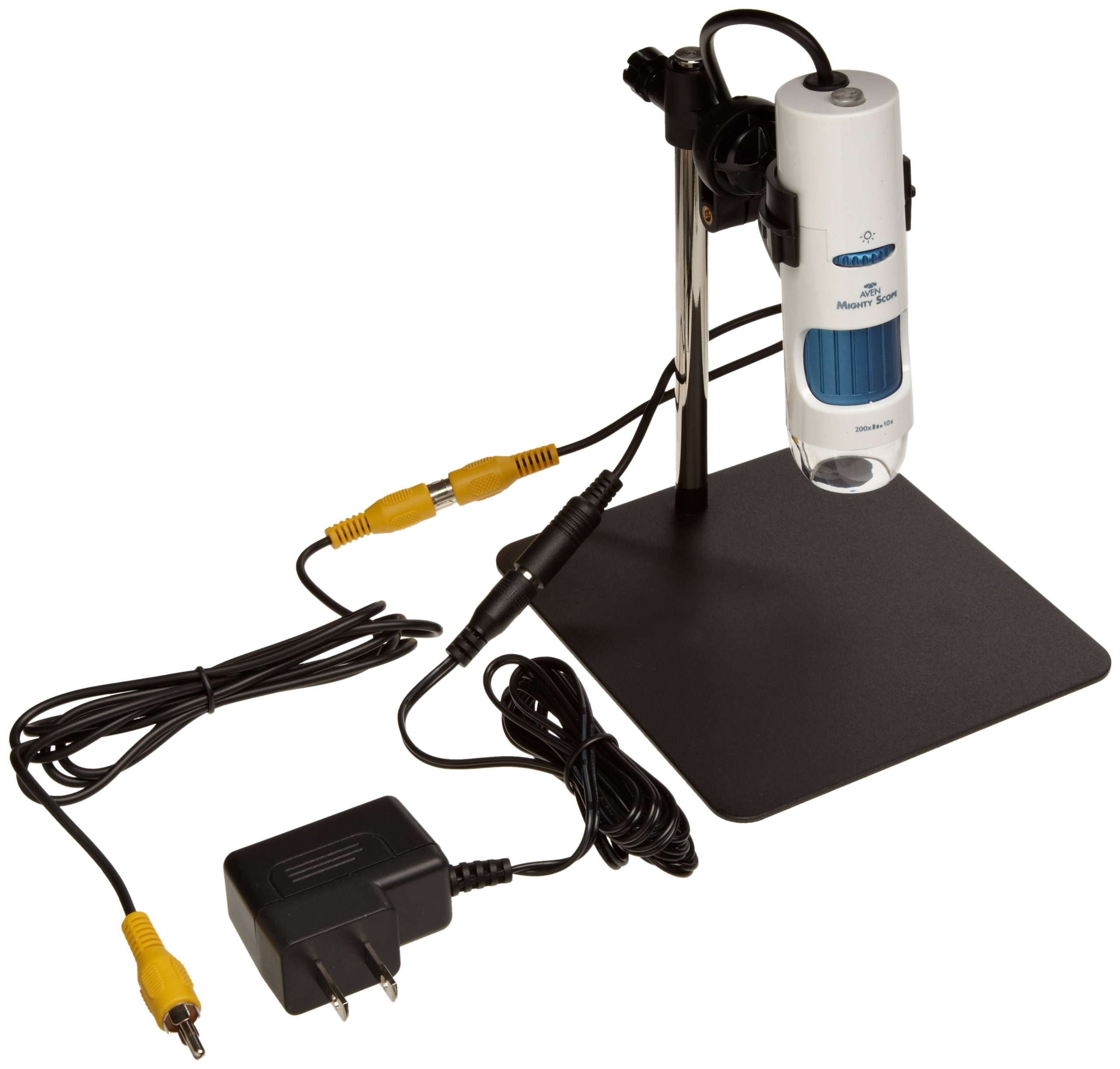

The Aven 26700-202 Mighty Scope Analog handheld, 0.6 mega-pixel microscope has six LED lights with brightness control, Radio Corporation of America (RCA) analog output to a TV monitor for image display, and a magnification ability of 10X to 200X for a variety of resolvant options. This portable microscope enhances object or image resolution, and is commonly used by hobbyists and experts in the engineering, dermatology, tool making, quality control (QC) inspection, field research, and medical industries.

The 26700-202 microscope features resolution output of 510 x 496 National Television System Committee (NTSC) and 628 x 586 Phase Alternating Line (PAL) standards. Its adjustable magnification of 10X to 200X comes in an all-in-one, compact lens. Automatic white balance controls brightness, and automatic gain control amplifies the electrical output and shows a clearer image. Pixel technology provides sharp images and accurate color. The microscope plugs into a TV monitor screen with a RCA cable. The unit comes with a metal stand with height and angle adjustment ability, and an RCA cable for output connection. The 26700-202 has a one-year warranty.

Specifications

Optical magnification 10X to 200X
Pixel technology 0.6 mega-pixels
Digital analog video 1 Vpp at 75 ohm
Resolution output 510 x 496 NTSC, and 628 x 586 PAL
Image sensor 1/3” color CMOS image sensor with 0.3M effective pixels (H x V)
Illumination Six LED lights with brightness control
Working distance (WD) 10X- 112 mm, 20X- 42 mm, 30X at 19 mm, and 40X at 8.5 mm
Stand Metal stand 15.2 x 12.7 x 12.7 cm / 6 x 5 x 5 inches (H x W x D)
Signal output NTSC/PAL
Output connection Female RCA jack
Power source 5-volt
Overall dimensions 22.86 x 12.70 x 15.9 cm / 9 x 5 x 6.25 inches (H X W X D)
Weight 0.703068 kg (1.55 lbs.)
Warranty One year

*(H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying viewing abilities. A trinocular eyepiece is used to output digital images to an internal or external device such as a camera or monitor. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also use LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Aven manufactures optical inspection tools, precision tools, and bench accessories for industrial, scientific, and research applications. The company was founded in 1983 and is headquartered in Ann Arbor, MI.

What’s in the Box?

  • 26700-202 microscope
  • RCA cable
  • Metal stand
  • Instructions
