Aven 26700-200-PLR Mighty Scope Digital with Polarizer- 10-200x Magnification

Be the first to review this item

ASIN B00475C43K

Specifications for this item
Number of Items
1
Part Number
26700-200-PLR
UPC
766955371250
Size Name
112mm
Brand Name
Aven
EAN
0766955371250
UNSPSC Code
41111700

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital, hand-held microscope with 1/4" color complementary metal-oxide semiconductor (CMOS) image sensor, polarizer, and USB 2.0 computer output to display images, for inspection of reflective surfaces, measurement, and analysis
  • Optical magnification of 10X to 200X, and resolution output of 1280 x 1024 National Television System Committee (NTSC) standards

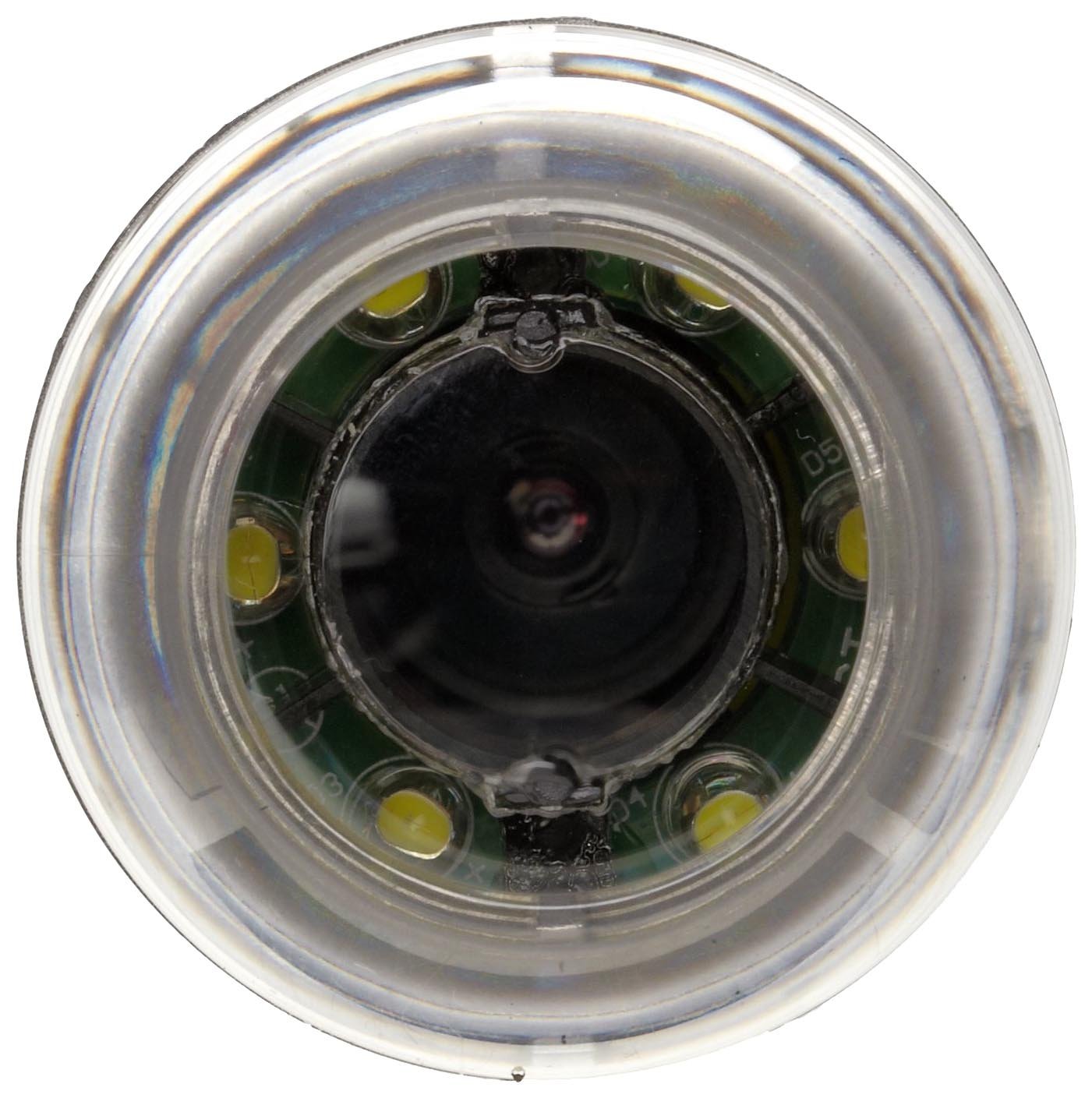

  • Six white LED lights with adjustable brightness to control illumination, automatic white balance, and the ability to be turned on and off
  • Polarizer to inspect reflective surfaces and produce clear images
  • Included software has measurement and image comparison functions.

Package Details

Shipping Weight: 4.1 pounds
Package Size: 8.3 x 6.5 x 2.3 inches

Product Description

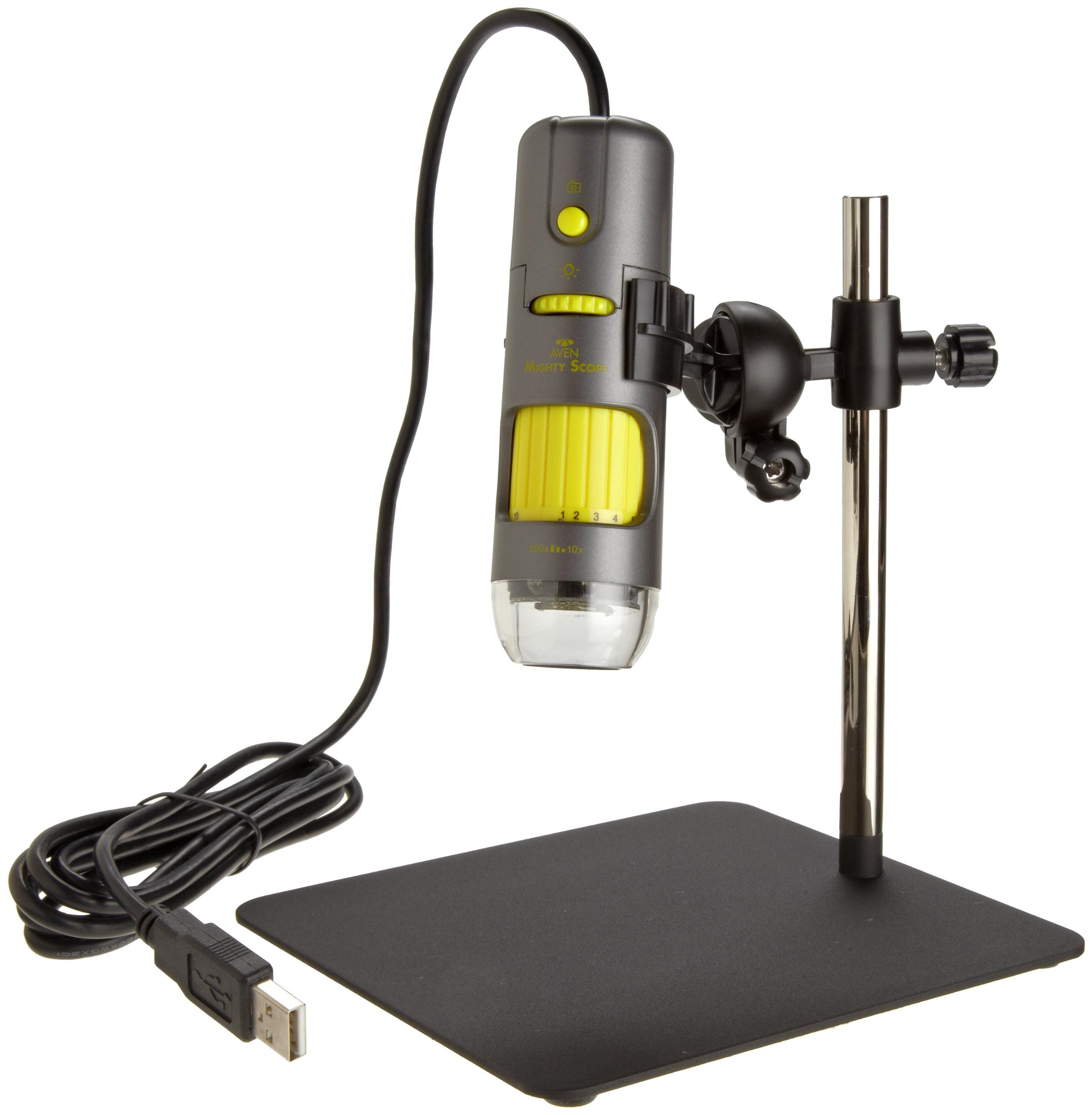

The Aven 26700-200-PLR Mighty Scope with polarizer is a hand-held, digital microscope that has a 2.0 USB interface, six white LED lights, a Microtouch shutter trigger, optical magnification ability of 10X to 200X, and comes with image and video capture software. This digital microscope enhances the resolution of an object or image, and connects to a computer for image display. It is designed for use with shiny surfaces, such as solder joints and reflective metal parts, and is commonly used for quality control (QC) inspection, medical and scientific research, geology, mineralogy, and chemistry.

This mobile microscope houses a polarizer to inspect reflective surfaces, and produce clear images. Its adjustable magnification of 10X to 200X comes in an all-in-one, compact lens. A 1/4” complementary metal-oxide semiconductor (CMOS) color image sensor manages noise reduction and image quality, and delivers high-resolution, 1280 x 1024 National Television System Committee (NTSC)-standard pixel images. The frame rate is 30 frames per second (FPS), and 15 FPS at 1.3 mega-pixels. The Mighty Scope uses six white LED lights with adjustable brightness to control illumination. Microscope lighting can be turned on and off. The microscope has automatic white balance to control brightness, and automatic gain control to amplify the electrical output and show a clearer image. A Microtouch shutter trigger allows for convenient image capture when in hand-held mode, or mounted on a stand. Included software captures images and has measurement and image comparison functions. The microscope comes with an adjustable metal stand that includes height and angle adjustment.

Specifications

Optical magnification 10X to 200X
Image sensor 0.25” color CMOS
Effective pixels 1.3 mega-pixels (M)
Illumination 6 adjustable LED lights
Gain control Automatic
White balance Automatic
Snap shot mode Hardware and software controllable
Working distance (WD) 10X at 112mm, 20X at 72mm, 30X at 19mm, 40X at 8.5mm
Frame rate 30fps, 15 fps at 1.3 M
Operating system Microsoft Windows XP, Windows XP SP2, Windows Vista, and Windows 7
Power source 5 VDC through 2.0 USB port
Power consumption 110 mA (AVG)
Overall dimensions 22.9 x 12.7 x 15.9cm/9 x 5 x 6.25 inches (H x W x D)
Weight 0.703068 kilograms (1.55lb.)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Aven manufactures optical inspection tools, precision tools, and bench accessories for industrial, scientific, and research applications. The company was founded in 1983 and is headquartered in Ann Arbor, MI.

What’s in the Box?
  • 26700-200-PLR Mighty Scope microscope
  • Adjustable metal stand
  • Instructions
