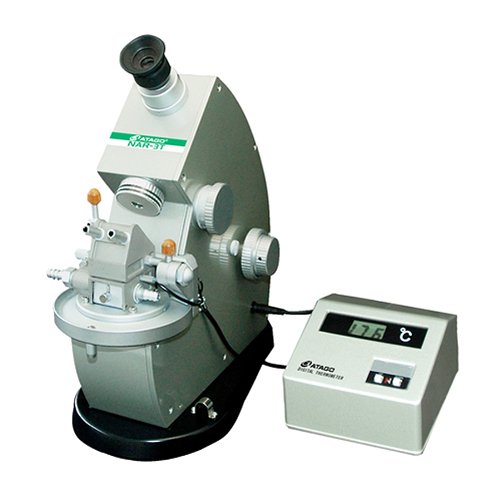

Atago 1230 NAR-3T High Accuracy Abbe Refractometer, Refractive Index 1.30000 to 1.71000nD, Brix 0.0% to 95.0%

Be the first to review this item

ASIN B004J4XCJY

Specifications for this item
Number of Items
1
Measurement Type
Brix , Temperature
Part Number
1230
Temperature Range
5/50  Degrees Celsius
Size Name
Brix 0.0% to 95.0%
Brand Name
Atago
UNSPSC Code
41115312

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 9 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Benchtop Abbe refractometer for high-accuracy refractive index measurement (1.3000 to 1.7000nD) and Brix (0.00 to 95.00%) scale of liquid and solid samples such as glass, plastic, lenses, rubber, solid films, and food and beverages in a 5 to 50 degrees C temperature range and measured with a thermometer unit with a 0.0 to 50.0 degrees C range
  • LED-illuminated digital display of temperature readings in degrees C, and immediate analog scale display of measurement readings with a D (deuterium) line (589 nm) fiber-optic light source
  • Works with an AC 100V to 240V, 50/60Hz power source, has a 110V power connection cable with a 6-foot power cord, and can be calibrated with distilled water for ease of operation
  • Upright, angled body (12 × 31 × 34cm) with monocular, focusable, cushioned eyepiece for viewing
  • Can be connected to a circulating constant temperature bath (sold separately) for sample temperature control

Package Details

Shipping Weight: 24.75 pounds
Package Size: 19.6 x 17.4 x 9.2 inches

Product Description

The Atago 1230 NAR-3T is a benchtop Abbe refractometer for high-accuracy refractive index measurement (1.3000 to 1.7000nD) and Brix (0.00 to 95.00%) scale of liquid and solid samples such as glass, plastic, lenses, rubber, solid films, and food and beverages in a 0.0 to 50.0 degrees C temperature range, has an LED digital display of temperature in a 0.0 to 50.0 degrees C range, and an analog display of measurement reading. A refractometer measures the refractive index of a liquid or solid in a sample, converts it to concentration in units of percent by weight, and displays the results. A Brix refractometer measures the refractive index of a solution in a sample, converts it to sugar concentration in units of percent by weight (% Brix, also known as degrees Brix), and displays the results. Refractometers are commonly used in the optical, chemical, geological, ecological, culinary, food and beverage, pharmaceutical, and educational industries, and for water-testing applications.

This refractometer has an Abbe condenser to enhance resolution and features double knobs to provide quick and finer control. The Atago 1230 NAR-3T refractometer is housed in a durable, die-cast aluminum metal body for resistance to heat and organic solvents. It can be connected to a circulating constant temperature bath (sold separately) for specimen temperature control. A digital LED displays the temperature reading and the unit uses a D (deuterium) line (589nm) fiber-optic light source for operation. A monocular, focusable, cushioned eyepiece provides analog scale viewing. The analog scale is orange and gray with a high-contrast display for clear visibility of the boundary (measurement) and memory intersection lines, and has a cross-hair refraction view for measurement. An adjustable knob provides color (boundary) alignment. The Atago 1230 NAR-3T model can be calibrated with distilled water. Calibration can be controlled with an exposed calibration screw and included screwdriver. The instrument has a 6-foot power cord and complies with American Society for Testing and Materials (ASTM) standards. It also comes with ten plastic tube bands, which work like zip ties to tighten the tubes for water temperature control of the water bath. In addition, the unit comes with a digital thermometer, an AC power cable, a lamp cable, a calibration screwdriver, a screwdriver for prism replacement, an inspection certificate, a test report, and an instruction manual.

Specifications

Measurement scale range Refractive index (nD) 1.30000 to 1.71000, Brix 0.00 to 95.00%, Temperature 0.0 to 50.0 degrees C
Specimen measurement temperature range 5 to 50 degrees C
Accuracy Refractive index (nD) + or - 0.0001, Brix + or - 0.05%, Temperature + or – 0.2 degrees C
Resolution Refractive index (nD) 0.0002, Brix 0.1%, Temperature 0.1 degree C
Average dispersion value nF-nC (to be calculated according to conversion table)
Ambient temperature for unit operation 5 to 40 degrees C
Light source D line (589nm) with LED lamp (approximating to wavelength of D-line)
Sample volume 0.3ml
Body type Die-cast aluminum
Power supply AC100 to 240V, 50/60Hz
Power consumption 5VA
Refractometer dimensions 12 × 31 × 34cm (H x W x D)
Thermometer dimensions 10 × 11 × 7cm (H x W x D)
Refractometer weight 9.0kg
Thermometer weight 0.5kg
Warranty Limited two-year

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Refractometers are used to determine substance content in a sample, to provide unit readings of substances including Brix, salinity, and alcohol; to detect chemical impurities, or to measure components of samples such as industrial fluid. Refractometers measure the refractive index of a substance, which is its optical characteristic, and the number of dissolved particles in it. The refractive index is the ratio of the speed of light in empty space to the speed of light in a substance; when light passes from one medium to another. Generally, a low concentration sample has a larger angle of refraction than a high concentration sample. For example, a straw placed in a high-concentration substance appears more bent than when placed in a low-concentration substance. Refractometers can work with natural light, or with an external power source such as batteries or electricity. They typically have either a digital or analog reading display, though some units utilize both types. Some analog-display refractometers can be used for both solids and liquids. Digital-display refractometers are used exclusively for liquids. Types of refractometers include handheld, benchtop, and in-process. Handheld refractometers are elongated and telescope-shaped, or shorter and rectangular. Analog handheld refractometer readings are obtained by looking through the monocular eyepiece and viewing where the boundary line intersects with the memory line. Digital handheld models provide a digital readout. Benchtop refractometers typically measure with a higher degree of accuracy than handheld units. In-process refractometers are used for continuous process monitoring and data readouts, and are generally fitted into a piping system for ongoing analysis. Refractometers are used in a wide variety of applications in the culinary, food and beverage, pharmaceutical, educational, geological, chemical, ecological, and automotive industries, and for water-testing applications.

Atago Co., Ltd. manufactures analytical instruments such as refractometers, polarimeters, and saccharimeters, as well as a variety of meters. The company, founded in 1940 and headquartered in Tokyo, offers products that comply with Hazard Analysis and Critical Control Points (HACCP), Good Manufacturing Practices (GMP), and Good Laboratory Practices (GLP) system standards, and many International Organization for Standardization (ISO) standards.

What’s in the Box?

  • 1230 NAR-3T refractometer
  • Digital thermometer unit, part # RE-1260
  • AC power cable
  • Lamp cable, part # RE-1176
  • Screwdriver for calibration (attached to main unit)
  • Screwdriver for main prism replacement
  • Tube bands, part # RE-8507
  • Inspection certificate
  • Test report
  • Instructions
