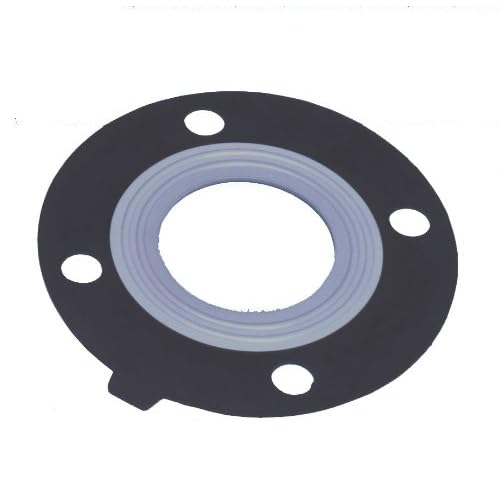

Asahi America Low Torque AV Gasket, EPDM, Full Face, 1-1/2" Pipe Size, 1.7" ID, 4.9" OD

Be the first to review this item


Specifications for this item
Number of Items
Item Shape
Full Face
Material Type
EPDM (Ethylene Propylene Diene Monomer Rubber)
Outside Diameter
4.9  inches
Part Number
Brand Name
Asahi America
Size Name
Manufacturer Series Number
Low Torque AV
Upper Temperature Range
195  Degrees Fahrenheit
65 - 68 A Durometer
Inside Diameter
1.7  inches
LowerTemperature Range
40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 7 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Perfect sealing at low bolt tightening torque ratings, longer gasket life
  • Ideal for plastic piping systems, as well as metal or plastic-lined metal systems
  • Working temperature 40 - 195° F
  • Approx. a 1/3 bolt tightening torque rating as compared with flat or envelope type gasket
  • EPDM - durometer A, hardness 65 - 71

Package Details

Shipping Weight: 0.1 pounds
Package Size: 5.2 x 5 x 0.6 inches

Product Description

Asahi/America valve gaskets offer a unique double convex ring design that gives optimum sealing with only one third the torque commonly required with flat faced gaskets. All AV Gaskets shall be of low torque, full face to ANSI B16.5 dimensions and shall have two concentric, convex, molded rings between center hole and bolt hole circle
