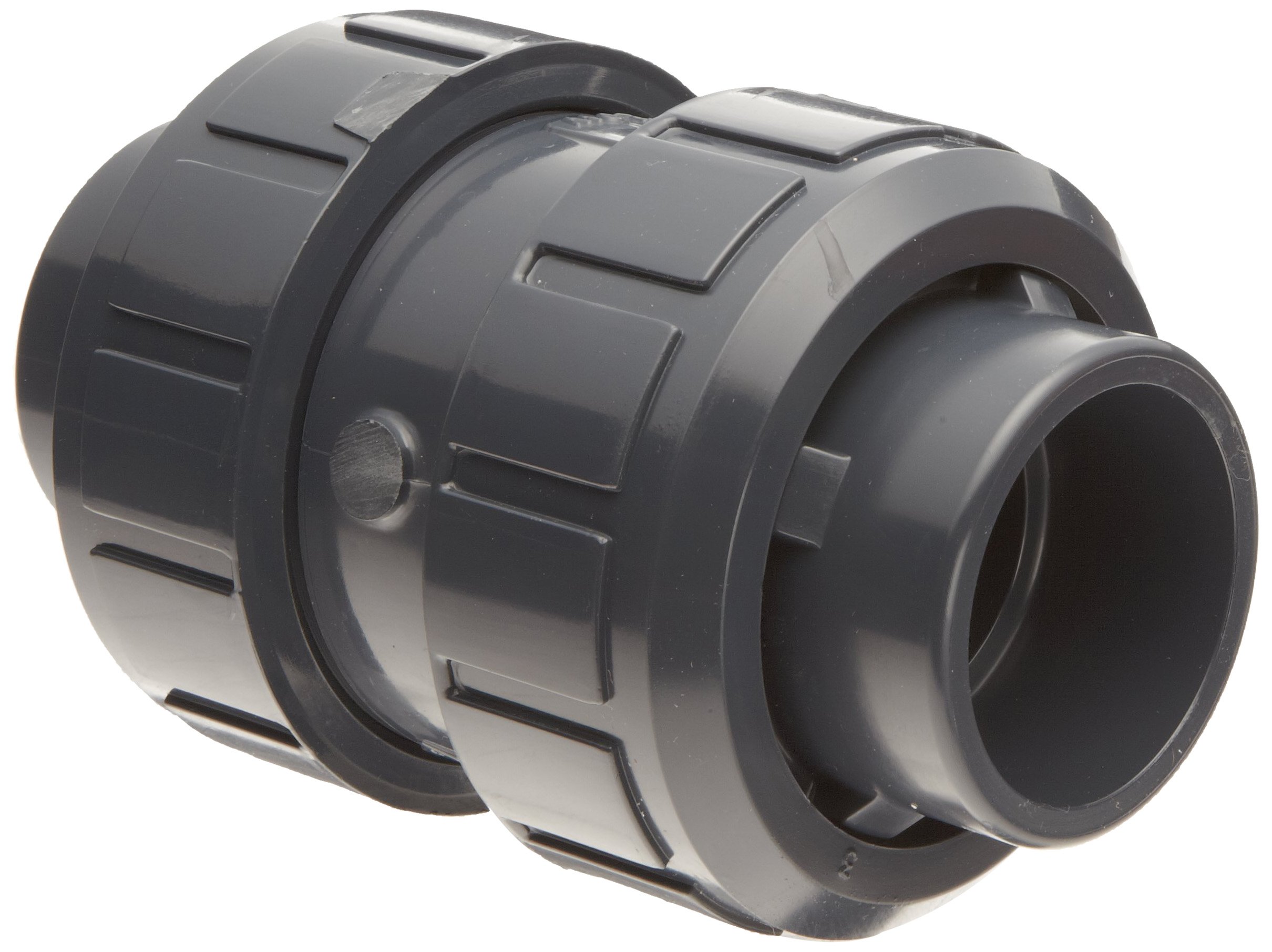

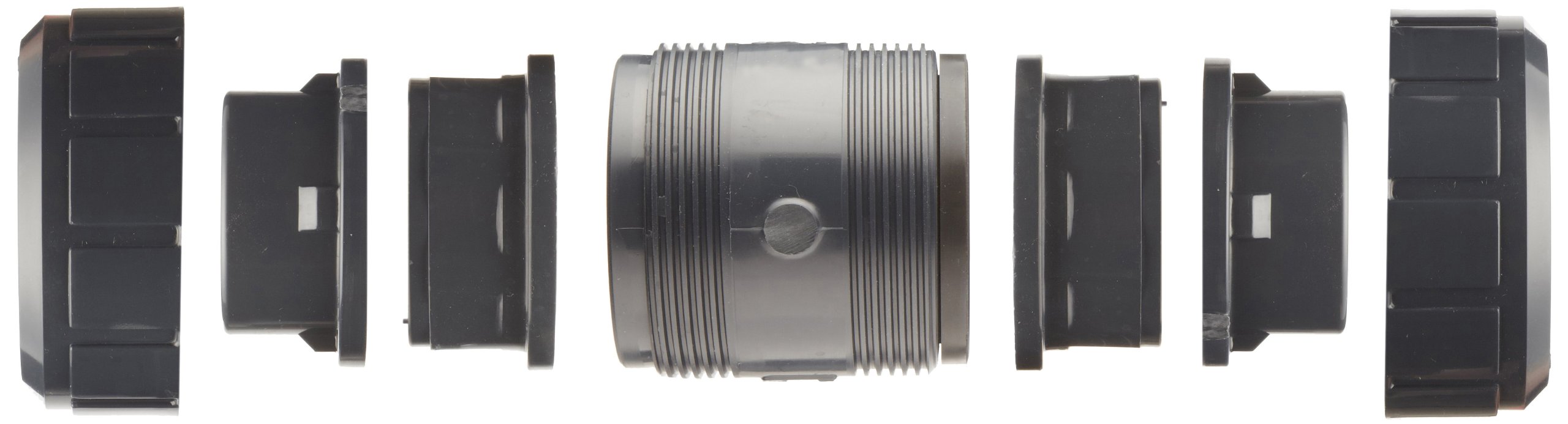

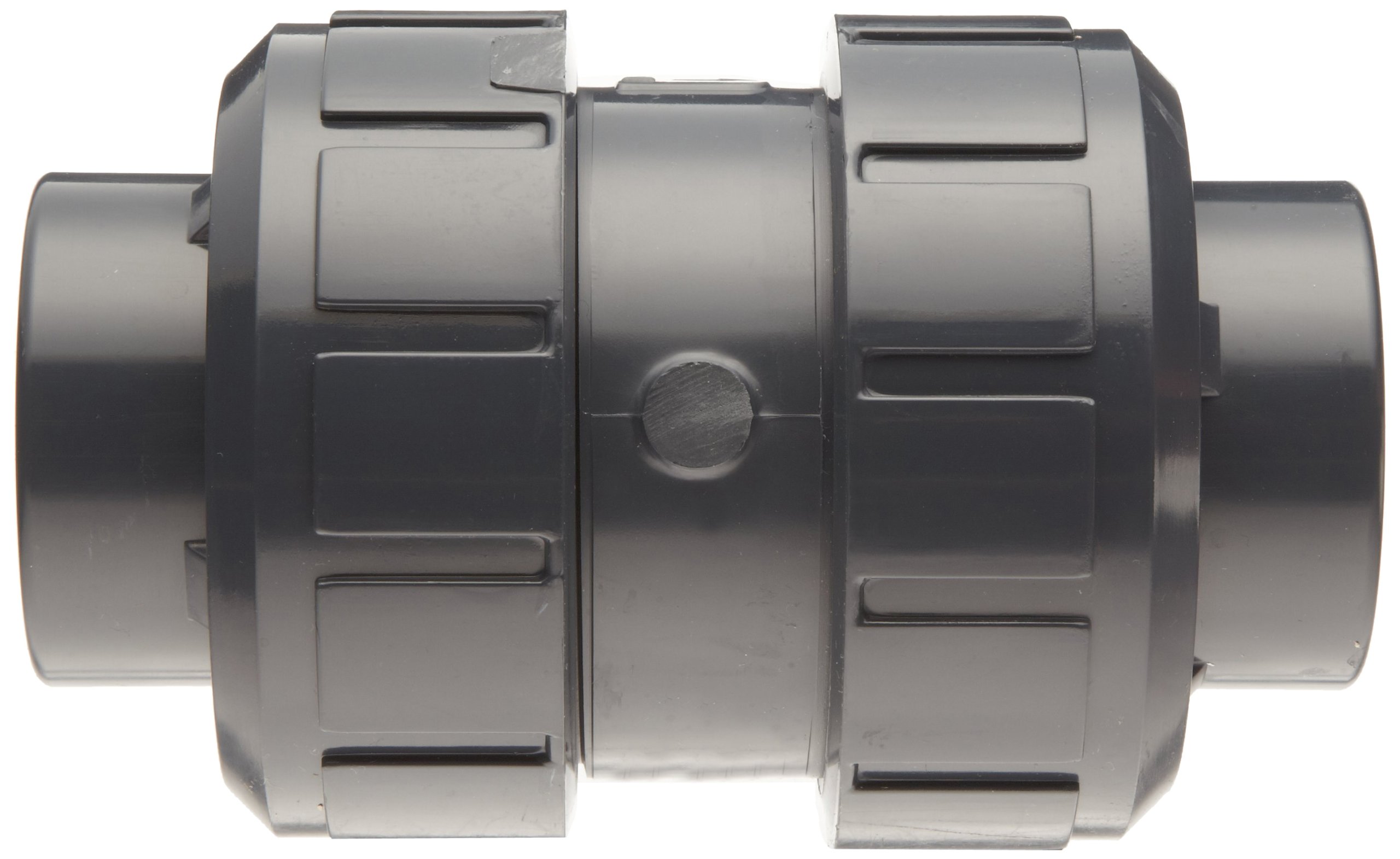

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Asahi America True Union PVC Check Valve, FKM Seat, Socket Weld & NPT Female Convertible

Be the first to review this item

Product Specifications
Seal Material Type
FKM
Seat Material Type
FKM
Material Type
Polyvinyl Chloride (PVC)
Operation Mode
Manual
Brand Name
Asahi America
Manufacturer Series Number
True Union
Upper Temperature Range
120  Degrees Fahrenheit
Specification Met
NSF-61
Connector Type
Socket Weld & NPT Female Convertible
Style Name
Socket
LowerTemperature Range
30  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 16 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Connection Size Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-5 of 5
1/2" 0.59" 1213005 B005TKW9MI 2 $43.08 Buy Options
3/4" 0.67" 1213007 B005TKWA5Y 2 $53.93 Buy Options
1" 0.79" 1213010 B005TKWAOA 1 $72.94 Buy Options
1-1/2" 0.98" 1213015 B005TKWB44 2 $124.75 Buy Options
2" 1.10" 1213020 B005TKWBJY 2 $136.56 Buy Options

Key Features

  • Check valve with free moving ball; installs vertically or horizontally
  • Made from PVC for corrosion resistance, high strength, and less weight than fittings made from metal; FKM seat provides increased resistance to high temperatures, oil, grease, and chemicals
  • Socket-weld ends for welding to unthreaded pipes and female NPT threads for use with male threaded pipes
  • 6 pound minimum shut-off; working temperature range of 30 to 120 degrees Fahrenheit
  • Meets NSF 61 for quality assurance

Product Description

The Asahi America True Union check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent back flow. It can be installed vertically or horizontally. The valve body is made of polyvinyl chloride (PVC) for corrosion resistance, high strength, and less weight than fittings made from metal. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings, and it is suitable for cold water, venting, and waste applications. This valve has a fluorocarbon (FKM) seat, which provides increased resistance to high temperatures, oil, grease, and chemicals, and has a solid thermoplastic ball. It has a socket-weld end for connecting to unthreaded pipe ends and National Pipe Taper (NPT) threads for creating tighter seals than straight threads. Minimum shut-off is 5 pounds per square inch (psi), and the working temperature range is 30 to 120 degrees Fahrenheit. This valve meets National Sanitation Foundation (NSF) 61 for quality assurance.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Asahi/America manufactures corrosion-resistant fluid products. The company, founded in 1971 and headquartered in Malden, MA, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004, ATEX, RoHS, and NSF-61 certification standards.
