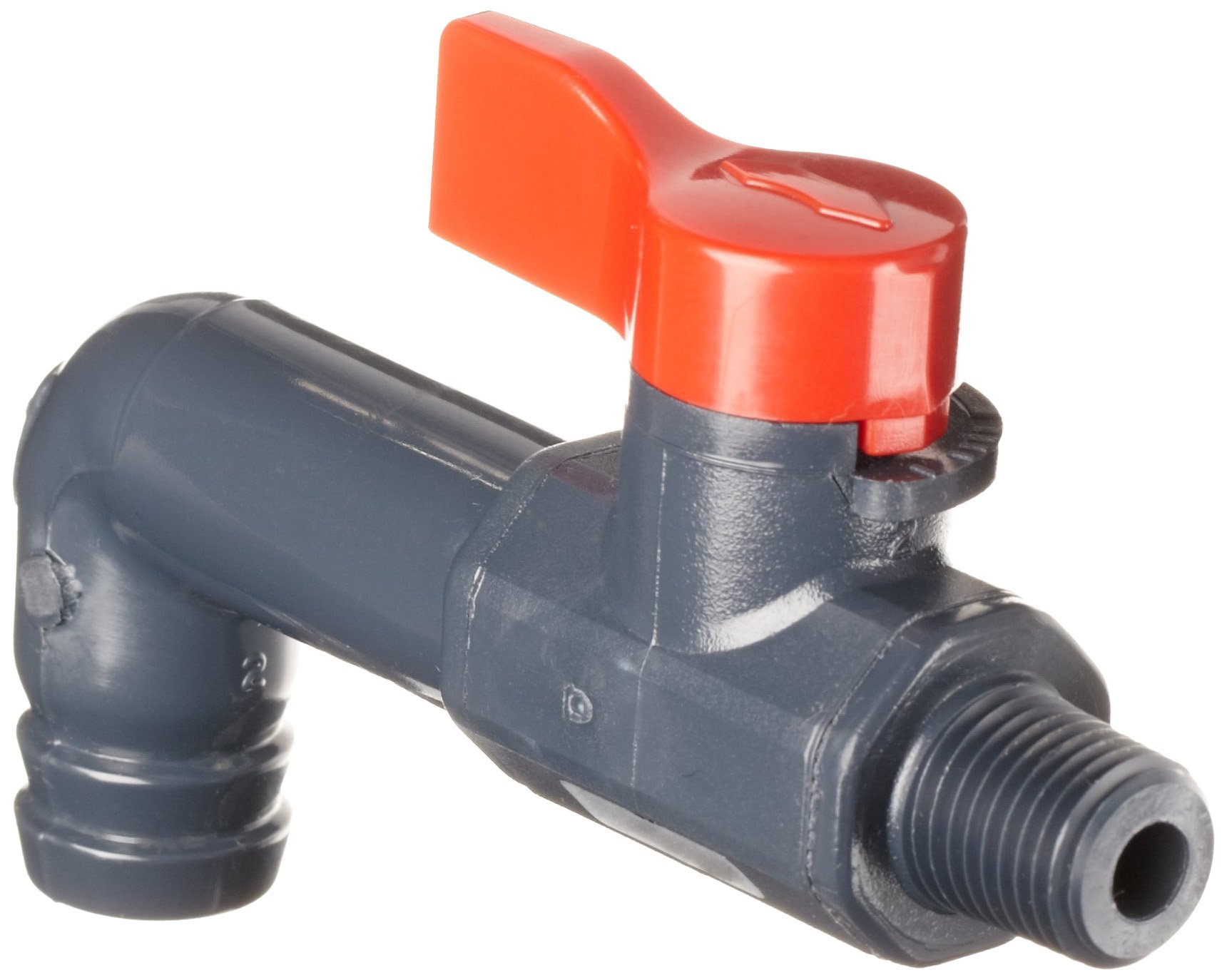

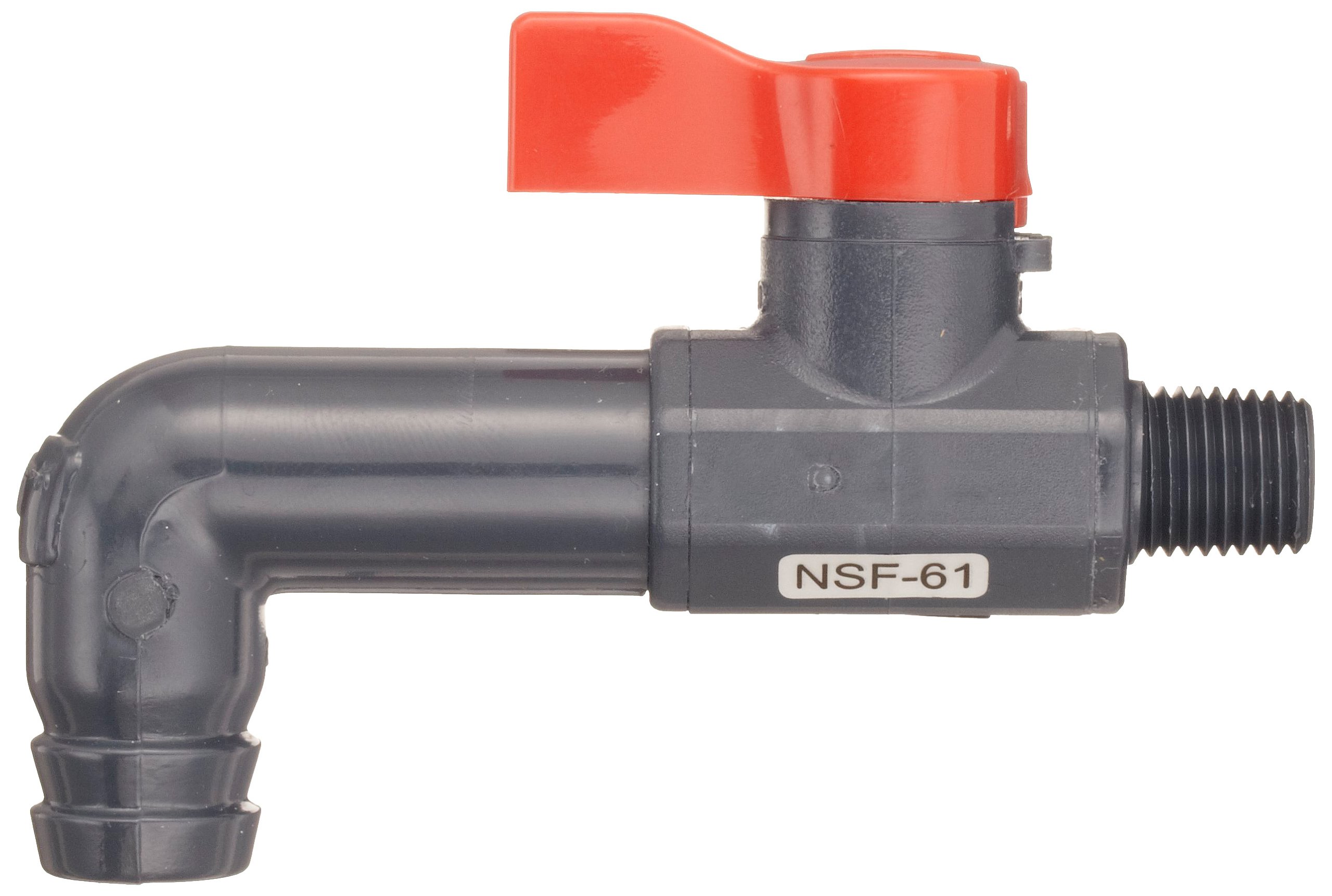

Asahi America Labcock PVC Ball Valve, Elbow, Unibody, Lever, 1/4" NPT Male x 0.63 OD Elbow

Be the first to review this item

ASIN B005TKW6M6

Specifications for this item
Item Shape
Elbow
Seat Material Type
EPDM
Operation Mode
Manual
Part Number
1089002
Handle Type
Lever
Brand Name
Asahi America
Specification Met
NSF-61
Style Name
Threaded
Number of Items
1
Seal Material Type
EPDM
Material Type
PVC (Polyvinyl Chloride)
For Tube Outside Diameter
5/8
Maximum Steam Pressure Description
Not Rated
Structure Description
Unibody
Size Name
1/4" x 5/8"
Manufacturer Series Number
Labcock
Upper Temperature Range
120  Degrees Fahrenheit
Ball Material Type
PVC
Maximum Pressure
150  PSI
Connector Type
NPT Male X Elbow
UNSPSC Code
40141607
For Pipe Size
1/4 inches
Overall Length
3.66  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 18 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pressure rated at 150 psi at 120ยบ F (water)
  • Precise fingertip control
  • Calibrated flow indicator
  • Rugged unibody construction, sturdy stem
  • Full vacuum rated, 29.9" Hg

Package Details

Shipping Weight: 0.05 pounds
Package Size: 3.8 x 2.7 x 0.75 inches
