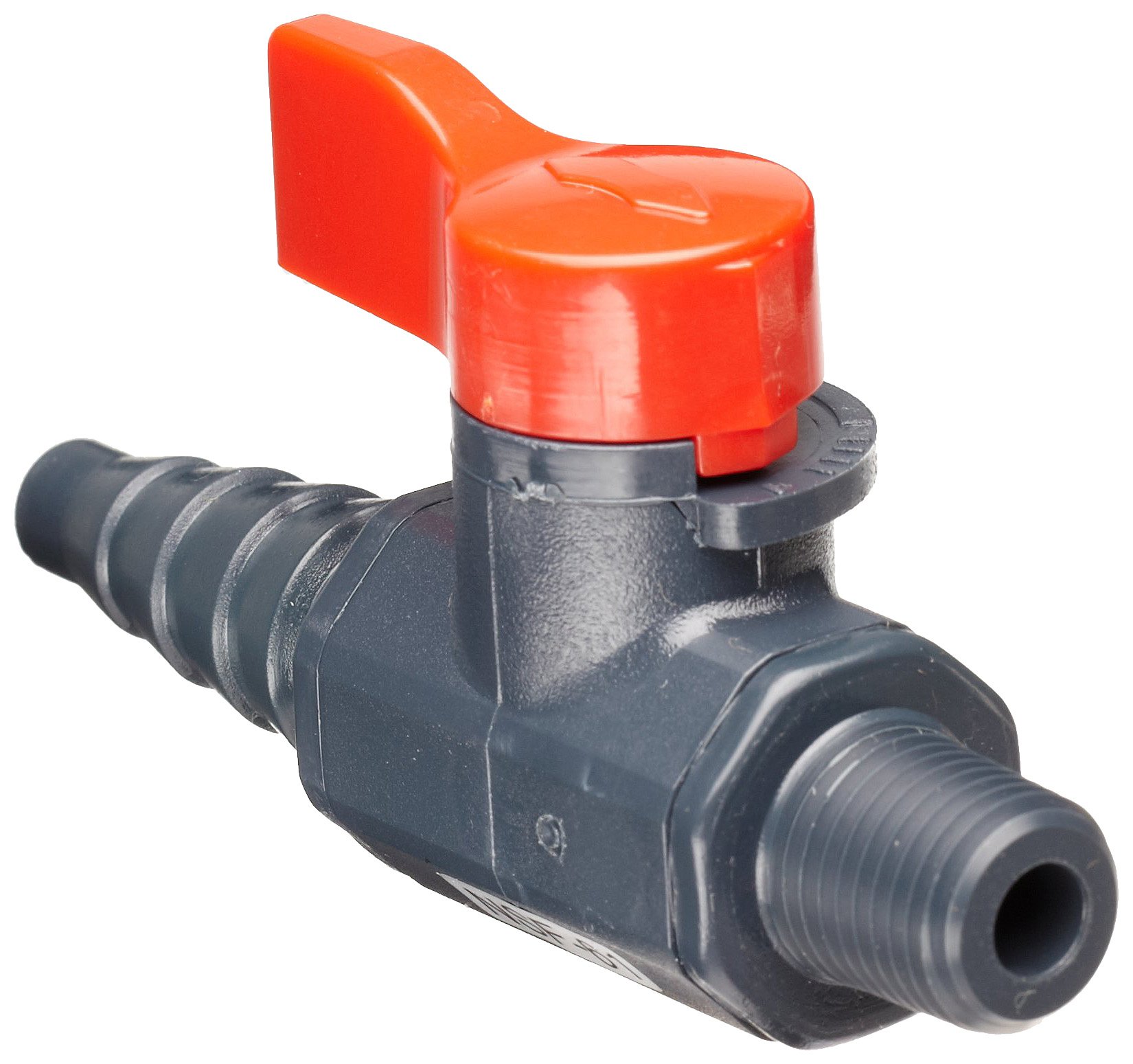

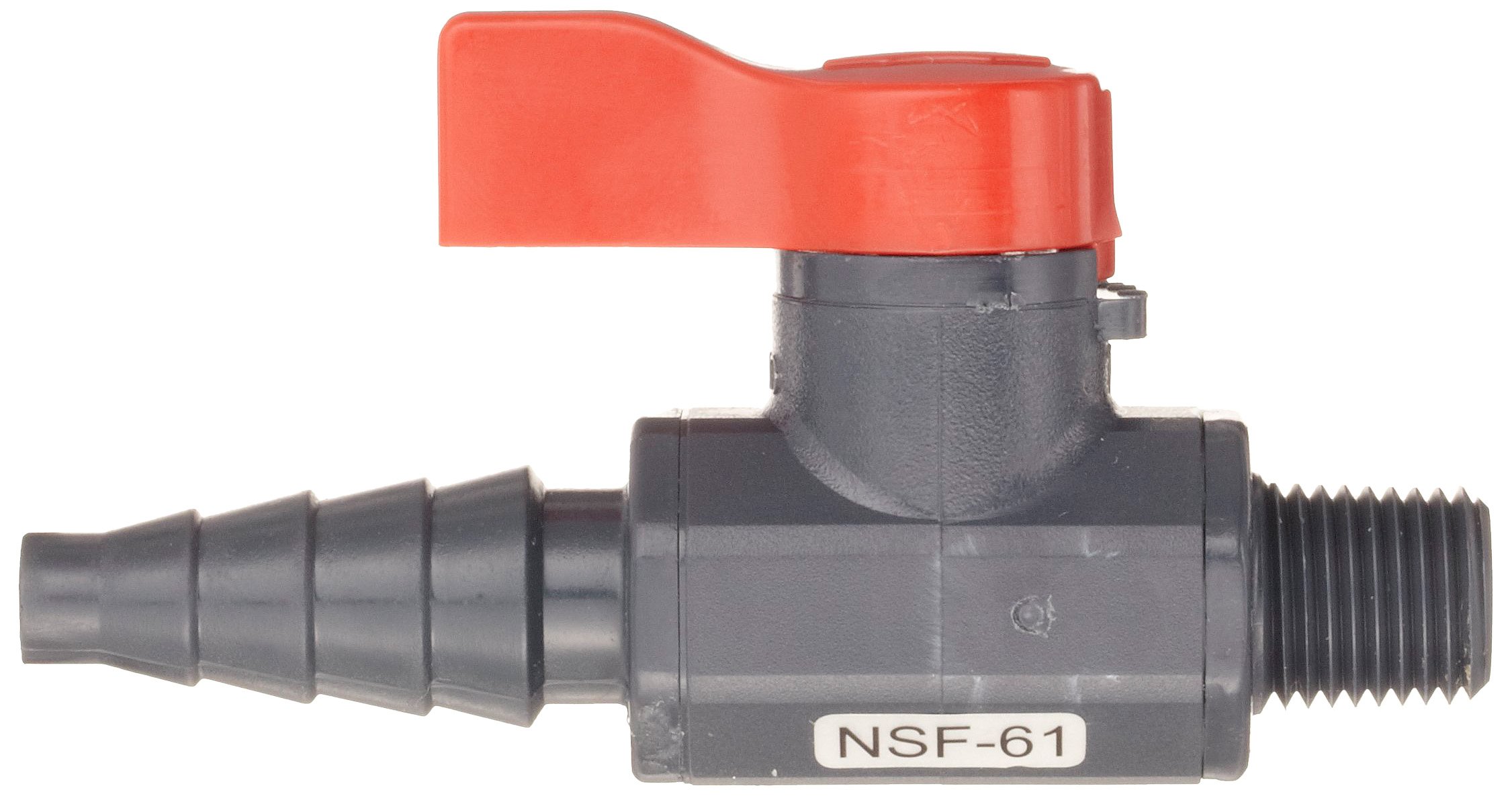

Asahi America Labcock PVC Ball Valve, Inline, Unibody, Lever, 1/4" NPT Male x 3/8" Hose

Be the first to review this item

ASIN B005TKW50E

Specifications for this item
Item Shape
Inline
Seat Material Type
EPDM
Operation Mode
Manual
Part Number
1078002
Handle Type
Lever
Brand Name
Asahi America
Specification Met
NSF-61
Style Name
Threaded
Number of Items
1
Seal Material Type
EPDM
Material Type
PVC (Polyvinyl Chloride)
Maximum Steam Pressure Description
Not Rated
Structure Description
Unibody
Size Name
1/4" x 3/8"
Manufacturer Series Number
Labcock
Upper Temperature Range
120  Degrees Fahrenheit
Ball Material Type
PVC
Maximum Pressure
150  PSI
Connector Type
NPT Male X Hose
UNSPSC Code
40141607
Overall Length
3.48  inches
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • PVC for less weight than valves made from metals
  • Lever handle for on/off manual control
  • Calibrated flow indicator to monitor flow
  • Inline valve for connecting a pipe and a hose going in the same direction
  • Male NPT threads for connecting to a female threaded pipe and a hose

Package Details

Shipping Weight: 2.25 pounds
Package Size: 23.5 x 6.2 x 2.3 inches

Product Description

This Asahi America Labcock PVC ball valve is made of PVC (polyvinyl chloride) for less weight than metals, and has a lever handle for on/off manual control and a calibrated flow indicator to monitor flow. This inline valve has 1/4" male National Pipe Taper (NPT) threads to connect to a female threaded pipe and a 3/8" hose connection to connect to a hose going in the same direction. The valve is a single-piece valve construction for reduced possibility of leakage, and is pressure rated to 150 pounds per square inch (psi) at 120 degrees F (water), and has a full vacuum rating of 29.9" Hg. This valve has an EPDM (ethylene propylene diene monomer) seal for increased water resistance and meets NSF International/American National Standards Institute (NSF/ANSI) 61 standards for potable water use. This inline ball valve is suitable for chemical processing and water and wastewater applications.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Asahi/America, Inc. manufactures corrosion-resistant fluid flow products, including thermoplastic valves, actuators, flow meters, tubing systems, and single and double containment piping systems. The company, founded in 1977 and headquartered in Malden, MA, meets International Organization for Standardization (ISO) 9001:2008 and National Sanitation Foundation (NSF) 61 standards.
