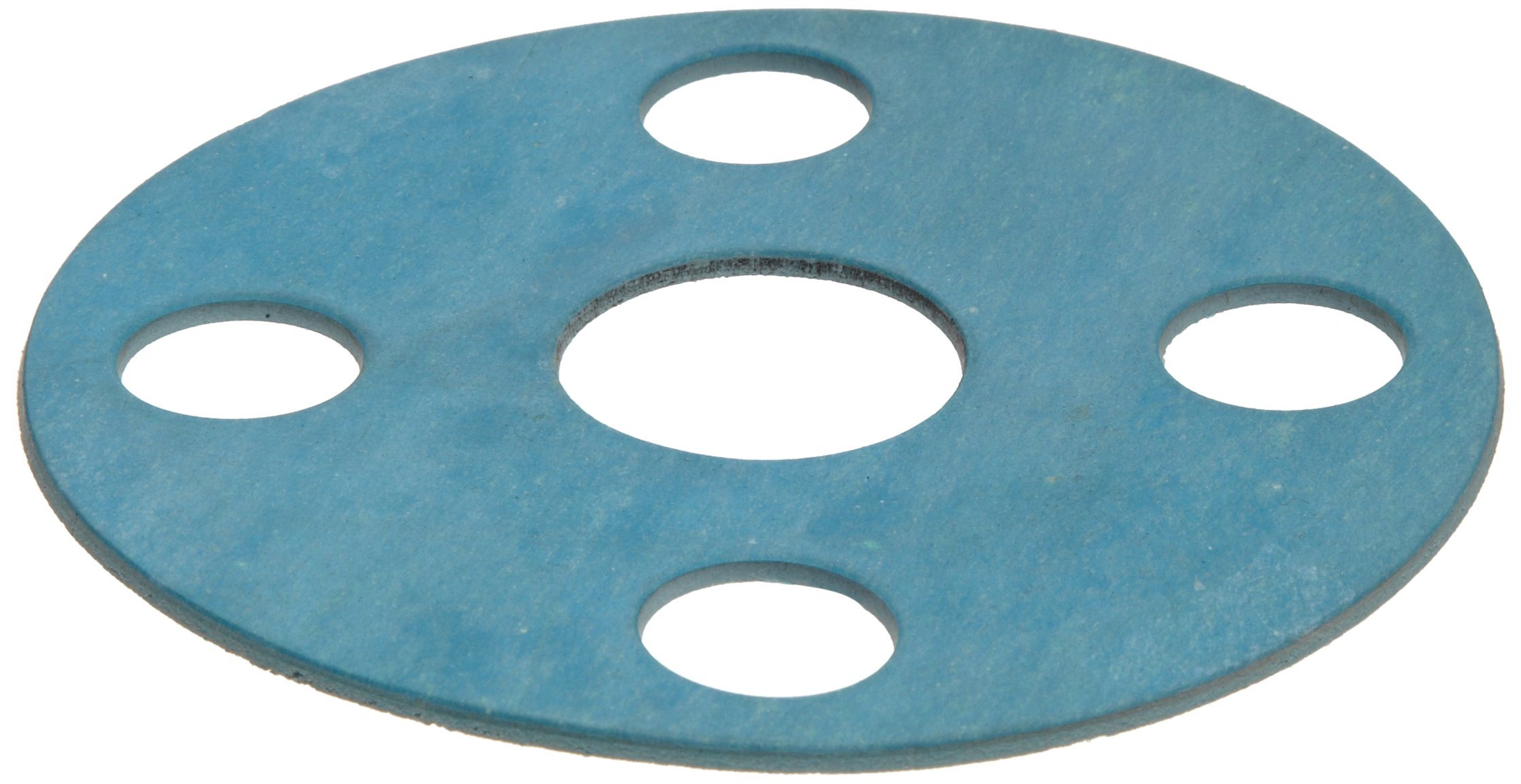

Aramid/Buna-N Flange Gasket, Full Face, Blue, Fits Class 150 Flange

Be the first to review this item

Product Specifications
Item Shape
Full Face
For Use With Product Type
All-purpose
Color Name
Blue
Material Type
Aramid/Buna-N
Thickness
n/a  inches
Brand Name
Small Parts
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
ASTM F104
Maximum Pressure
1000  PSI
UNSPSC Code
31400000
Connector Type
Pipe Size
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 11 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Compatible with pipe size string Compatible tube outside diameter string Size name Inside diameter string Outside diameter Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-15 of 15
1 1/2 inches n/a inches 5 inches 1-29/32 inches 5 inches 1 B0075DV2X4 Usually ships in 1 to 2 months $5.78 Buy Options
1 inches n/a inches 4-1/4 inches 1-5/16 inches 4-1/4 inches 1 B0075DV5P4 yes $4.64 Buy Options
1-1/4 inches n/a inches 4-5/8 inches 1-21/32 inches 4-5/8 inches 1 B0075DV9V4 yes $4.24 Buy Options
1/2 inches n/a inches 3-1/2 inches 27/32 inches 3-1/2 inches 1 B0075DV73O yes $4.56 Buy Options
10 inches n/a inches 16 inches 10-3/4 inches 16 inches 1 B0075DV8K6 yes $22.27 Buy Options
12 inches n/a inches 19 inches 12-3/4 inches 19 inches 1 B0075DVB3U yes $57.50 Buy Options
2 inches n/a inches 6 inches 2-3/8 inches 6 inches 1 B0075DVC0W yes $6.60 Buy Options
2-1/2 inches n/a inches 7 inches 2-7/8 inches 7 inches 1 B0075DVD06 yes $7.87 Buy Options
3 inches n/a inches 7-1/2 inches 3-1/2 inches 7-1/2 inches 1 B0075DVEE6 yes $7.73 Buy Options
3-1/2 inches n/a inches 8-1/2 inches 4 inches 8-1/2 inches 1 B0075DVHZ2 yes $9.37 Buy Options
3/4 inches n/a inches 3-7/8 inches 1-1/16 inches 3-7/8 inches 1 B0075DVGTO yes $4.56 Buy Options
4 inches n/a inches 9 inches 4-1/2 inches 9 inches 1 B0075DVJ78 yes $5.60 Buy Options
5 inches n/a inches 10 inches 5-9/16 inches 10 inches 1 B0075DVKAE yes $9.33 Buy Options
6 inches n/a inches 11 inches 6-5/8 inches 11 inches 1 B0075DVMCA yes $10.61 Buy Options
8 inches n/a inches 13-1/2 inches 8-5/8 inches 13-1/2 inches 1 B0075DVNPQ yes $15.05 Buy Options

Key Features

  • Fits Class 150 Flange
  • Min temperature: -40 degrees_fahrenheit
  • Max temperature: 400 degrees_fahrenheit
  • Maximum pressure: 1000 pounds_per_square_inch
  • ASTM F104
