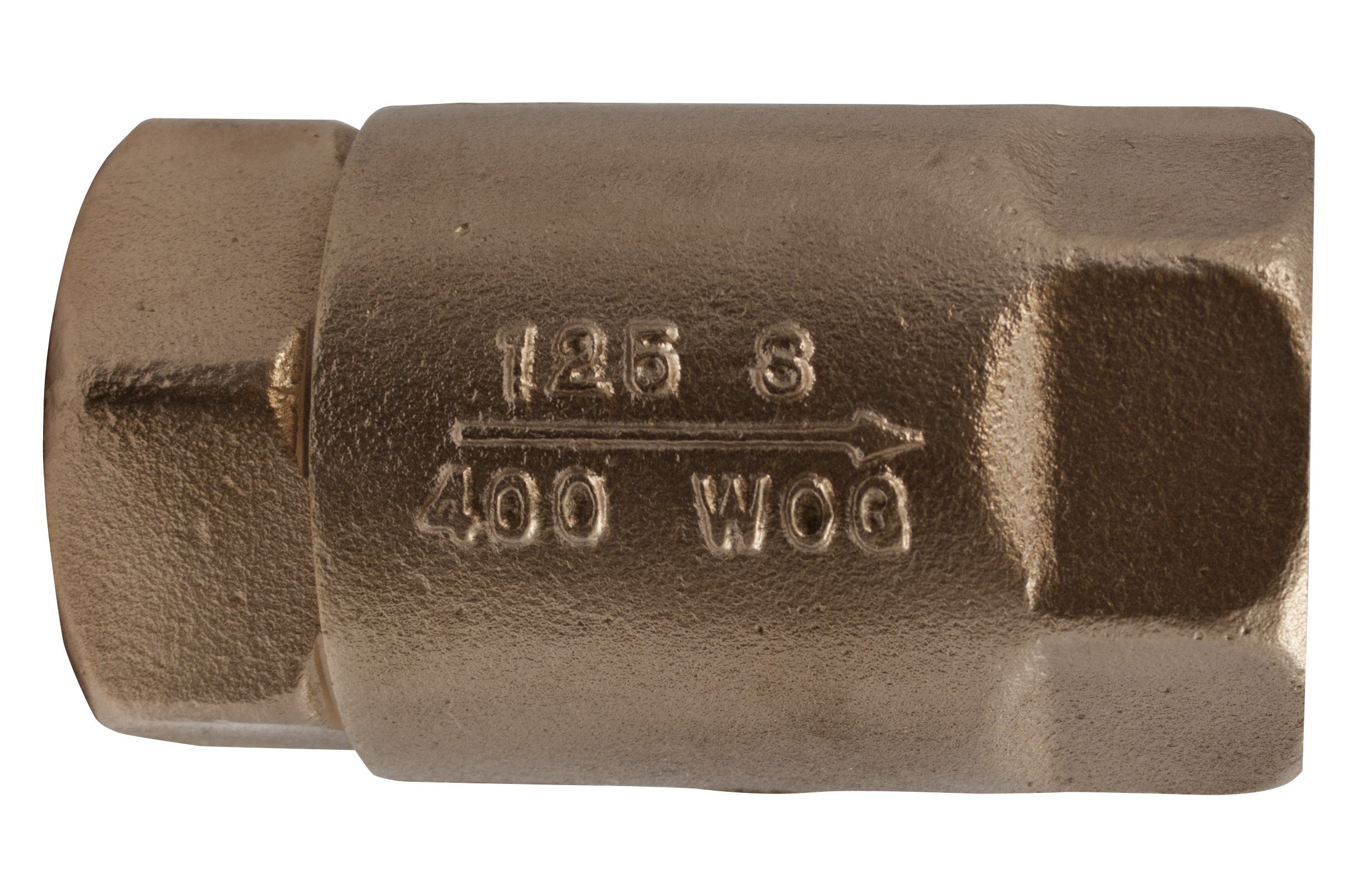

Apollo Valve 61LF-500 Series Bronze Lead Free Ball Cone Check Valve, In-Line, Soft Seat, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Bronze
Maximum Steam Pressure Description
125 pounds_per_square_inch
Brand Name
Apollo Valve
Manufacturer Series Number
61LF-500
Upper Temperature Range
350  Degrees Fahrenheit
Maximum Pressure
400  PSI
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141600
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 1 day 2 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Size name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
1/2" 1 B008QQHZOO yes $30.03 Buy Options
3/4" 1 B008QQI0XY yes $39.16 Buy Options
3/8" 1 B008QQHXZA yes $16.58 Buy Options

Key Features

  • Inline ball cone check valve for horizontal and vertical orientation with upward flow
  • Bronze for higher strength and corrosion resistance than brass
  • RPTFE ball cone provides chemical resistance
  • Female NPT threads for connecting to male threaded pipes
  • Lead free and complies with California's AB 1953 law

Product Description

The Apollo Valve 61LF-500 series Ball Cone check valve is a lead-free inline valve, and has a soft seat. The valve body and seat are made of bronze for higher resistance to corrosion than brass. Reinforced polytetrafluoroethylene (RPTFE) Ball Cone provides higher chemical resistance. It has female National Pipe Taper (NPT) threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum pressure rating is 400 pounds per square inch (psi), and the maximum steam pressure is 125 psi. The maximum temperature is 350 degrees Fahrenheit. This valve is lead free and complies with California's AB 1953 law for safe drinking water.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
