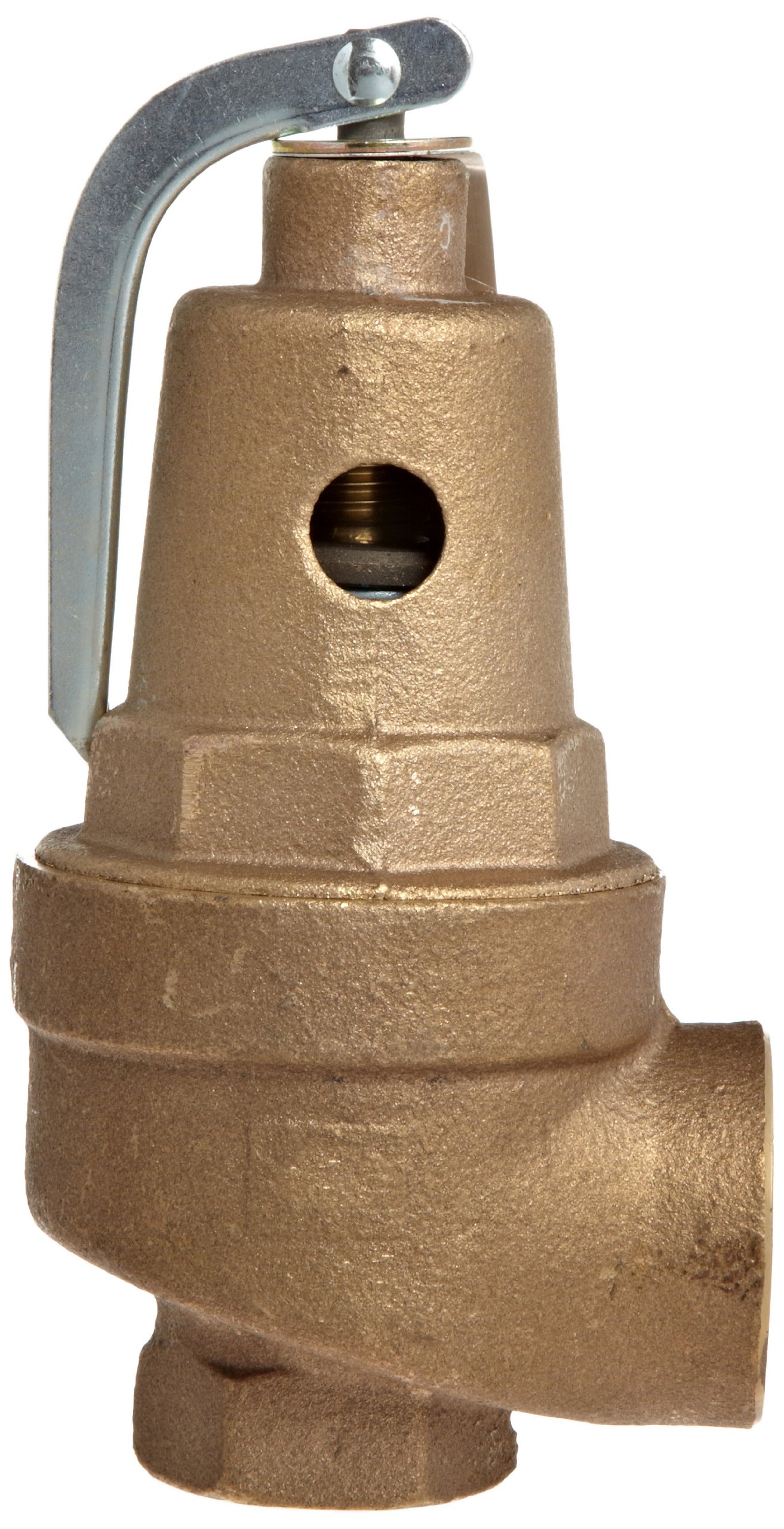

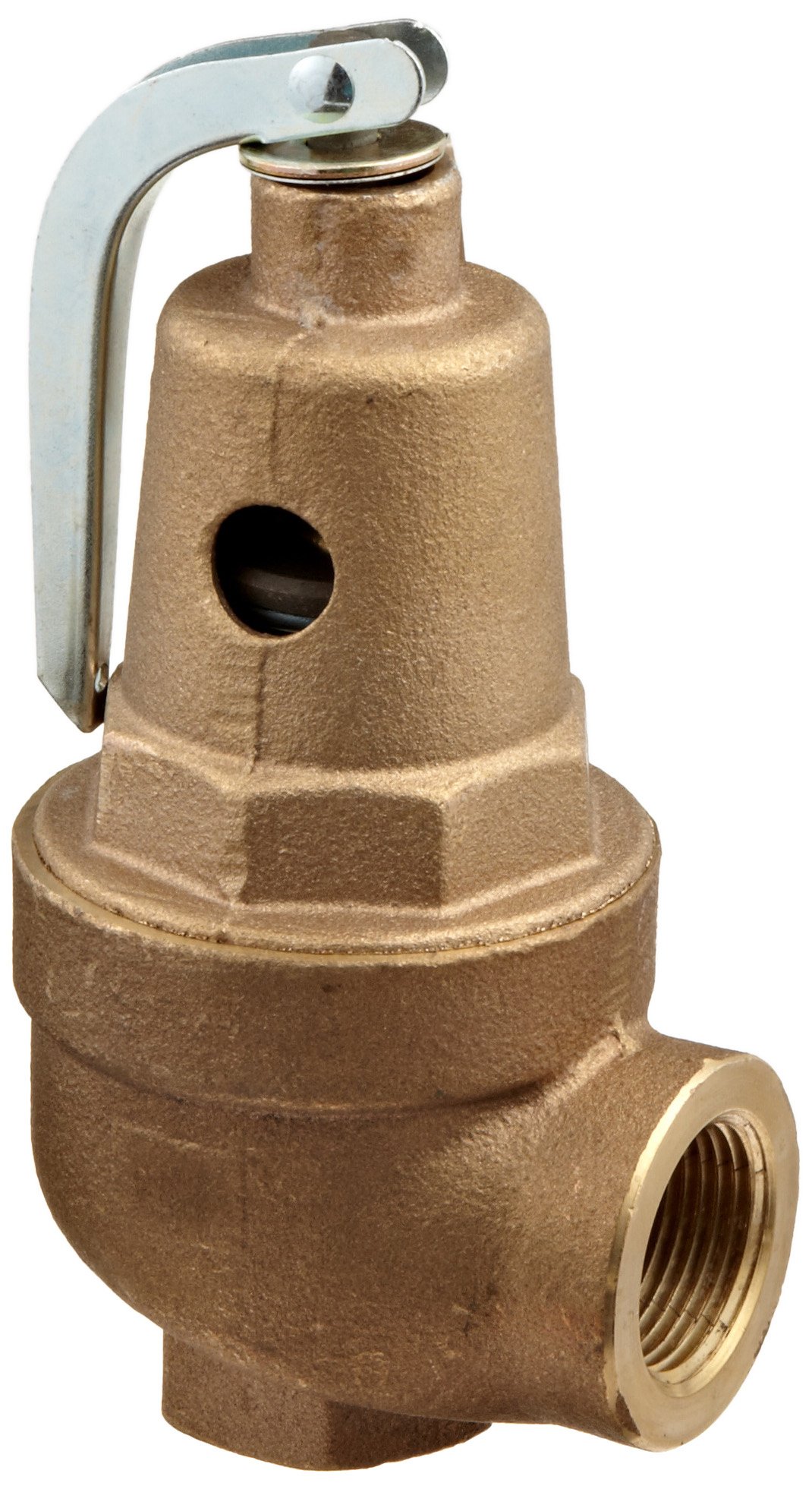

Apollo Valve 10-600 Series Bronze Safety Relief Valve, ASME Hot Water, 50 psi Set Pressure, 1" NPT Female

Be the first to review this item

ASIN B000R80MTO

Specifications for this item
Overall Height
6.7  inches
Item Shape
Elbow
Seat Material Type
Silicone
Part Number
1060510
Brand Name
Apollo Valve
Specification Met
ASME Section IV - Hot Water Heating and Supply Boilers
Style Name
Threaded
Number of Items
1
For Use With Product Type
Hot Water
Material Type
Bronze
UPC
670750878688
Size Name
1"
Manufacturer Series Number
10-600
EAN
0670750878688
Upper Temperature Range
250  Degrees Fahrenheit
Maximum Pressure
50  PSI
UNSPSC Code
40141606
Connector Type
NPT Female
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 10 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Relief pressure preset of 50 psi for releasing excess pressure
  • 1" female NPT threaded inlet for connecting to a male NPT threaded connection
  • Bronze body and spring cage for corrosion resistance
  • 250 degrees F maximum temperature for use in high-temperature applications
  • ASME safety rated for Section IV heating boilers

Package Details

Shipping Weight: 4.25 pounds
Package Size: 7.7 x 4.6 x 3.4 inches

Product Description

This Apollo Valve 10-600 series hot water relief valve protects against excessive water pressure due to failure of controls to regulate BTU input. It has a bronze body, a 50 pounds per square inch (psi) relief pressure, and a 1" female National Pipe Thread (NPT) inlet connection and 1" female NPT outlet. The valve's body and spring cage are bronze for resistance to corrosion. The seat is silicone for resistance to high temperatures and is elevated for draining water away from the seat area. The spring is steel for resistance to corrosion, and a fabric-reinforced, molded EPDM (ethylene propylene diene monomer) diaphragm isolates the spring from water at all times. The valve can be used in operating temperatures up to 250 degrees F. This relief valve is American Society of Mechanical Engineers (ASME) safety rated for Section IV heating boilers and is suitable for hot water heating boilers and hot water supply systems.

Relief valves remove excess pressure or vacuum from a system. The valve openings allow fluids or gases to escape to decrease pressure, and then close once the valve reaches the reseating pressure limit. They also relieve excess vacuum by opening to release a gas into the system and then closing after it reaches its low-pressure limit. Some relief valves have an adjustment mechanism to set the pressure where the valve opens, making it suitable for various applications. Relief valves are rated according to the volume of liquid or gas that can flow through them and the material that the valve is constructed from must be suitable for the fluid or gas, which may be corrosive or at an extreme temperature, in which it operates. Relief valves are used in a variety of applications, such as air compressors, petrochemical and chemical manufacturing, natural gas processing, and power generation.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC standard 17025:2005.
