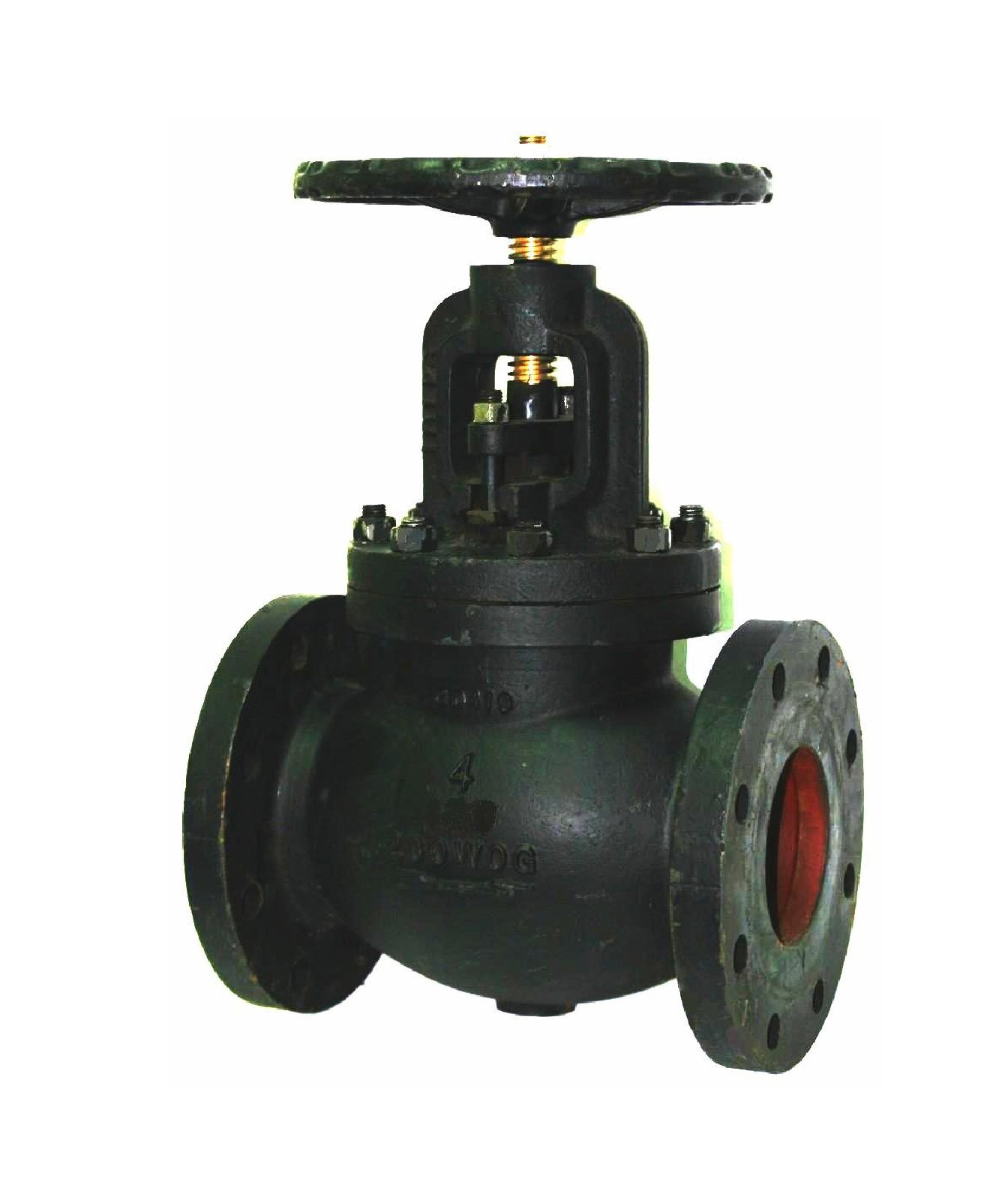

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 721F Series Cast Iron Globe Valve, Class 250, Inline, Bolted Bonnet, Flanged

Be the first to review this item

Product Specifications
Internal Packing Material Type
Graphite
Item Shape
Inline
Material Type
Cast Iron
Construction Type
Full Port
Operation Mode
Manual
Maximum Steam Pressure Description
250 pounds_per_square_inch
Brand Name
Apollo Valve
Manufacturer Series Number
721F Series
Upper Temperature Range
406  Degrees Fahrenheit
Specification Met
MSS SP-85
Maximum Pressure
500  PSI
Connector Type
Flanged
UNSPSC Code
40141611
Style Name
Flanged
System of Measurement
Inch
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 29? Order in-stock items in the next 15 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-5 of 5
2" 10.5" 6GB218B1 B006QPWWV8 Usually ships in 2 to 4 weeks $573.07 Buy Options
2-1/2" 11.5" 6GB219B1 B006QPWX30 yes $989.99 Buy Options
3" 12.5" 6GB210B1 B006QPWWJK yes $1,019.70 Buy Options
4" 14" 6GB21AB1 B006QPWVUA yes $1,502.81 Buy Options
6" 17.5" 6GB21CB1 B006QPWW7M yes $2,864.36 Buy Options

Key Features

  • Inline globe valve with rising stem and bolted bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Cast iron valve body and cast bronze seat for strength and corrosion resistance
  • 500 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 250 psig for steam working pressure (SWP)
  • Bolted bonnet for reduced risk of leakage
  • Flanged connections for bolting to pipes

Product Description

This class 125 Apollo 721F series inline cast iron globe valve has a bolted bonnet, rising stem, cast bronze seat, and flanged connections, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of cast iron for strength and corrosion resistance, and has a cast bronze seat. The valve’s maximum pressure is 500 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 250 psig for steam working pressure (SWP). It has a bolted bonnet for tight assembly and reduced risk of leakage, and flanged connections for bolting to pipes and greater ease of installation than welded connections. This class 250 valve meets standard Manufacturers Standardization Society (MSS) SP-85 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Conbraco Industries, Inc. manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices under the Apollo Valve brand. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard ISO/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
