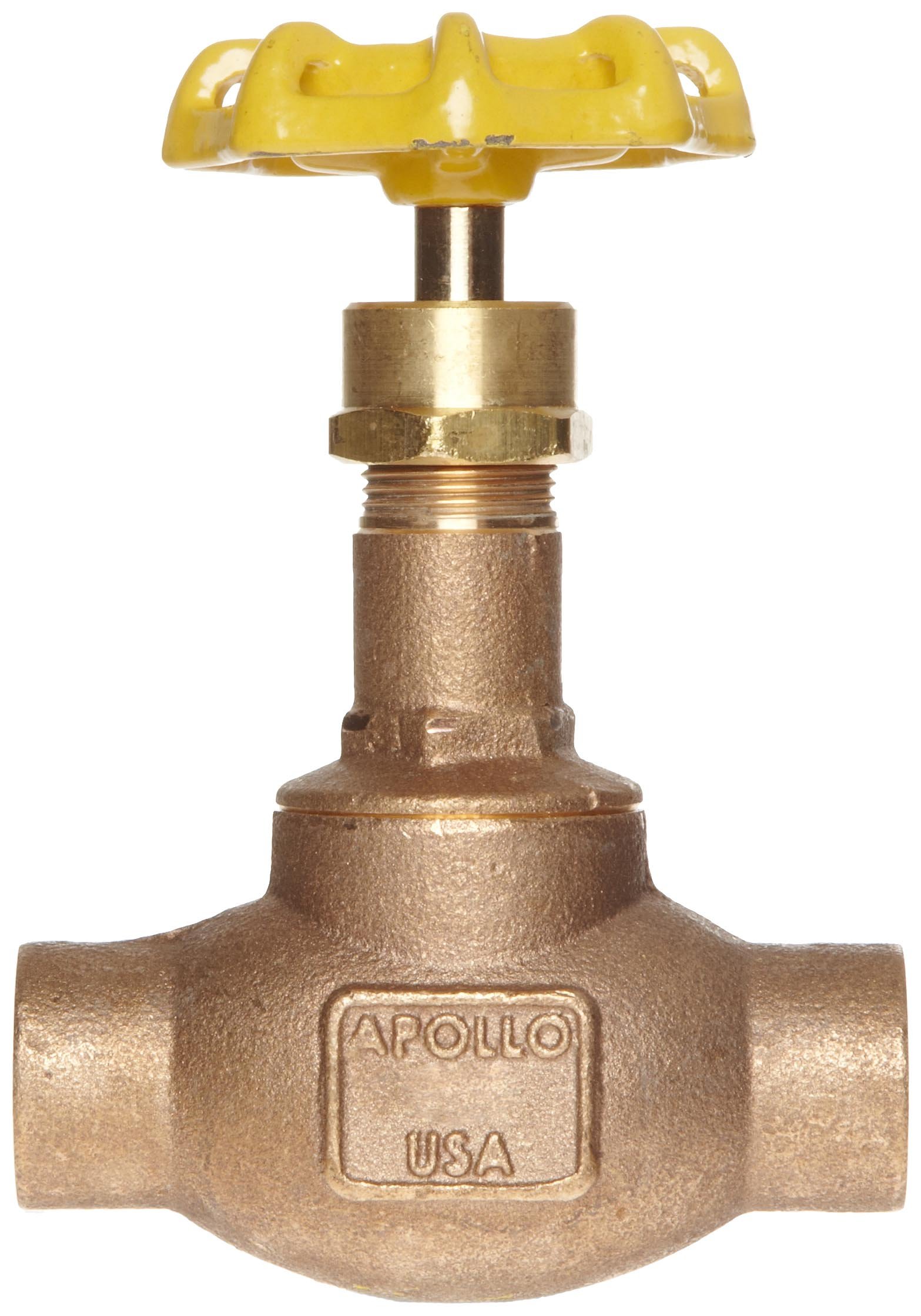

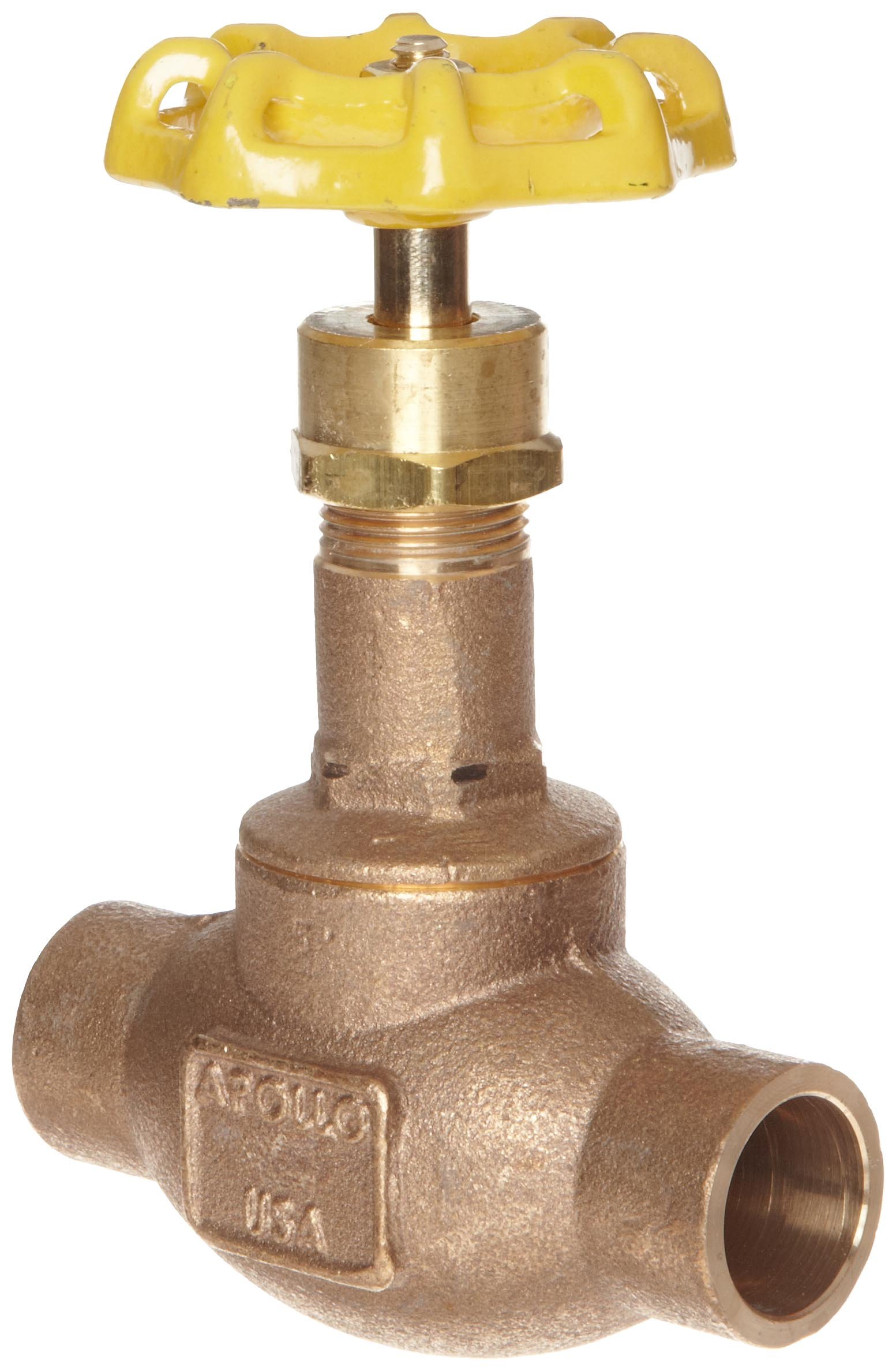

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 120S Series Bronze Globe Valve, Class 125, Inline, Threaded Bonnet, PTFE Seat, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
Grafoil
Item Shape
Inline
Seat Material Type
PTFE
Material Type
Bronze
Operation Mode
Manual
Maximum Steam Pressure Description
125 pounds_per_square_inch
Brand Name
Apollo Valve
Manufacturer Series Number
120S Series
Specification Met
MSS SP-80
Maximum Pressure
200  PSI
Connector Type
Solder End
UNSPSC Code
40141611
Style Name
Solder
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 4 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
1/2" 2.97" 3314301 B006QPW826 7 $44.48 Buy Options
3/4" 3.83" 3314401 B006QPW87Q 3 $62.22 Buy Options
1" 4.57" 3314501 B006QPW8C6 5 $82.90 Buy Options
1-1/4" 5.95" 3314601 B006QPW8JO 2 $116.64 Buy Options
1-1/2" 5.95" 3314701 B006QPW8OY 2 $145.71 Buy Options
2" 7.18" 3314801 B006QPW8VC 1 $220.04 Buy Options

Key Features

  • Inline globe valve with rising stem and threaded bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Bronze valve body and PTFE seat for strength and corrosion resistance
  • 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP)
  • Threaded bonnet for reduced risk of leakage
  • Solder end connections for semi-permanent connections to a piping system

Product Description

This class 125 Apollo 120S series inline bronze globe valve has a threaded bonnet, rising stem, polytetrafluoroethylene (PTFE seat), and solder end connections, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of American Society for Testing and Material (ASTM) B62 bronze for strength and corrosion resistance, and has a PTFE seat. The valve’s maximum pressure is 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP). It has a threaded bonnet for tight assembly and reduced risk of leakage, and solder end connections on both ends for a semi-permanent connection to a piping system. This class 125 valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Conbraco Industries, Inc. manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices under the Apollo Valve brand. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard ISO/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
