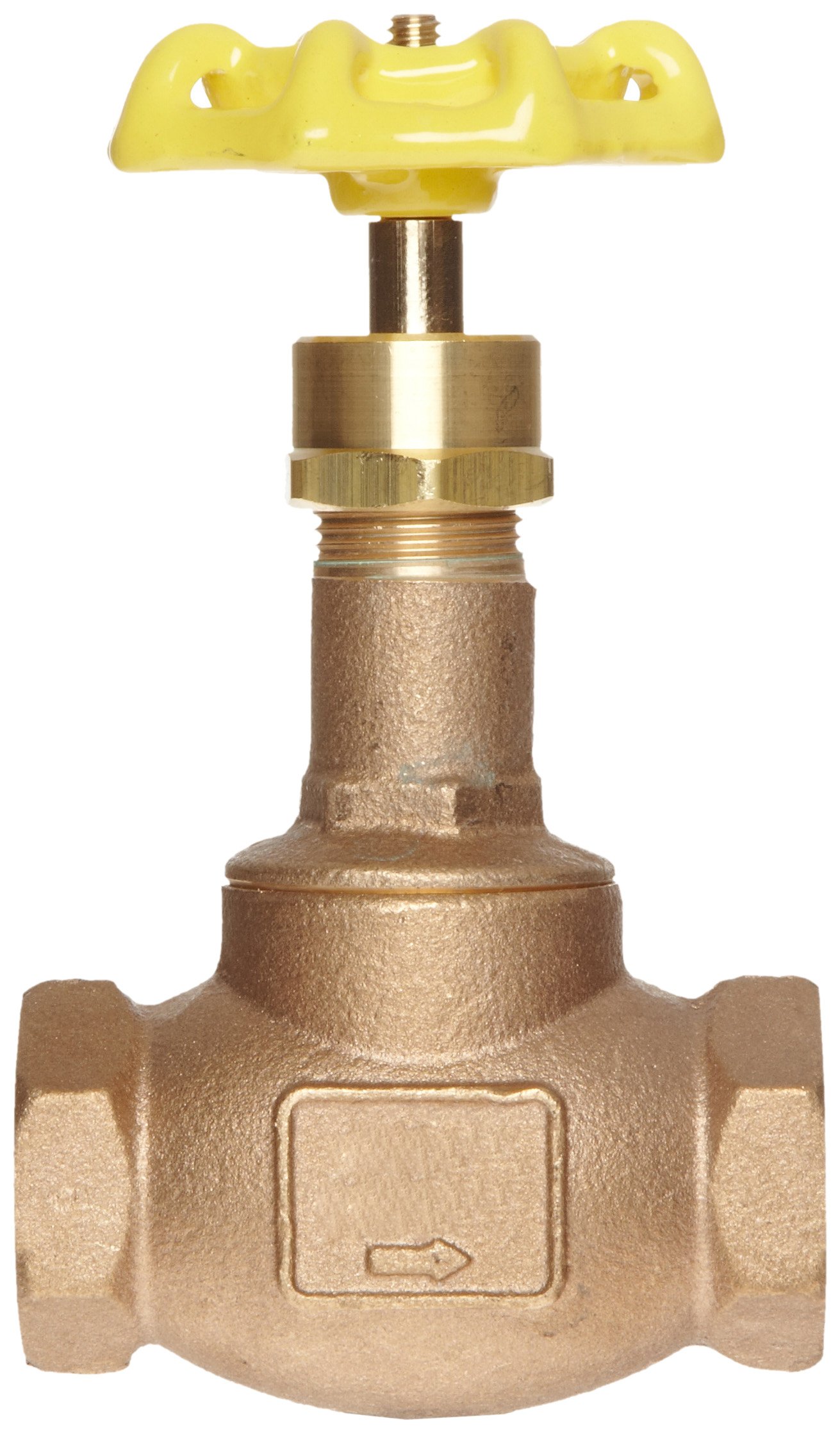

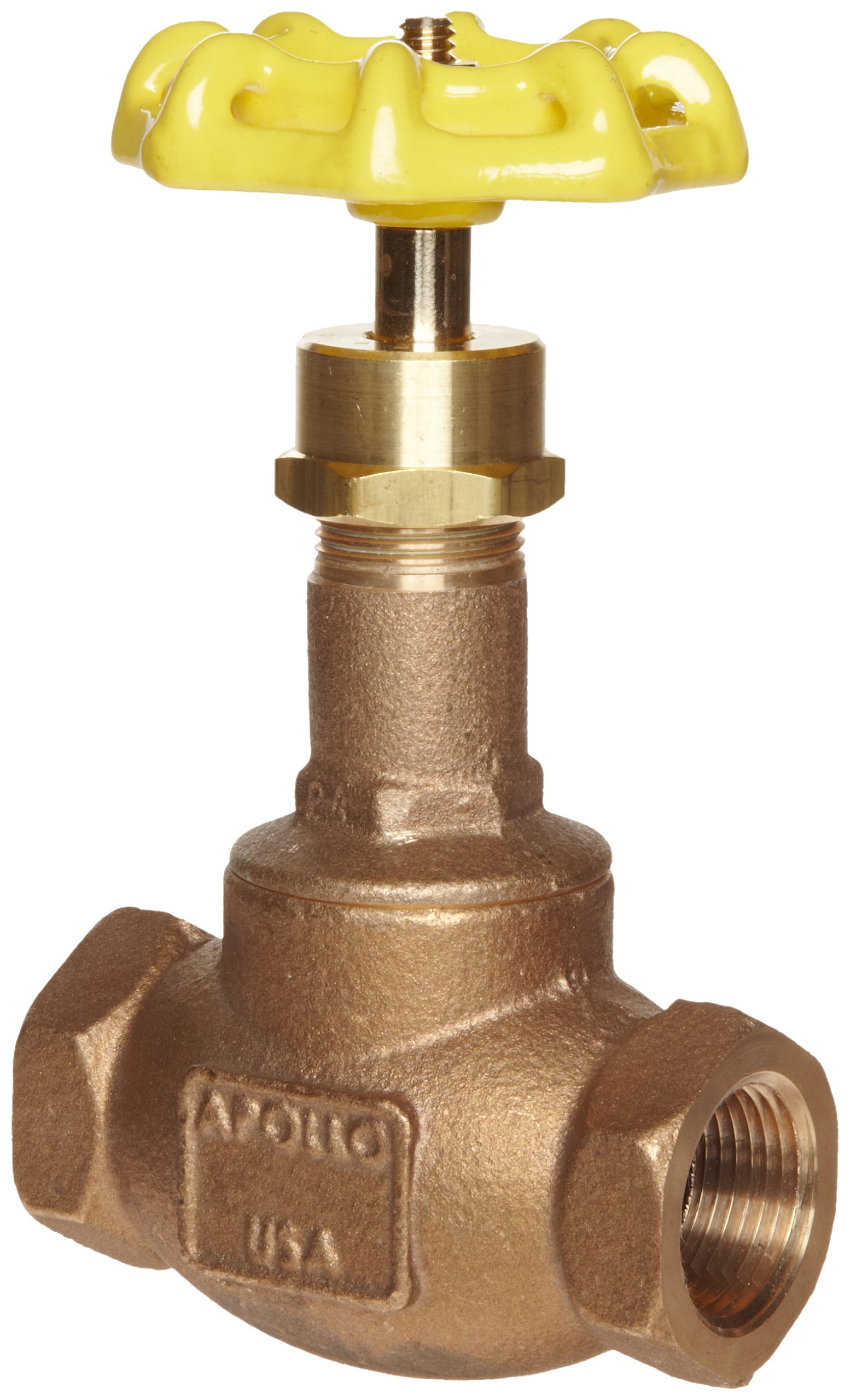

Apollo 120T Series Bronze Globe Valve, Class 125, Inline, Threaded Bonnet, PTFE Seat, NPT Female
Be the first to review this item
Product Specifications
- Brand Name
- Apollo Valve
- Connector Type
- NPT Female
- Internal Packing Material Type
- Grafoil
- Item Shape
- Inline
- Manufacturer Series Number
- 120T Series
- Material Type
- Bronze
- Maximum Pressure
- 200 PSI
- Maximum Steam Pressure Description
- 125 pounds_per_square_inch
- Operation Mode
- Manual
- Seat Material Type
- PTFE
- Specification Met
- MSS SP-80
- Style Name
- Threaded
- System of Measurement
- Inch
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 7 hours 36 minutes and choose One-Day Shipping at checkout.
Key Features
- Inline globe valve with rising stem and threaded bonnet for on/off actuation and flow control (throttling) in a pipeline
- Bronze valve body and PTFE seat for strength and corrosion resistance
- 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP)
- Threaded bonnet for reduced risk of leakage
- Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes
Product Description
This class 125 Apollo 120T series inline bronze globe valve has a threaded bonnet, rising stem, polytetrafluoroethylene (PTFE) seat, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of American Society for Testing and Material (ASTM) B62 bronze for strength and corrosion resistance, and has a PTFE seat. The valve’s maximum pressure is 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP). It has a threaded bonnet for tight assembly and reduced risk of leakage, and female NPT threads on both ends for connecting to male threaded pipes. This class 125 valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.
Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.
Conbraco Industries, Inc. manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices under the Apollo Valve brand. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard ISO/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
